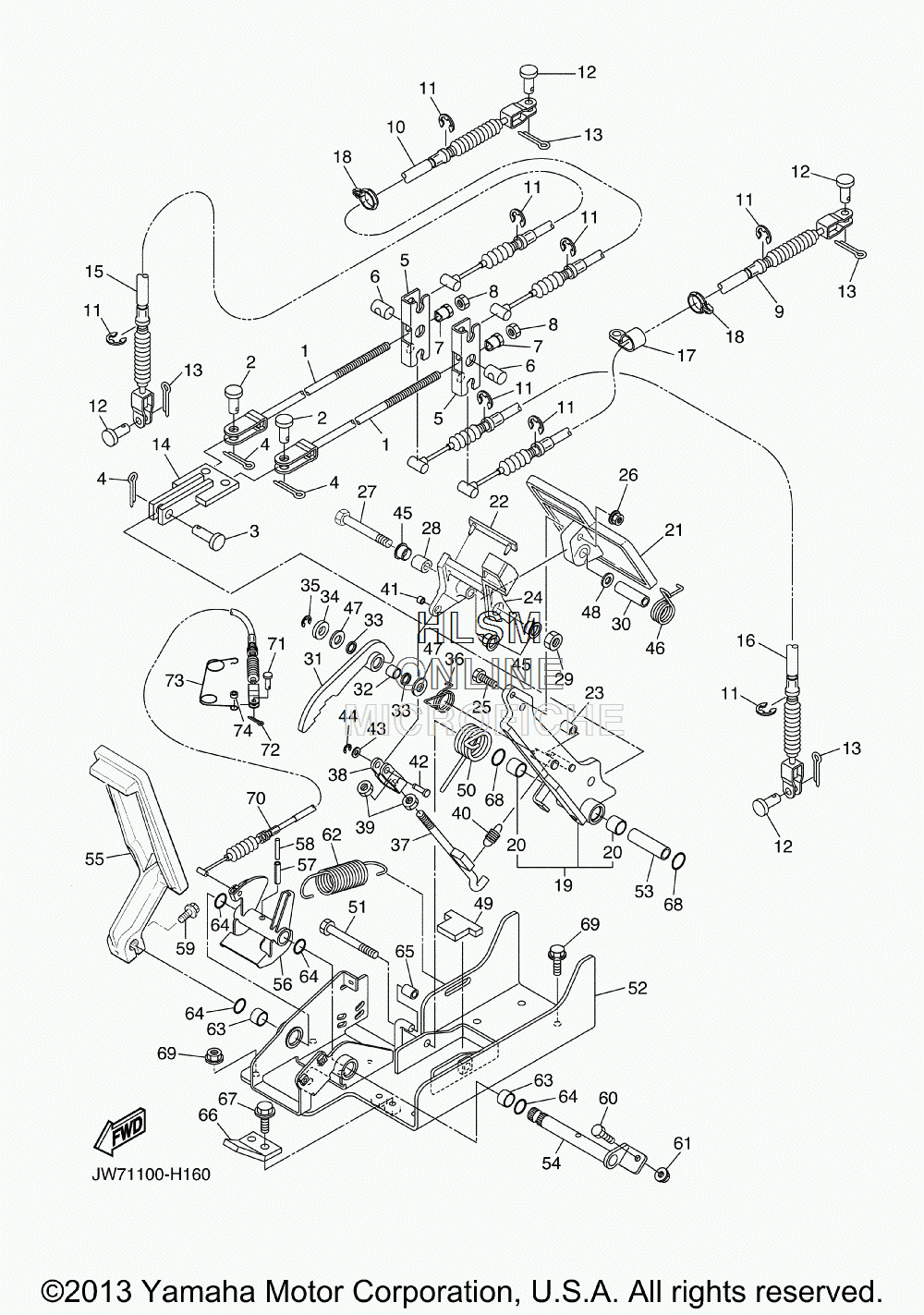

PEDAL ASSEMBLY для Yamaha GOLF CAR [YTF2] (JW71) - 2009 года выпуска
-
№АртикулНазвание
-
1JW7-F5685-00-00 RODROD
-
291702-10022-00 PIN, CLEVISPIN, CLEVIS
-
391702-10028-00 PIN, CLEVISPIN, CLEVIS
-
491490-30020-00 PIN. COTTERPIN. COTTER
-
5JX4-25681-00-00 EQUALIZER, BRAKEEQUALIZER, BRAKE
-
690249-14129-00 PINPIN
-
790179-08822-00 NUTNUT
-
895302-08700-00 NUTNUT
-
9JW7-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
10JW7-26351-00-00 CABLE, BRAKECABLE, BRAKE
-
1199002-09600-00 CLIPCLIP
-
1291702-08018-00 PIN, CLEVISPIN, CLEVIS
-
1391490-25020-00 PIN. COTTERPIN. COTTER
-
14JR6-F7215-01-00 LINKLINK
-
15JW7-26361-00-00 CABLE, BRAKECABLE, BRAKE
-
16JW7-26373-00-00 CABLE, BRAKE 4CABLE, BRAKE 4
-
1790461-08072-00 CLAMPCLAMP
-
1890464-19815-00 CLAMPCLAMP
-
19J46-27250-03-00 BRAKE ARM COMP.BRAKE ARM COMP.
-
2090384-14080-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
21JU0-27211-01-00 PEDAL, BRAKEPEDAL, BRAKE
-
22J17-25672-01-00 PAD, PARKING PEDALPAD, PARKING PEDAL
-
23J17-25673-00-00 DAMPER, BRAKEDAMPER, BRAKE
-
24JU0-25671-00-00 PEDAL, PARKING BRAKEPEDAL, PARKING BRAKE
-
2597022-06035-00 BOLTBOLT
-
2690179-07564-00 NUTNUT
-
2797022-08100-00 BOLTBOLT
-
2890387-08013-00 COLLARCOLLAR
-
2995302-08600-00 NUTNUT
-
3090387-08014-00 COLLARCOLLAR
-
31J17-25666-02-00 SECTOR, PARKING BRAKESECTOR, PARKING BRAKE
-
3290384-10162-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
33J17-27221-00-00 SEAL, SHAFTSEAL, SHAFT
-
3492902-10600-00 WASHER, PLATEWASHER, PLATE
-
3599002-07600-00 CLIPCLIP
-
3690508-14548-00 SPRING, TORSIONSPRING, TORSION
-
37J17-27231-03-00 ROD, BRAKEROD, BRAKE
-
38J17-27232-00-00 END, ROD 2END, ROD 2
-
3995302-06700-00 NUTNUT
-
4090506-09001-00 SPRING, TENSIONSPRING, TENSION
-
4190384-05163-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
42J17-27228-00-00 PIN, JOINTPIN, JOINT
-
4392902-05600-00 WASHER, PLATEWASHER, PLATE
-
4499002-04600-00 CIRCLIPCIRCLIP
-
4590387-12009-00 COLLARCOLLAR
-
4690508-32015-00 SPRING, TORSIONSPRING, TORSION
-
4790201-104G8-00 WASHER, PLATEWASHER, PLATE
-
4892902-08200-00 WASHERWASHER
-
49JW7-27245-00-00 PAD, BRAKE PEDALPAD, BRAKE PEDAL
-
5090508-40007-00 SPRING, TORSIONSPRING, TORSION
-
5190101-10447-00 BOLTBOLT
-
52JW7-27445-00-00 PLATE 1PLATE 1
-
5390387-107F8-00 COLLARCOLLAR
-
54J17-27853-01-00 SHAFT, PEDAL 1SHAFT, PEDAL 1
-
55J10-27871-01-00 PEDAL, ACCELERATORPEDAL, ACCELERATOR
-
56JW7-27872-00-00 ARM, ACCELERATOR PEDALARM, ACCELERATOR PEDAL
-
5791609-60028-00 PIN, SPRINGPIN, SPRING
-
5891609-35028-00 PIN, SPRINGPIN, SPRING
-
5995802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
6090106-08040-00 BOLTBOLT
-
6195702-08500-00 NUT, FLANGENUT, FLANGE
-
6290506-26282-00 SPRING, TENSIONSPRING, TENSION
-
6390384-14080-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
6493210-14104-00 O-RINGO-RING
-
65J17-25673-00-00 DAMPER, BRAKEDAMPER, BRAKE
-
66JW7-27246-00-00 NAIL, BRAKENAIL, BRAKE
-
6795802-08020-00 BOLT, FLANGEBOLT, FLANGE
-
6893210-132A8-00 O-RINGO-RING
-
6995812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
70JW7-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
7191702-05014-00 PIN, CLEVISPIN, CLEVIS
-
7290468-10049-00 CLIPCLIP
-
7390508-16460-00 SPRING, TORSIONSPRING, TORSION
-
7490560-05001-00 SPACERSPACER
