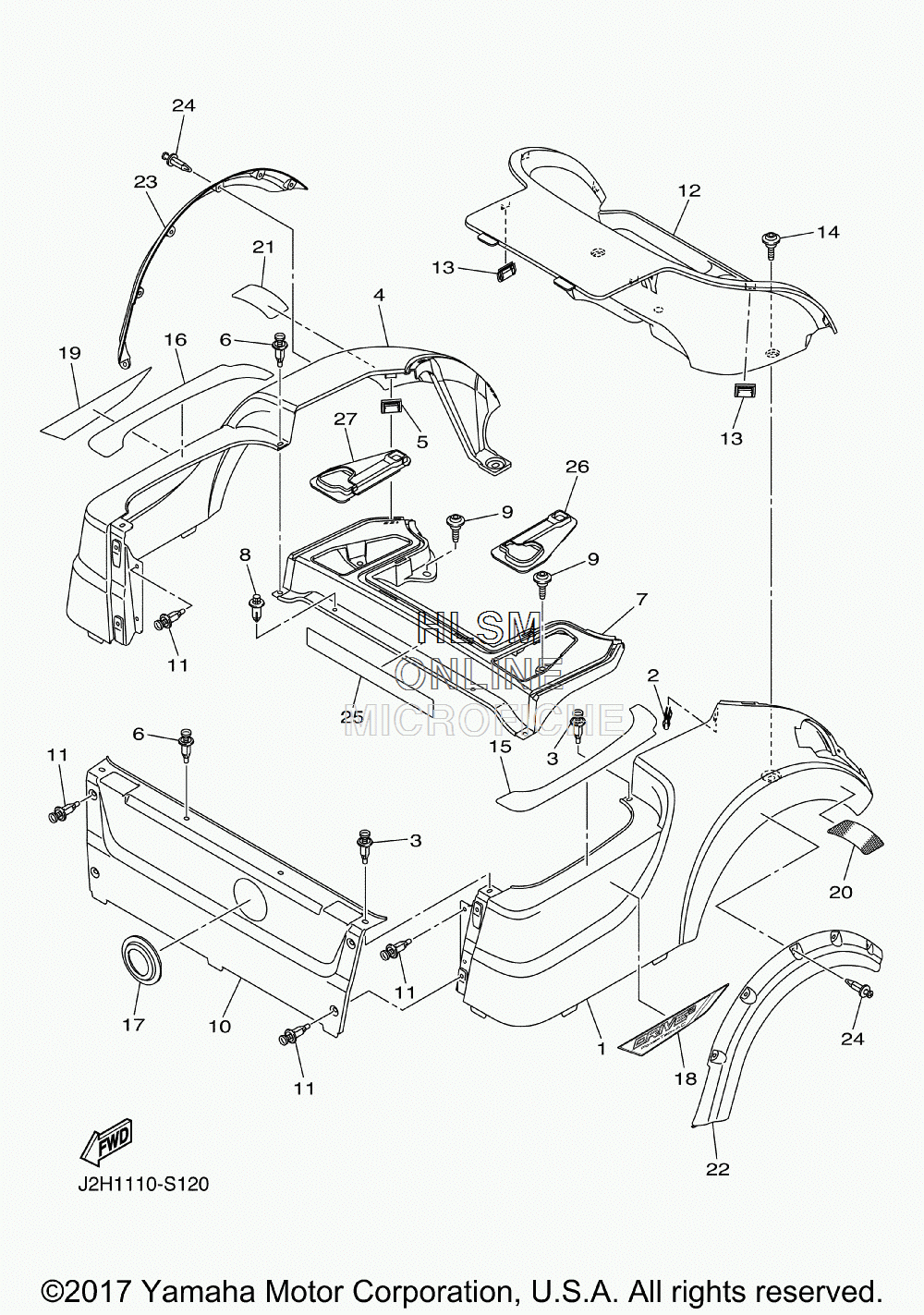

BODY 2 для Yamaha ADVENTURER SPORT 2 + 2 CAMP (DR2E17CAMP SERIAL: J0E-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0D-K8111-A0-00 PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)
-
1J0D-K8111-00-00 PANEL, BODY SHELL (FOR DNBME - GRAYISH BLUE)PANEL, BODY SHELL (FOR DNBME - GRAYISH BLUE)
-
1J0D-K8111-20-00 PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)
-
1J0D-K8111-30-00 PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)
-
1J0D-K8111-40-00 PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)
-
1J0D-K8111-70-00 PANEL, BODY SHELL (FOR DRMV - DEEP RED METALLIC)PANEL, BODY SHELL (FOR DRMV - DEEP RED METALLIC)
-
1J0D-K8111-80-00 PANEL, BODY SHELL (FOR BMG - BLACK METALLIC)PANEL, BODY SHELL (FOR BMG - BLACK METALLIC)
-
1J0D-K8111-90-00 PANEL, BODY SHELL (FOR VPBM6 - PURPLISH BLUE METALLIC)PANEL, BODY SHELL (FOR VPBM6 - PURPLISH BLUE METALLIC)
-
2J0B-F3447-00-00 CLIPCLIP
-
390269-07805-00 RIVETRIVET
-
4J0D-K8112-30-00 PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)
-
4J0D-K8112-A0-00 PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)
-
4J0D-K8112-00-00 PANEL, BODY SHELL (FOR DNBME - GRAYISH BLUE)PANEL, BODY SHELL (FOR DNBME - GRAYISH BLUE)
-
4J0D-K8112-90-00 PANEL, BODY SHELL (FOR VPBM6 - PURPLISH BLUE METALLIC)PANEL, BODY SHELL (FOR VPBM6 - PURPLISH BLUE METALLIC)
-
4J0D-K8112-80-00 PANEL, BODY SHELL (FOR BMG - BLACK METALLIC)PANEL, BODY SHELL (FOR BMG - BLACK METALLIC)
-
4J0D-K8112-70-00 PANEL, BODY SHELL (FOR DRMV - DEEP RED METALLIC)PANEL, BODY SHELL (FOR DRMV - DEEP RED METALLIC)
-
4J0D-K8112-40-00 PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)
-
4J0D-K8112-20-00 PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)
-
5J0B-F3447-00-00 CLIPCLIP
-
690269-07805-00 RIVETRIVET
-
7J0B-K819H-00-00 SHELL, REAR BODYSHELL, REAR BODY
-
8JW7-K7329-00-00 RIVETRIVET
-
9J0B-F1738-00-00 BOLTBOLT
-
10J0C-K8141-90-00 PANEL, INTERMEDIATE BODY (FOR VPBM6 - PURPLISH BLUE METALLIC)PANEL, INTERMEDIATE BODY (FOR VPBM6 - PURPLISH BLUE METALLIC)
-
10J0C-K8141-70-00 PANEL, INTERMEDIATE BODY (FOR DRMV - DEEP RED METALLIC)PANEL, INTERMEDIATE BODY (FOR DRMV - DEEP RED METALLIC)
-
10J0C-K8141-40-00 PANEL, INTERMEDIATE BODY (FOR DYNM2 - DARK YELLOWISH GRAY)PANEL, INTERMEDIATE BODY (FOR DYNM2 - DARK YELLOWISH GRAY)
-
10J0C-K8141-A0-00 PANEL, INTERMEDIATE BODY (FOR BW1 - BLUISH WHITE)PANEL, INTERMEDIATE BODY (FOR BW1 - BLUISH WHITE)
-
10J0C-K8141-80-00 PANEL, INTERMEDIATE BODY (FOR BMG - BLACK METALLIC)PANEL, INTERMEDIATE BODY (FOR BMG - BLACK METALLIC)
-
10J0C-K8141-00-00 PANEL, INTERMEDIATE BODY (FOR DNBME - GRAYISH BLUE)PANEL, INTERMEDIATE BODY (FOR DNBME - GRAYISH BLUE)
-
10J0C-K8141-20-00 PANEL, INTERMEDIATE BODY (FOR LNYM8 - CHAMPAGNE METALLIC)PANEL, INTERMEDIATE BODY (FOR LNYM8 - CHAMPAGNE METALLIC)
-
10J0C-K8141-30-00 PANEL, INTERMEDIATE BODY (FOR LNMP - SILVER METALLIC)PANEL, INTERMEDIATE BODY (FOR LNMP - SILVER METALLIC)
-
1190269-07805-00 RIVETRIVET
-
12J0B-K8237-02-00 COVER, REAR FLOORCOVER, REAR FLOOR
-
13J0B-F3447-00-00 CLIPCLIP
-
14J0B-F1738-00-00 BOLTBOLT
-
15J0B-F2873-01-00 SEAL 1SEAL 1
-
16J0B-F2874-01-00 SEAL 2SEAL 2
-
17J0C-K827A-00-00 GUIDE 1GUIDE 1
-
18J0E-F1781-10-00 EMBLEM 1 (ALL OTHER COLORS)EMBLEM 1 (ALL OTHER COLORS)
-
18J0E-F1781-00-00 EMBLEM 1 (FOR DYNM2 - DARK YELLOWISH GRAY) - DARK YELLOWISH GRAY)EMBLEM 1 (FOR DYNM2 - DARK YELLOWISH GRAY) - DARK YELLOWISH GRAY)
-
18J0E-F1781-00-00 EMBLEM 1 (FOR BMG - BLACK METALLIC) - BLACK METALLIC)EMBLEM 1 (FOR BMG - BLACK METALLIC) - BLACK METALLIC)
-
19J0E-F1782-00-00 EMBLEM 2 (FOR DYNM2 - DARK YELLOWISH GRAY) - DARK YELLOWISH GRAY)EMBLEM 2 (FOR DYNM2 - DARK YELLOWISH GRAY) - DARK YELLOWISH GRAY)
-
19J0E-F1782-00-00 EMBLEM 2 (FOR BMG - BLACK METALLIC) - BLACK METALLIC)EMBLEM 2 (FOR BMG - BLACK METALLIC) - BLACK METALLIC)
-
19J0E-F1782-10-00 EMBLEM 2 (ALL OTHER COLORS)EMBLEM 2 (ALL OTHER COLORS)
-
20J0D-H360G-00-00 REFLECTOR 3REFLECTOR 3
-
21J0D-H360H-00-00 REFLECTOR 4REFLECTOR 4
-
22J2G-F1559-00-00 FENDER, OVER 3FENDER, OVER 3
-
23J2G-F1560-00-00 FENDER, OVER 4FENDER, OVER 4
-
2490269-06800-00 RIVETRIVET
-
25JW9-K8297-01-00 PLATE, CAUTION 1PLATE, CAUTION 1
-
26J0B-K817H-10-00 TRIM, SIDE PANEL 1TRIM, SIDE PANEL 1
-
27J0B-K817J-10-00 TRIM, SIDE PANEL 2TRIM, SIDE PANEL 2
