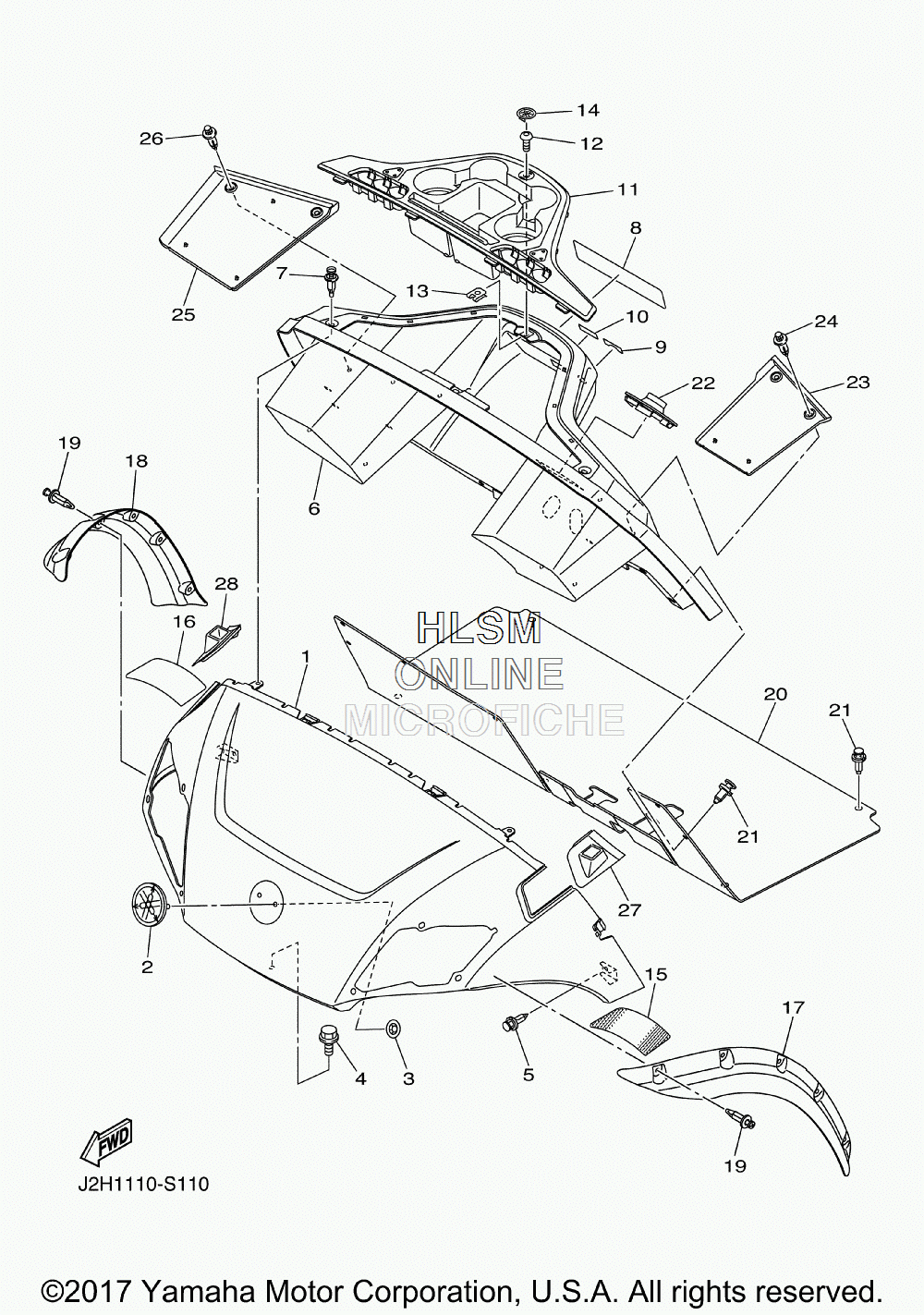

BODY для Yamaha ADVENTURER SPORT 2 + 2 CAMP (DR2E17CAMP SERIAL: J0E-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0D-K8115-A0-00 COWL, FRONT (FOR BW1 - BLUISH WHITE))COWL, FRONT (FOR BW1 - BLUISH WHITE))
-
1J0D-K8115-00-00 COWL, FRONT (FOR DNBME - GRAYISH BLUE)COWL, FRONT (FOR DNBME - GRAYISH BLUE)
-
1J0D-K8115-20-00 COWL, FRONT (FOR LNYM8 - CHAMPAGNE METALLIC)COWL, FRONT (FOR LNYM8 - CHAMPAGNE METALLIC)
-
1J0D-K8115-30-00 COWL, FRONT (FOR LNMP - SILVER METALLIC)COWL, FRONT (FOR LNMP - SILVER METALLIC)
-
1J0D-K8115-40-00 COWL, FRONT (FOR DYNM2 - DARK YELLOWISH GRAY)COWL, FRONT (FOR DYNM2 - DARK YELLOWISH GRAY)
-
1J0D-K8115-70-00 COWL, FRONT (FOR DRMV - DEEP RED METALLIC)COWL, FRONT (FOR DRMV - DEEP RED METALLIC)
-
1J0D-K8115-80-00 COWL, FRONT (FOR BMG - BLACK METALLIC)COWL, FRONT (FOR BMG - BLACK METALLIC)
-
1J0D-K8115-90-00 COWL, FRONT (FOR VPBM6 - PURPLISH BLUE METALLIC)COWL, FRONT (FOR VPBM6 - PURPLISH BLUE METALLIC)
-
2J0B-F4161-00-00 EMBLEM 1EMBLEM 1
-
3JU0-K7573-00-00 NUT, SPECIALNUT, SPECIAL
-
490105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
590269-06804-00 RIVETRIVET
-
6J0E-K8114-01-00 PANEL, FRONTPANEL, FRONT
-
790269-07805-00 RIVETRIVET
-
8J0B-K7768-00-00 LABEL, WARNING 8LABEL, WARNING 8
-
9J0D-K8282-00-00 PLATE, SWITCH PANELPLATE, SWITCH PANEL
-
10J0C-K7741-00-00 INDICATOR 1INDICATOR 1
-
11J0B-K835E-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
-
1290111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1390183-05008-00 NUT, SPRINGNUT, SPRING
-
14J0B-H2370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
15J0D-H333B-00-00 REFLECTOR 1REFLECTOR 1
-
16J0D-H334B-00-00 REFLECTOR, 2REFLECTOR, 2
-
17J2G-F1551-00-00 FENDER, OVERFENDER, OVER
-
18J2G-F1555-00-00 FENDER, OVER 2FENDER, OVER 2
-
1990269-06800-00 RIVETRIVET
-
20J0D-K8233-00-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
2190269-09003-00 RIVETRIVET
-
22J0B-K8273-02-00 COVER, HOLECOVER, HOLE
-
23J0B-K8243-00-00 MAT, REAR BODY SIDE (LEFT)MAT, REAR BODY SIDE (LEFT)
-
2490269-07805-00 RIVETRIVET
-
25J0B-K8244-00-00 MAT, REAR BODY SIDE (RIGHT)MAT, REAR BODY SIDE (RIGHT)
-
2690269-07805-00 RIVETRIVET
-
27J0B-K832F-10-00 GROMMET, ROOF SUPPORT 1GROMMET, ROOF SUPPORT 1
-
28J0B-K832G-10-00 GROMMET, ROOF SUPPORT 2GROMMET, ROOF SUPPORT 2
