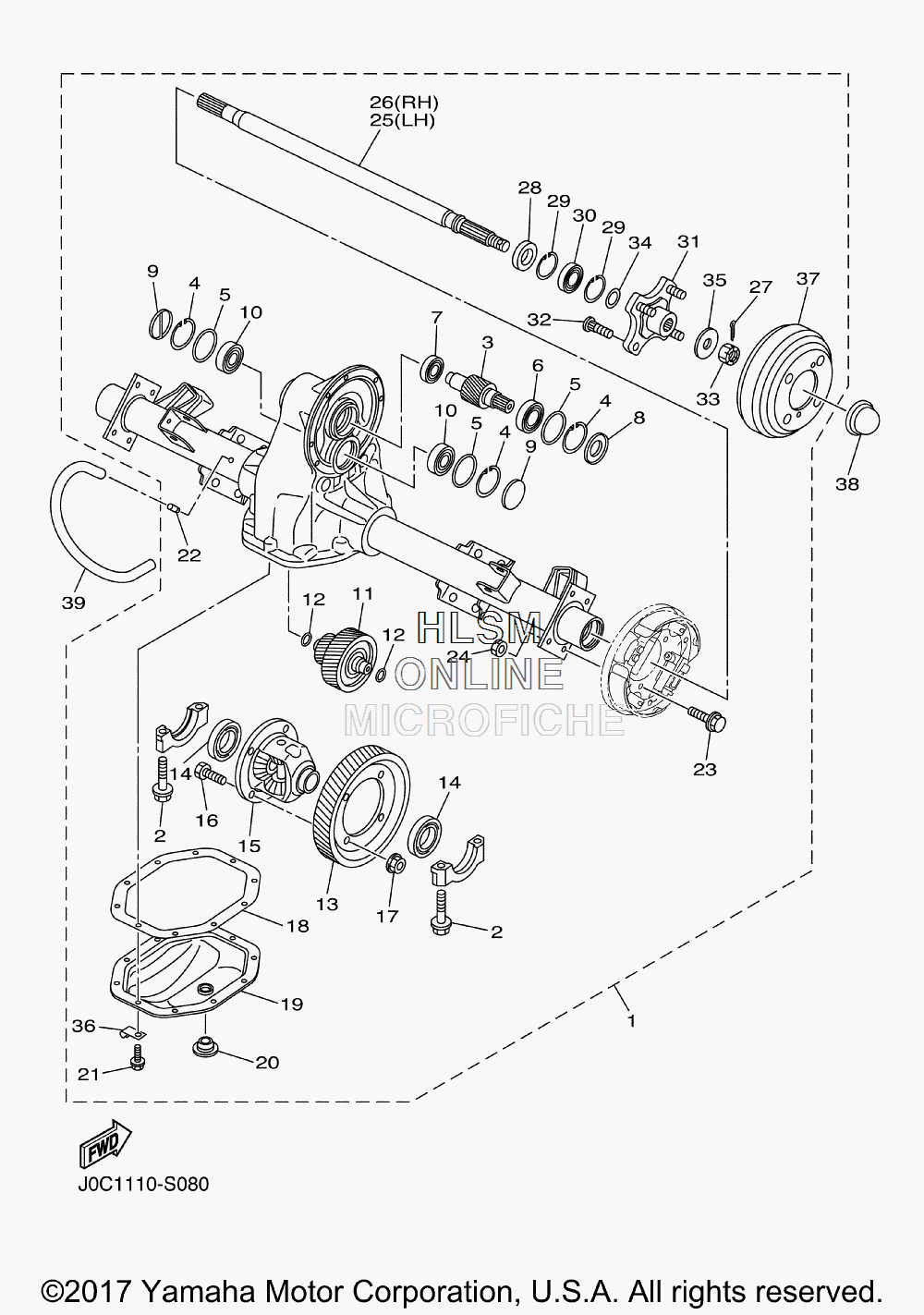

TRANSAXLE для Yamaha ADVENTURER SPORT 2 + 2 CAMP (DR2E17CAMP SERIAL: J0E-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0E-G6300-00-00 TRANS AXLE ASSYTRANS AXLE ASSY
-
290105-10840-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3JW9-G6321-00-00 ...SHAFT, INPUT...SHAFT, INPUT
-
493420-50804-00 ...CIRCLIP...CIRCLIP
-
593210-478B8-00 ...O-RING...O-RING
-
693306-005Y1-00 ...BEARING...BEARING
-
793306-203X1-00 ...BEARING...BEARING
-
8JW9-G6136-00-00 ...SEAL 1...SEAL 1
-
9JH7-G3396-01-00 ...PLUG, BLIND...PLUG, BLIND
-
1093306-303Y6-00 ...BEARING...BEARING
-
11JW9-G6350-00-00 ...COUNTER GEAR ASSY...COUNTER GEAR ASSY
-
1293210-148B9-00 ...O-RING...O-RING
-
13JW9-G6421-00-00 ...GEAR, RING...GEAR, RING
-
1493306-007Y0-00 ...BEARING...BEARING
-
15JW9-G6410-00-00 ...DIFFERENTIAL ASSY....DIFFERENTIAL ASSY.
-
1690101-10854-00 ...BOLT...BOLT
-
1790170-10840-00 ...NUT...NUT
-
18JW9-G631A-00-00 ...GSKT., CASE...GSKT., CASE
-
19JW9-G6312-00-00 ...CASE, TRANSMISSION 2...CASE, TRANSMISSION 2
-
20JN3-G6432-00-00 ...STOPPER...STOPPER
-
2190101-08856-00 ...BOLT...BOLT
-
22JW8-G5378-00-00 ...NIPPLE, HOSE...NIPPLE, HOSE
-
2390101-08855-00 ...BOLT...BOLT
-
2490170-08841-00 ...NUT...NUT
-
25JR1-G6511-00-00 ...SHAFT, REAR AXLE 1 (LEFT)...SHAFT, REAR AXLE 1 (LEFT)
-
26JR1-G6512-00-00 ...SHAFT, REAR AXLE 2 (RIGHT)...SHAFT, REAR AXLE 2 (RIGHT)
-
2791490-30030-00 ...PIN. COTTER...PIN. COTTER
-
2893101-24822-00 ...OIL SEAL...OIL SEAL
-
2993420-44805-00 ...CIRCLIP...CIRCLIP
-
3093306-00440-00 ...BEARING...BEARING
-
31JW8-G6514-00-00 ...HUB, REAR AXLE...HUB, REAR AXLE
-
32JW8-G4178-00-00 ...BOLT, STUD...BOLT, STUD
-
33JW8-G5244-00-00 ...NUT...NUT
-
34JW8-G2535-00-00 ...WASHER, THRUST...WASHER, THRUST
-
35JW8-G2536-00-00 ...WASHER, THRUST 2...WASHER, THRUST 2
-
36JW8-G2756-00-00 ...STAY, CLAMP...STAY, CLAMP
-
37JW3-G6521-00-00 ...DRUM...DRUM
-
38JW8-F5118-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
39JW8-G2541-00-00 PIPE 1PIPE 1
