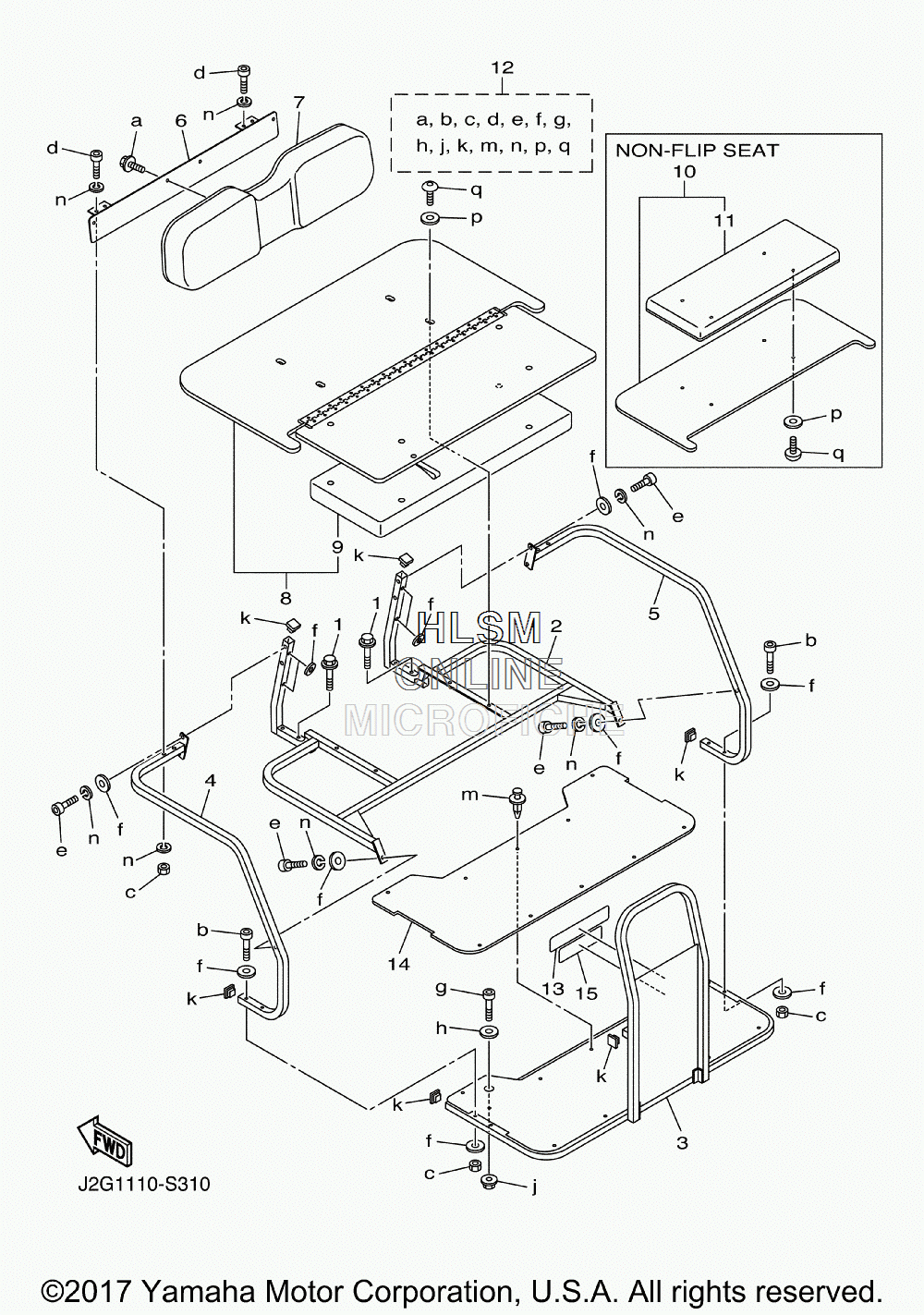

SEAT 2 для Yamaha ADVENTURER SPORT 2 + 2 CAMP (DR2E17CAMP SERIAL: J0E-000101) - 2017 года выпуска
-
№АртикулНазвание
-
190109-08002-00 BOLTBOLT
-
2J0B-K8460-00-00 SEAT FRAME COMP.SEAT FRAME COMP.
-
3J0B-K8477-00-00 FLOOR ASSEMBLYFLOOR ASSEMBLY
-
4J0B-K8473-00-00 HANDRAIL ASSEMBLY (LEFT HAND)HANDRAIL ASSEMBLY (LEFT HAND)
-
5J0B-K8474-00-00 HANDRAIL ASSEMBLY (RIGHT HAND)HANDRAIL ASSEMBLY (RIGHT HAND)
-
6J0B-K8432-00-00 BRACKET, SEAT SUPPORT 2BRACKET, SEAT SUPPORT 2
-
7J0B-K8402-00-00 SEAT SUB ASSY, BACKSEAT SUB ASSY, BACK
-
8J0B-K8480-10-00 SEAT BOTTOM COMPLETE 1 (BLACK)SEAT BOTTOM COMPLETE 1 (BLACK)
-
8J0B-K8480-00-00 SEAT BOTTOM COMPLETE 1 (BEIGE)SEAT BOTTOM COMPLETE 1 (BEIGE)
-
9J0B-K8406-10-00 ...REAR SEAT SUB-ASSY, CUSHION (BLACK)...REAR SEAT SUB-ASSY, CUSHION (BLACK)
-
9J0B-K8406-00-00 ...REAR SEAT SUB-ASSY, CUSHION (BEIGE)...REAR SEAT SUB-ASSY, CUSHION (BEIGE)
-
10J0B-K8490-10-00 SEAT BOTTOM COMP. ,2 (BLACK)SEAT BOTTOM COMP. ,2 (BLACK)
-
10J0B-K8490-00-00 SEAT BOTTOM COMP. ,2 (BEIGE)SEAT BOTTOM COMP. ,2 (BEIGE)
-
11J0B-K8406-10-00 ...REAR SEAT SUB-ASSY, CUSHION (BLACK)...REAR SEAT SUB-ASSY, CUSHION (BLACK)
-
11J0B-K8406-00-00 ...REAR SEAT SUB-ASSY, CUSHION (BEIGE)...REAR SEAT SUB-ASSY, CUSHION (BEIGE)
-
12J0B-F47E2-10-00 HARDWARE KIT, TANDEM SEAT (NON-FLIP SEAT)HARDWARE KIT, TANDEM SEAT (NON-FLIP SEAT)
-
12J0B-F47E2-00-00 HARDWARE KIT, TANDEM SEAT (FLIP SEAT)HARDWARE KIT, TANDEM SEAT (FLIP SEAT)
-
13J0B-K8483-00-00 LABEL WARNINGLABEL WARNING
-
14J0B-K8466-00-00 MAT, RUBBERMAT, RUBBER
-
15J0B-F1696-00-00 LABEL, CAUTIONLABEL, CAUTION
