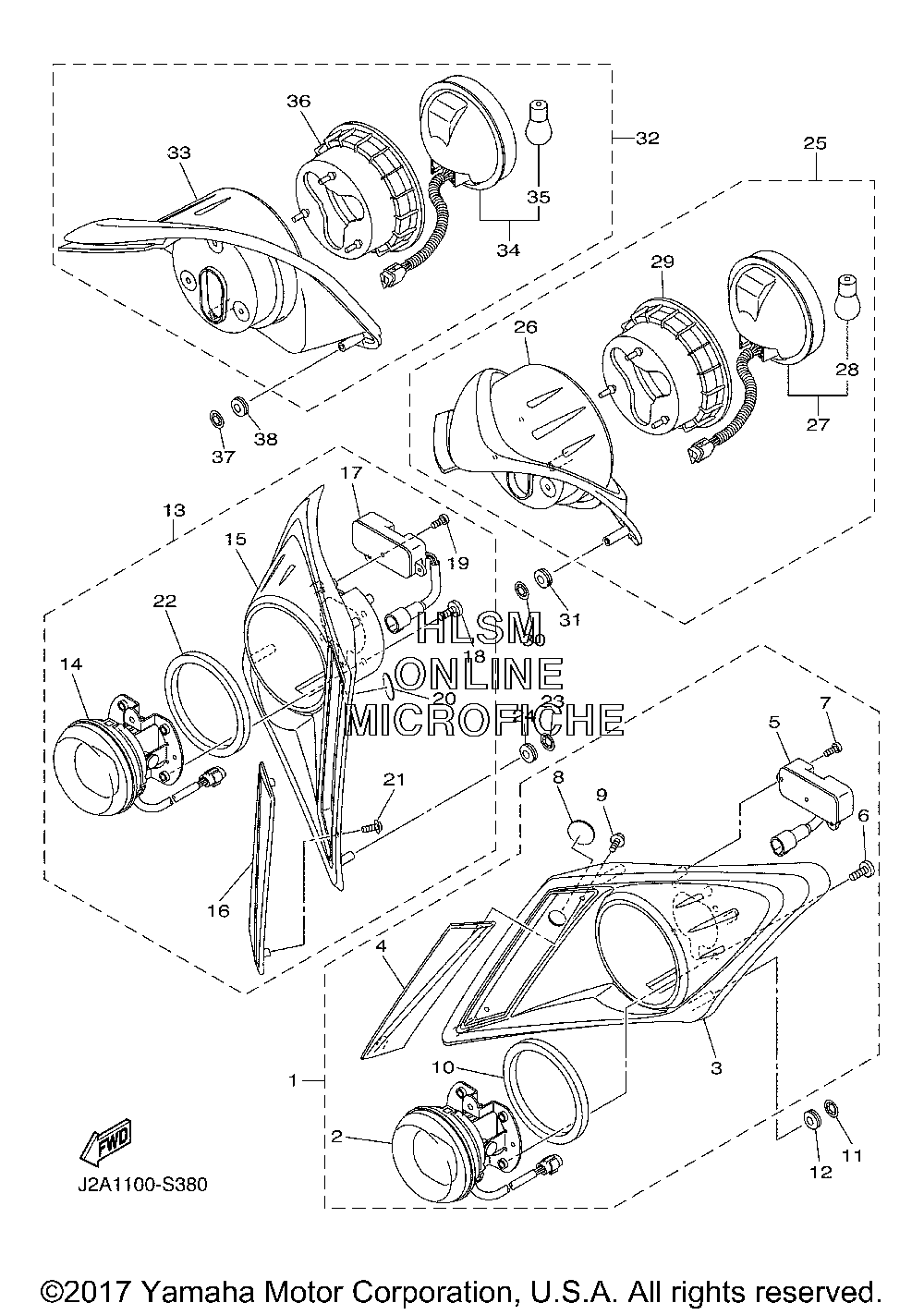

HEADLIGHT / TAIL LIGHT для Yamaha ADVENTURER SPORT 2 + 2 CAMP (DR2E17CAMP SERIAL: J0E-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0D-H4110-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
2J0D-H4300-00-00 ...HEADLIGHT ASSY...HEADLIGHT ASSY
-
3J0D-H411T-00-00 ...HOLDER, 1...HOLDER, 1
-
4J0D-H4385-00-00 ...CAP,1...CAP,1
-
5J0D-H5490-00-00 ...LIGHT CONTROL UNIT...LIGHT CONTROL UNIT
-
6J0D-H4526-00-00 ...SCREW...SCREW
-
7J0D-H4726-00-00 ...SCREW...SCREW
-
8J0D-H3547-00-00 ...COVER, SOCKET...COVER, SOCKET
-
9J0D-H4524-00-00 ...SCREW, LENS FITTING...SCREW, LENS FITTING
-
10J0D-H4195-00-00 ...RING, RETAINING...RING, RETAINING
-
1190183-08800-00 NUT, SPRINGNUT, SPRING
-
1290480-13016-00 GROMMETGROMMET
-
13J0D-H4170-00-00 HEAD LIGHT UNIT ASSYHEAD LIGHT UNIT ASSY
-
14J0D-H4300-00-00 ...HEADLIGHT ASSY...HEADLIGHT ASSY
-
15J0D-H411U-00-00 ...HOLDER, 2...HOLDER, 2
-
16J0D-H4386-00-00 ...CAP,2...CAP,2
-
17J0D-H5490-00-00 ...LIGHT CONTROL UNIT...LIGHT CONTROL UNIT
-
18J0D-H4526-00-00 ...SCREW...SCREW
-
19J0D-H4726-00-00 ...SCREW...SCREW
-
20J0D-H3547-00-00 ...COVER, SOCKET...COVER, SOCKET
-
21J0D-H4524-00-00 ...SCREW, LENS FITTING...SCREW, LENS FITTING
-
22J0D-H4195-00-00 ...RING, RETAINING...RING, RETAINING
-
2390183-08800-00 NUT, SPRINGNUT, SPRING
-
2490480-13016-00 GROMMETGROMMET
-
25J0D-H4710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
26J0D-H431U-00-00 ...HOLDER...HOLDER
-
27J0D-H4700-00-00 ...TAILLIGHT ASSY...TAILLIGHT ASSY
-
28JC0-H4514-00-00 ......BULB (12V-7W/27W)......BULB (12V-7W/27W)
-
29J0D-H4718-00-00 ...GROMMET...GROMMET
-
3090183-08800-00 NUT, SPRINGNUT, SPRING
-
3190480-13016-00 GROMMETGROMMET
-
32J0D-H4730-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
33J0D-H4387-00-00 ...HOLDER...HOLDER
-
34J0D-H4700-00-00 ...TAILLIGHT ASSY...TAILLIGHT ASSY
-
35JC0-H4514-00-00 ......BULB (12V-7W/27W)......BULB (12V-7W/27W)
-
36J0D-H4718-00-00 ...GROMMET...GROMMET
-
3790183-08800-00 NUT, SPRINGNUT, SPRING
-
3890480-13016-00 GROMMETGROMMET
