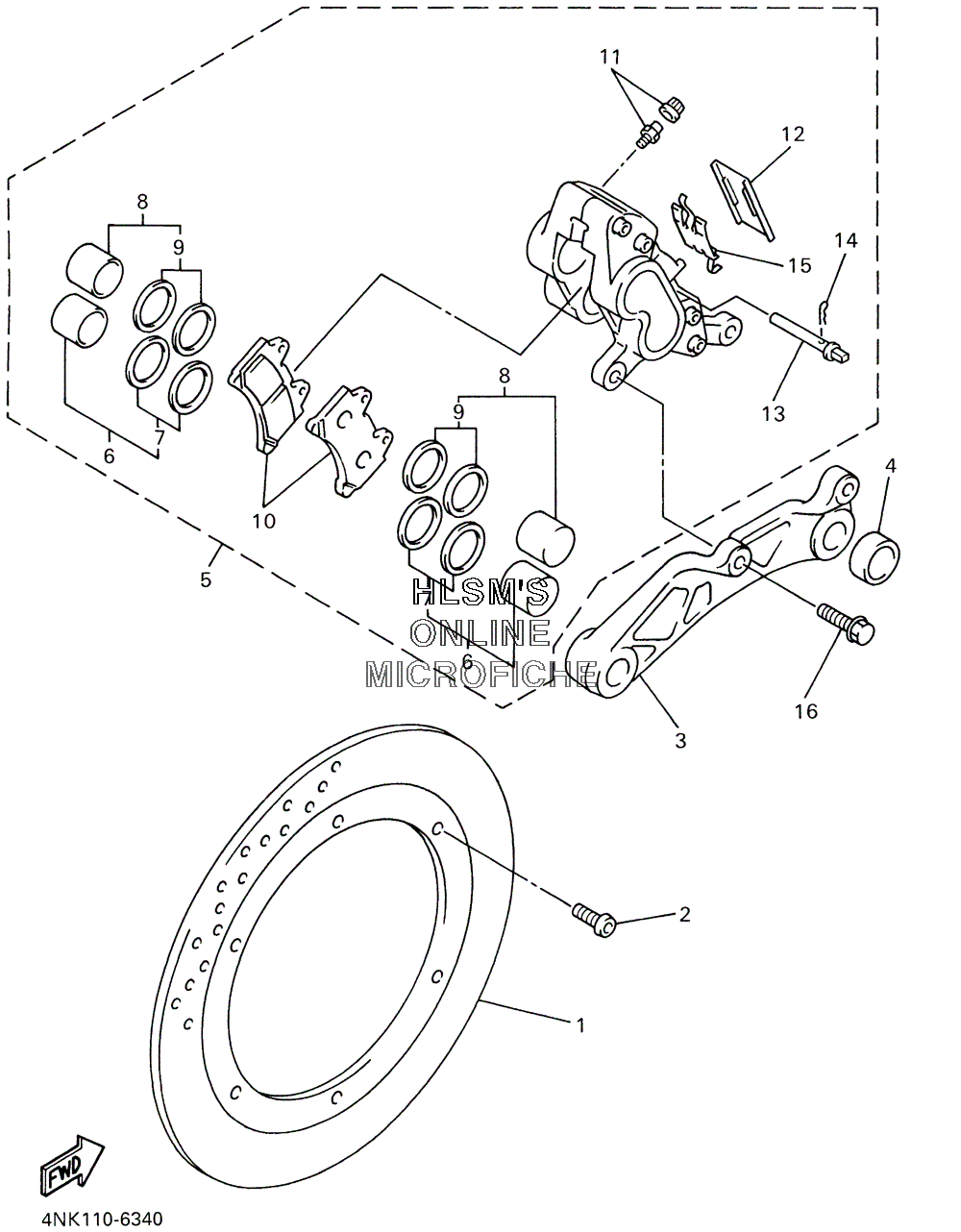

BRAKE - REAR CALIPER для Yamaha XVZ 1300 AN ROYAL STAR BOULEVARD CALIFORNIA - 2001 года выпуска
-
№АртикулНазвание
-
14NK-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-083G4-00 BOLTBOLT
-
34NK-25819-00-00 BRACKET, CALIPERBRACKET, CALIPER
-
44NK-25673-00-00 DAMPER, BRAKEDAMPER, BRAKE
-
54NK-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
61KT-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
71KT-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
84NK-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
94NK-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
104NK-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
111J3-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
121NL-25836-00-00 ...COVER, DUST...COVER, DUST
-
133HE-25924-00-00 ...PIN, PAD...PIN, PAD
-
143GM-25925-00-00 ...CLIP...CLIP
-
151NL-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
1690105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
