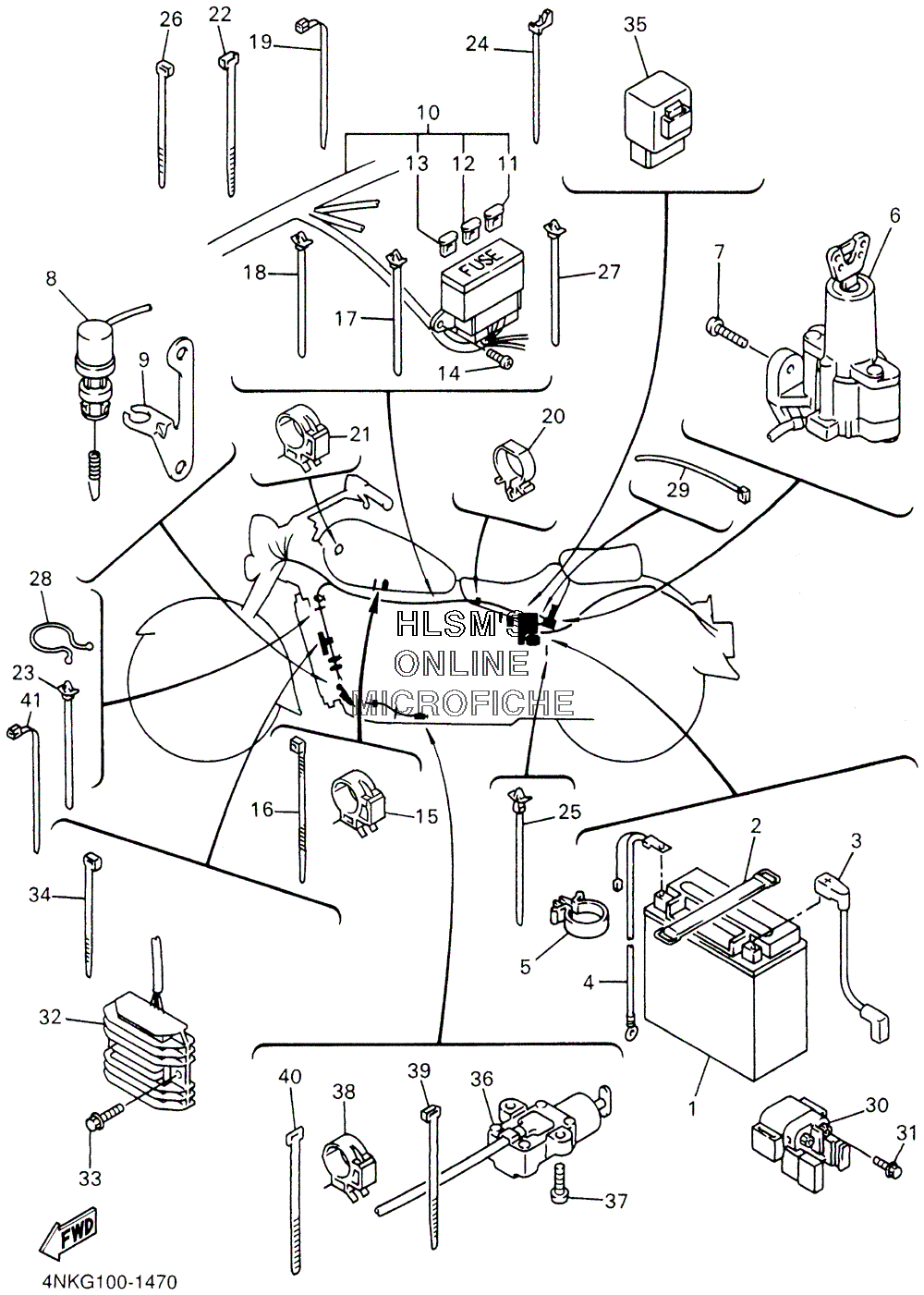

ELECTRICAL для Yamaha XVZ 1300 AN ROYAL STAR BOULEVARD CALIFORNIA - 2001 года выпуска
-
№АртикулНазвание
-
14SH-82100-21-00 BATTERY ASSY (YTX20L-BS)BATTERY ASSY (YTX20L-BS)
-
2120-82131-00-00 BAND, BATTERYBAND, BATTERY
-
34NK-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
44NK-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
590464-13133-00 CLAMPCLAMP
-
64NK-82510-01-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
790149-06308-00 SCREWSCREW
-
84NK-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
94NK-82539-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
104NK-82590-30-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
1142X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
1236Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
131NL-82151-00-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
1498907-06012-00 SCREW, BINDSCREW, BIND
-
1590464-20191-00 CLAMPCLAMP
-
1690465-10098-00 CLAMPCLAMP
-
1790464-12089-00 CLAMPCLAMP
-
1890464-12089-00 CLAMPCLAMP
-
1990464-13073-00 CLAMPCLAMP
-
2090464-24230-00 CLAMPCLAMP
-
2190464-10190-00 CLAMPCLAMP
-
221UA-82591-00-00 BANDBAND
-
2390464-12089-00 CLAMPCLAMP
-
2490464-15200-00 CLAMPCLAMP
-
2590464-10112-00 CLAMPCLAMP
-
2690464-16061-00 CLAMPCLAMP
-
2790464-12036-00 CLAMPCLAMP
-
2890464-30040-00 CLAMPCLAMP
-
2990464-16061-00 CLAMPCLAMP
-
304BH-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
3195027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
323LS-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
3395807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3490464-12045-00 CLAMPCLAMP
-
353EN-81950-00-00 RELAY ASSYRELAY ASSY
-
363LD-82566-50-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
3790157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3890464-10190-00 CLAMPCLAMP
-
391UA-82591-00-00 BANDBAND
-
4090464-12045-00 CLAMPCLAMP
-
4190464-13073-00 CLAMPCLAMP
