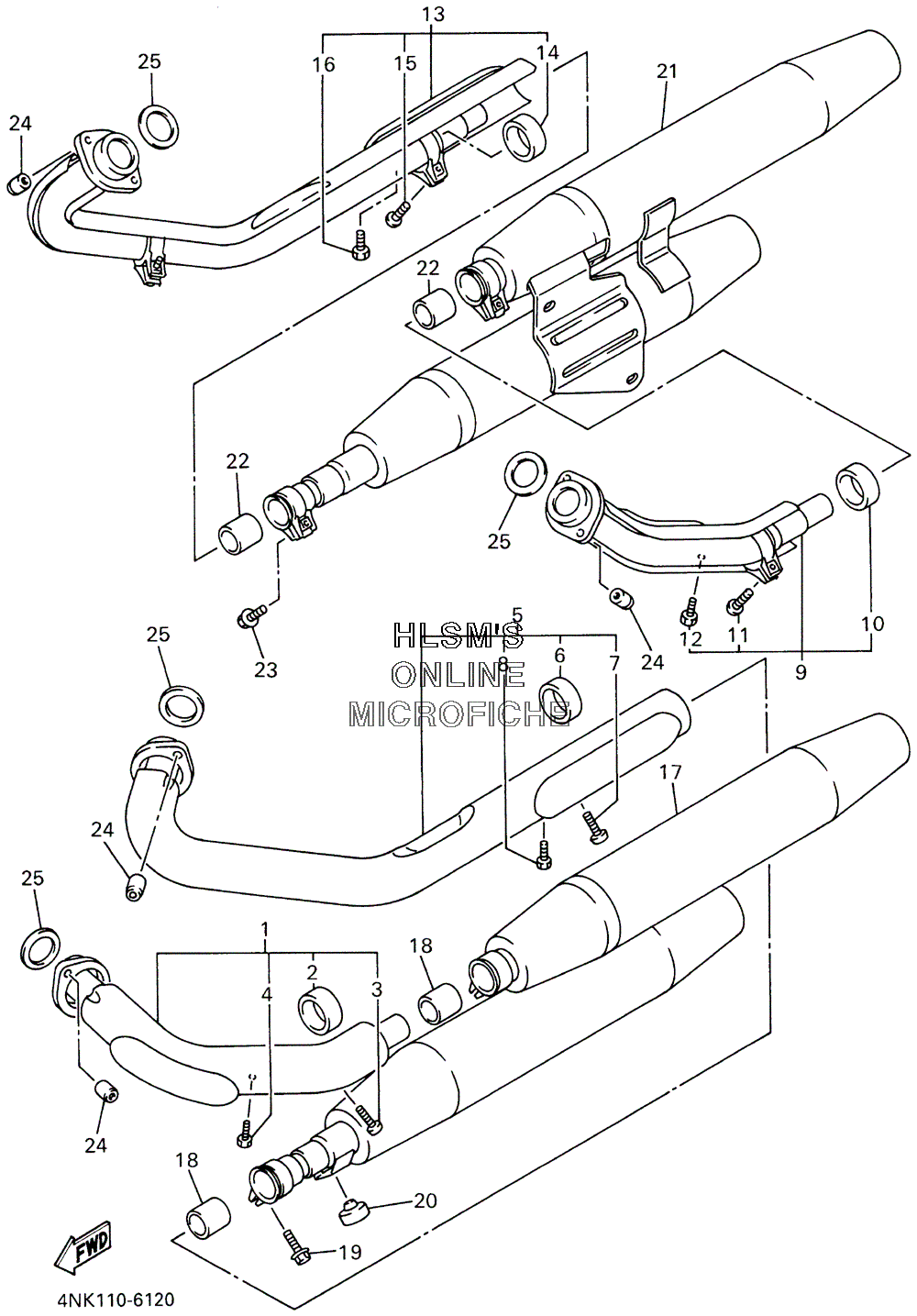

EXHAUST для Yamaha XVZ 1300 AN ROYAL STAR BOULEVARD CALIFORNIA - 2001 года выпуска
-
№АртикулНазвание
-
14NK-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
24NK-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
392017-08020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
497080-06008-00 ...BOLT...BOLT
-
54NK-14620-00-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
64NK-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
792017-08025-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
897080-06008-00 ...BOLT...BOLT
-
94NK-14630-00-00 EXHAUST PIPE ASSY 3EXHAUST PIPE ASSY 3
-
104NK-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
1192017-08020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1297080-06008-00 ...BOLT...BOLT
-
134NK-14650-00-00 EXHAUST PIPE ASSY 4EXHAUST PIPE ASSY 4
-
144NK-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
1592017-08025-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1697080-06008-00 ...BOLT...BOLT
-
174NK-14703-01-00 MUFFLER COMP. 1MUFFLER COMP. 1
-
184BH-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
1995027-08020-00 BOLT, FLANGEBOLT, FLANGE
-
20116-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
214NK-14704-01-00 MUFFLER COMP. 2MUFFLER COMP. 2
-
224BH-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
2395027-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2490179-08442-00 NUTNUT
-
253GD-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
