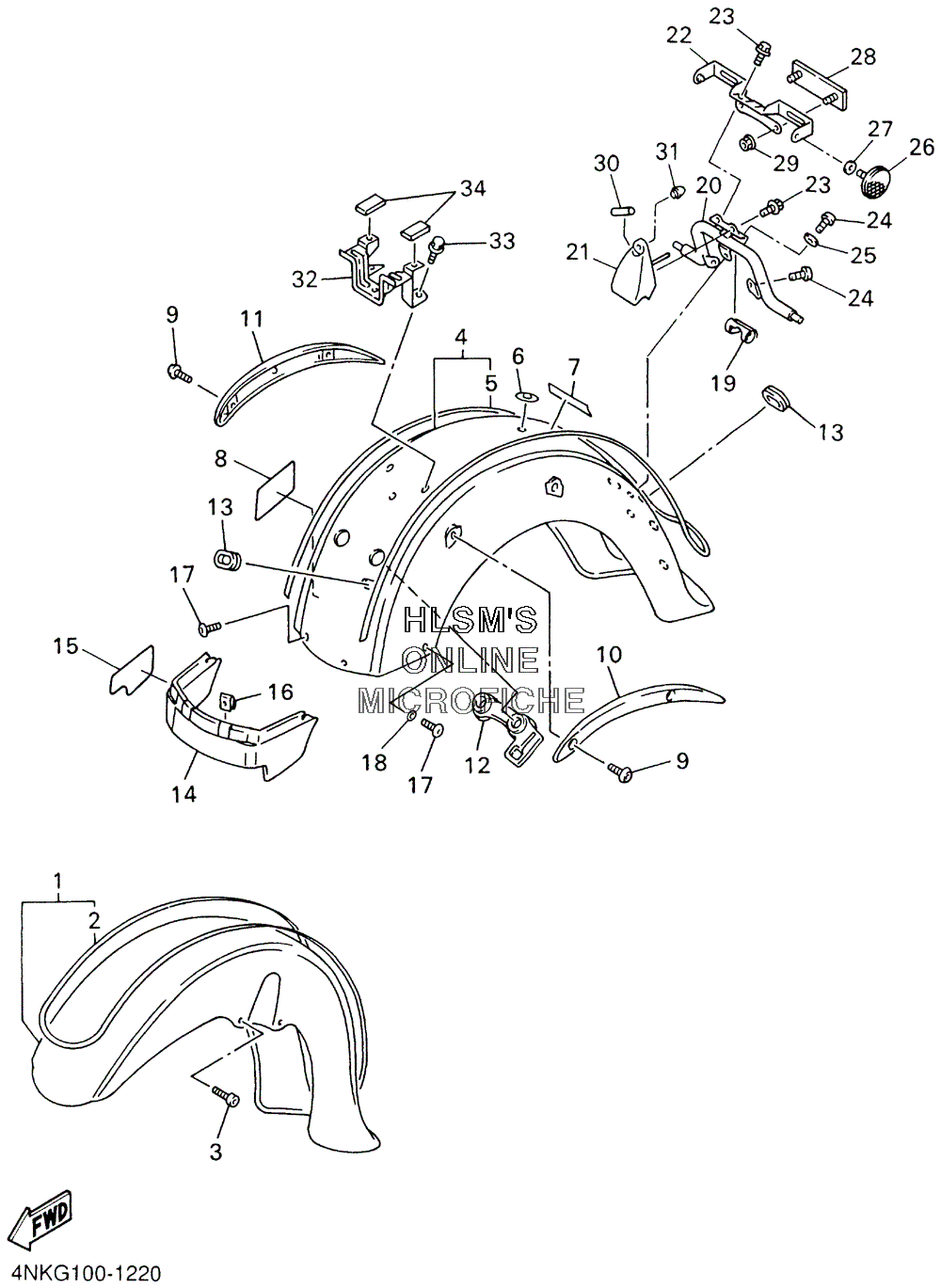

FENDER - FRONT / REAR для Yamaha XVZ 1300 AN ROYAL STAR BOULEVARD CALIFORNIA - 2001 года выпуска
-
№АртикулНазвание
-
14NK-Y2150-H0-33 FRONT FENDER ASSY (YAMAHA BLACK (YB))FRONT FENDER ASSY (YAMAHA BLACK (YB))
-
24NK-21570-90-00 ...GRAPHIC SET, FRONT FENDER...GRAPHIC SET, FRONT FENDER
-
391314-08025-00 BOLTBOLT
-
44NK-Y2161-K0-33 REAR FENDER COMP. (YAMAHA BLACK (YB))REAR FENDER COMP. (YAMAHA BLACK (YB))
-
54NK-2165A-90-00 ...GRAPHIC SET, REAR FENDER...GRAPHIC SET, REAR FENDER
-
64NK-21735-00-00 SEAL 2SEAL 2
-
799247-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
84NK-21268-00-00 SEALSEAL
-
992014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
104NK-2164F-00-00 STAY 1STAY 1
-
114NK-2164G-00-00 STAY 2STAY 2
-
124NK-21649-00-00 DAMPERDAMPER
-
1390480-15061-00 GROMMETGROMMET
-
144NK-21621-00-33 FLAP (YAMAHA BLACK (YB))FLAP (YAMAHA BLACK (YB))
-
154NK-21269-00-00 SEALSEAL
-
1690183-06053-00 NUT, SPRINGNUT, SPRING
-
1790110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1890202-06170-00 WASHER, PLATEWASHER, PLATE
-
194NK-83345-00-00 PLUG, BLINDPLUG, BLIND
-
205KS-2317W-00-00 STAY, 9STAY, 9
-
215KS-84703-00-00 BRACKETBRACKET
-
225KS-84751-30-00 BRACKET, LICENSEBRACKET, LICENSE
-
2395027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2492014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2590201-06043-00 WASHER, PLATEWASHER, PLATE
-
26449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
2790201-05033-00 WASHER, PLATEWASHER, PLATE
-
281FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2995707-05500-00 NUT, FLANGENUT, FLANGE
-
3090446-07114-00 HOSEHOSE
-
315A8-21639-00-00 DAMPER 2DAMPER 2
-
324NK-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
3395027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
34509-24724-00-00 DAMPER, SEATDAMPER, SEAT
