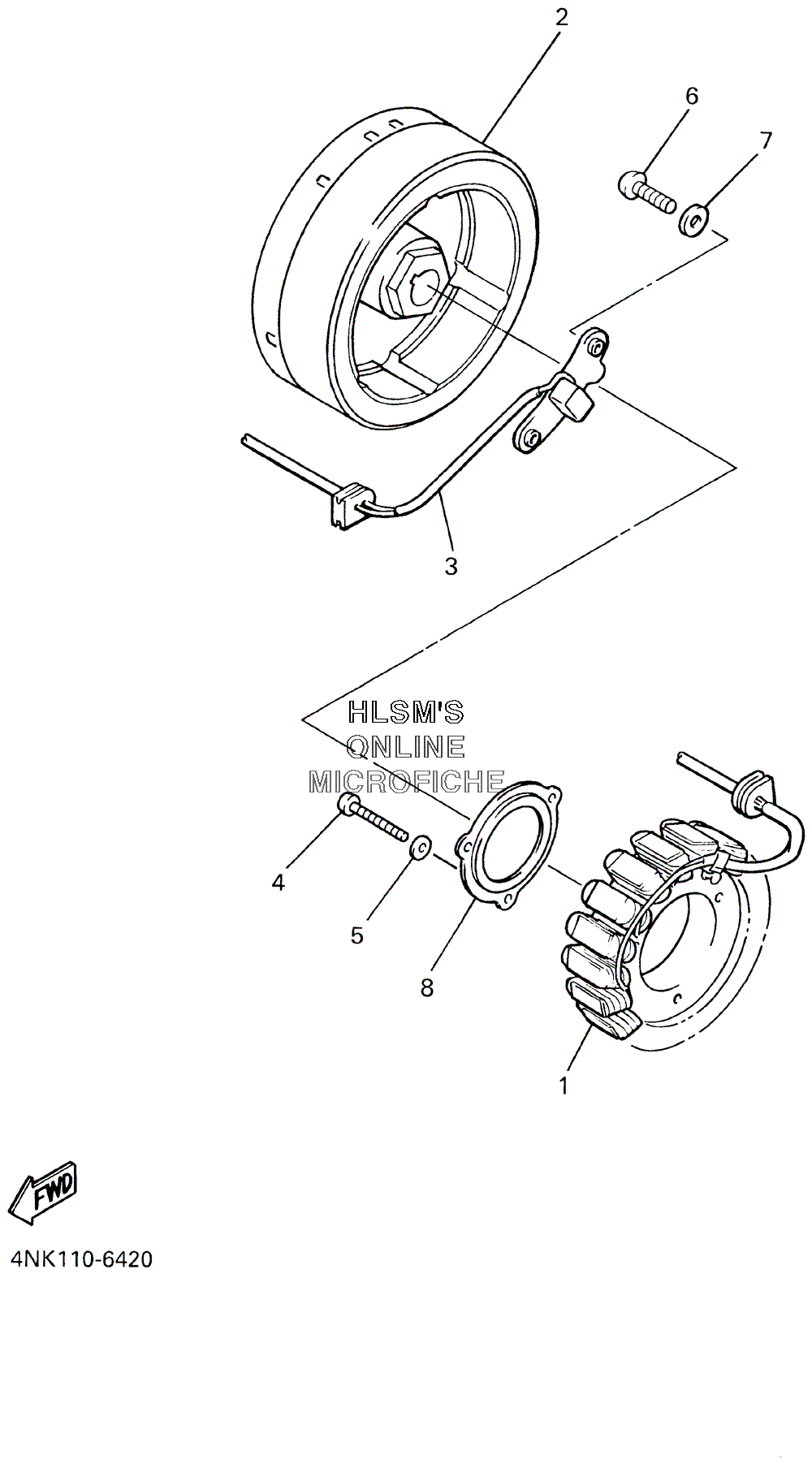

GENERATOR для Yamaha XVZ 1300 AN ROYAL STAR BOULEVARD CALIFORNIA - 2001 года выпуска
-
№АртикулНазвание
-
14NK-81410-00-00 STATOR ASSYSTATOR ASSY
-
24NK-81450-00-00 ROTOR ASSYROTOR ASSY
-
34NK-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
498507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
592907-06600-00 WASHER, PLATEWASHER, PLATE
-
698507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
790201-06674-00 WASHER, PLATEWASHER, PLATE
-
84NK-15113-00-00 PLATEPLATE
