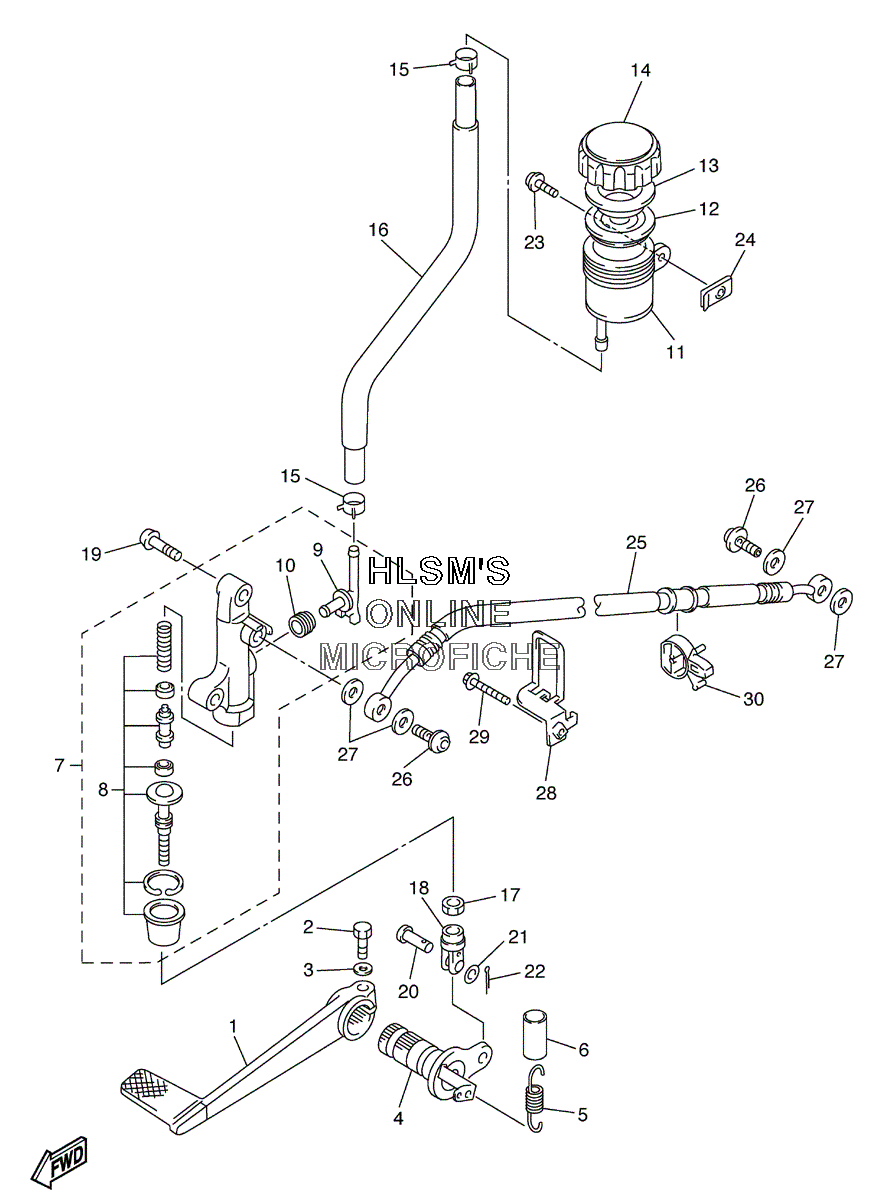

BRAKE - REAR MASTER CYLINDER для Yamaha FJR 1300 - 2003 года выпуска
-
№АртикулНазвание
-
15JW-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
290109-06468-00 BOLTBOLT
-
392990-06600-00 WASHERWASHER
-
45JW-27212-00-00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
590506-25001-00 SPRING, TENSIONSPRING, TENSION
-
690446-17346-00 HOSEHOSE
-
75JW-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
85JW-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
93LN-2582A-00-00 ...JOINT...JOINT
-
103LN-2585F-00-00 ...O-RING...O-RING
-
113LN-2585H-00-00 ...SCREW, SET...SCREW, SET
-
124XV-27222-01-00 JOINTJOINT
-
1395317-08700-00 NUTNUT
-
1492017-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1591701-06018-00 PIN, CLEVISPIN, CLEVIS
-
1692907-06200-00 WASHERWASHER
-
1791490-16020-00 PIN, COTTERPIN, COTTER
-
1831A-25894-01-00 TANK, RESERVOIRTANK, RESERVOIR
-
19360-25854-01-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
202GU-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
212KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
2298517-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2390183-06069-00 NUT, SPRINGNUT, SPRING
-
245JW-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2590467-14057-00 CLIPCLIP
-
265JW-2581K-00-00 HOSE, BRAKE 5HOSE, BRAKE 5
-
2790401-10172-00 BOLT, UNIONBOLT, UNION
-
2890201-10118-00 WASHER, PLATEWASHER, PLATE
-
295JW-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
3095027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
3190464-23239-00 CLAMPCLAMP
