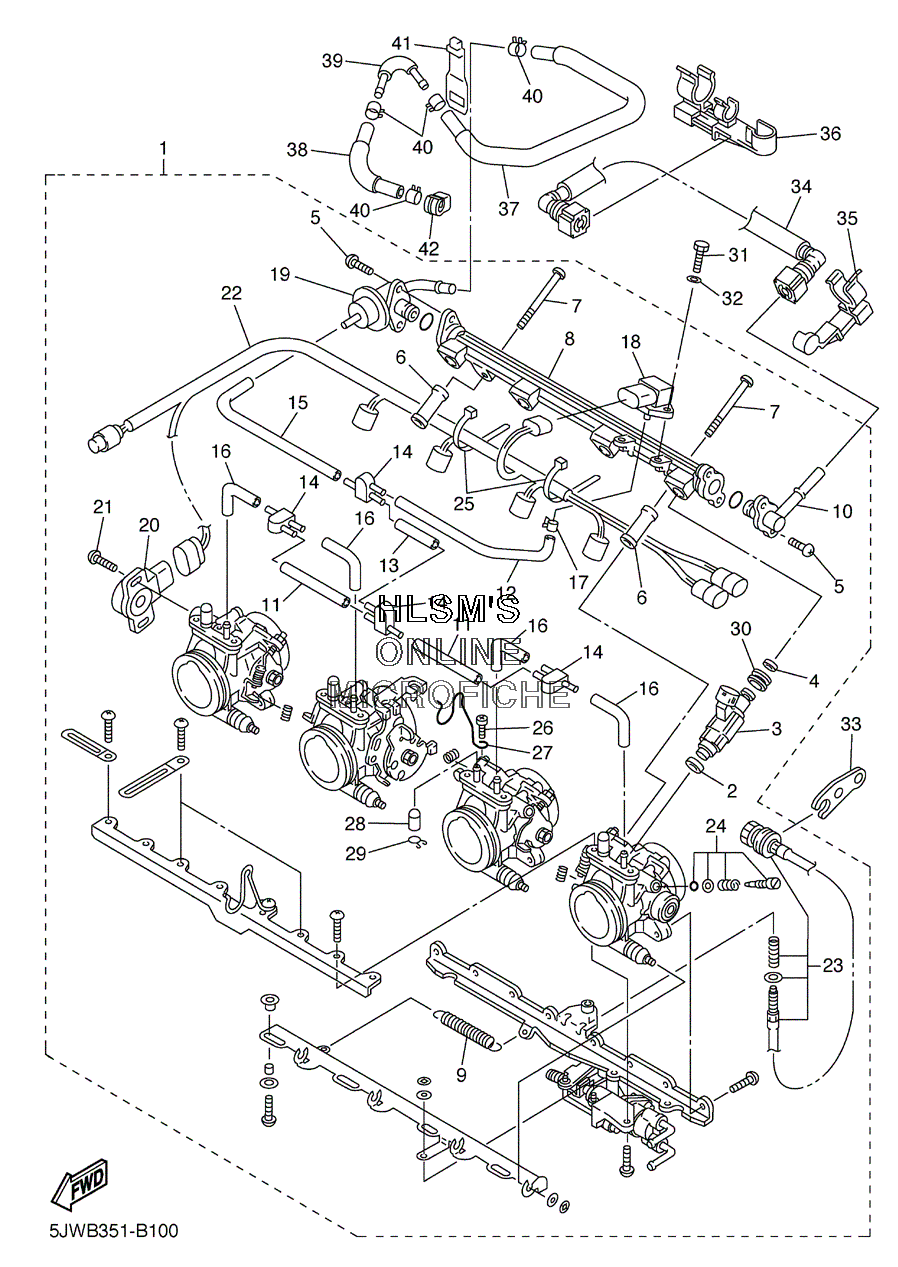

FUEL INJECTION SYSTEM для Yamaha FJR 1300 - 2003 года выпуска
-
№АртикулНазвание
-
15JW-13750-21-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
15JW-13750-31-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
290430-09002-00 ...GASKET...GASKET
-
35FL-13761-00-00 ...INJECTOR ASSY...INJECTOR ASSY
-
45FL-14147-00-00 ...O-RING...O-RING
-
598517-05012-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
65JW-14148-00-00 ...PIPE...PIPE
-
798507-06050-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
85JW-13938-00-00 ...PIPE...PIPE
-
95JW-14589-00-00 ...SPRING...SPRING
-
105JW-12881-00-00 ......PIPE, FUEL INJECTION 1......PIPE, FUEL INJECTION 1
-
115JW-14348-00-00 ...PIPE 1...PIPE 1
-
125JW-14349-00-00 ...PIPE...PIPE
-
135JW-14396-00-00 ...PIPE...PIPE
-
143XV-14251-00-00 ...NIPPLE...NIPPLE
-
155JW-14987-00-00 ...HOSE...HOSE
-
165JW-24311-00-00 ...PIPE, FUEL 1...PIPE, FUEL 1
-
175DM-14919-00-00 ...CLIP...CLIP
-
185JW-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
195JW-13906-00-00 ...REGULATOR, PRESSURE...REGULATOR, PRESSURE
-
205PS-85885-00-00 ...THROTTLE POSITION SENSOR ASS...THROTTLE POSITION SENSOR ASS
-
218CC-14216-10-00 ...SCREW...SCREW
-
225JW-82509-10-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
235JW-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
245JW-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
254KM-14137-00-00 ...CLIP...CLIP
-
2698507-05006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
275JW-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
28895-14169-00-00 ...CAP...CAP
-
298A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
305FL-13766-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
3197017-05016-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
3292907-05600-00 WASHER, PLATEWASHER, PLATE
-
335EB-14413-00-00 STAYSTAY
-
345JW-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3590464-16008-00 CLAMPCLAMP
-
3690464-16005-00 CLAMPCLAMP
-
375JW-13973-01-00 PIPE, FUEL 3PIPE, FUEL 3
-
385JW-13974-01-00 PIPE, FUEL 4PIPE, FUEL 4
-
395JW-14295-01-00 PIPE, FUELPIPE, FUEL
-
4090467-12003-00 CLIPCLIP
-
415JW-1479J-00-00 COVER 2COVER 2
-
425JW-1479H-00-00 COVER, 1COVER, 1
