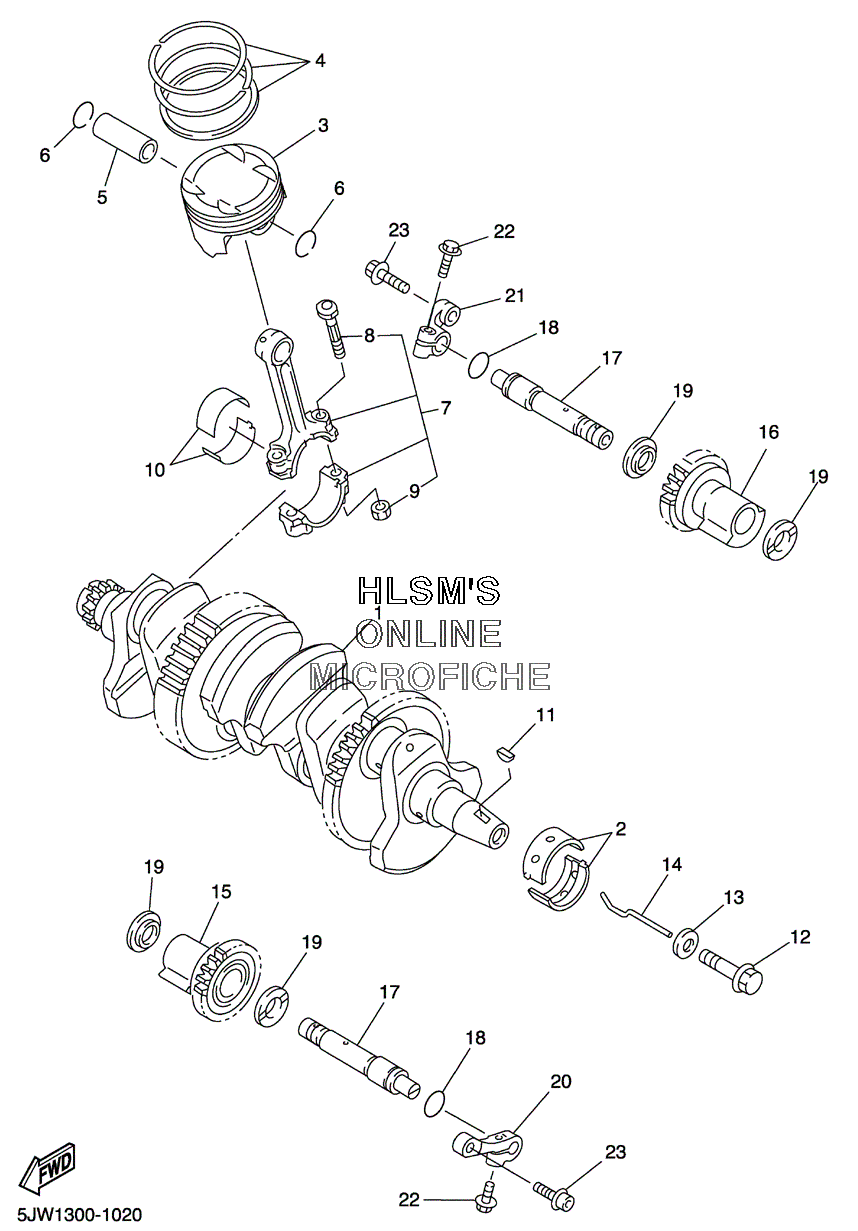

CRANKSHAFT - PISTON для Yamaha FJR 1300 - 2003 года выпуска

№

Артикул

Название
1

5JW-11411-00-00 CRANKSHAFT

CRANKSHAFT

140 640 ₽
2

3LD-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)

PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)

920 ₽
2

3LD-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)

PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)

950 ₽
2

3LD-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)

PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)

950 ₽
2

3LD-11416-70-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (WHITE)

PLANE BEARING, CRANKSHAFT 1 (OPT) (WHITE)

920 ₽
2

3LD-11416-60-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (RED)

PLANE BEARING, CRANKSHAFT 1 (OPT) (RED)

920 ₽
2

3LD-11416-50-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (PINK)

PLANE BEARING, CRANKSHAFT 1 (OPT) (PINK)

920 ₽
2

3LD-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)

PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)

920 ₽
3

5JW-11631-00-00 PISTON (STD)

PISTON (STD)

12 440 ₽
4

5JW-11603-00-00 PISTON RING SET (STD)

PISTON RING SET (STD)

4 880 ₽
5

5JW-11633-00-00 PIN, PISTON

PIN, PISTON

2 360 ₽
6

93450-19095-00 CIRCLIP

CIRCLIP

70 ₽
7

5JW-11650-01-00 CONNECTING ROD ASSY

CONNECTING ROD ASSY

22 990 ₽
8

5JW-11654-00-00 ...BOLT, CONNECTING ROD

...BOLT, CONNECTING ROD

310 ₽
9

90179-08327-00 ...NUT

...NUT

280 ₽
10

5JW-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)

PLANE BEARING, CONNECTING ROD (OPT) (BLUE)

590 ₽
10

5JW-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)

PLANE BEARING, CONNECTING ROD (OPT) (BLACK)

540 ₽
10

5JW-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)

PLANE BEARING, CONNECTING ROD (OPT) (BROWN)

570 ₽
10

5JW-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)

PLANE BEARING, CONNECTING ROD (OPT) (GREEN)

590 ₽
10

5JW-11656-40-00 PLANE BEARING, CONNECTING ROD (OPT) (YELLOW)

PLANE BEARING, CONNECTING ROD (OPT) (YELLOW)

690 ₽
10

5JW-11656-50-00 PLANE BEARING, CONNECTING ROD (OPT) (PINK)

PLANE BEARING, CONNECTING ROD (OPT) (PINK)

780 ₽
11

90280-05029-00 KEY, WOODRUFF

KEY, WOODRUFF

1 010 ₽
12

90105-12005-00 BOLT, FLANGE

BOLT, FLANGE

3 300 ₽
13

90201-12191-00 WASHER, PLATE

WASHER, PLATE

510 ₽
14

5JW-11455-00-00 SHAFT 1

SHAFT 1

320 ₽
15

5JW-11500-00-00 BALANCER ASSY

BALANCER ASSY

41 890 ₽
16

5JW-11510-00-00 BALANCER ASSY, 2

BALANCER ASSY, 2

42 830 ₽
17

5JW-11583-00-00 SHAFT, BALANCER 1

SHAFT, BALANCER 1

11 810 ₽
18

93210-16629-00 O-RING

O-RING

320 ₽
19

5JW-11557-00-00 WASHER 1

WASHER 1

2 200 ₽
20

5JW-13831-00-00 LEVER 1

LEVER 1

8 340 ₽
21

5JW-13832-00-00 LEVER 2

LEVER 2

10 700 ₽
22

95027-06020-00 BOLT, FLANGE

BOLT, FLANGE

280 ₽
23

90110-08006-00 BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD

340 ₽
