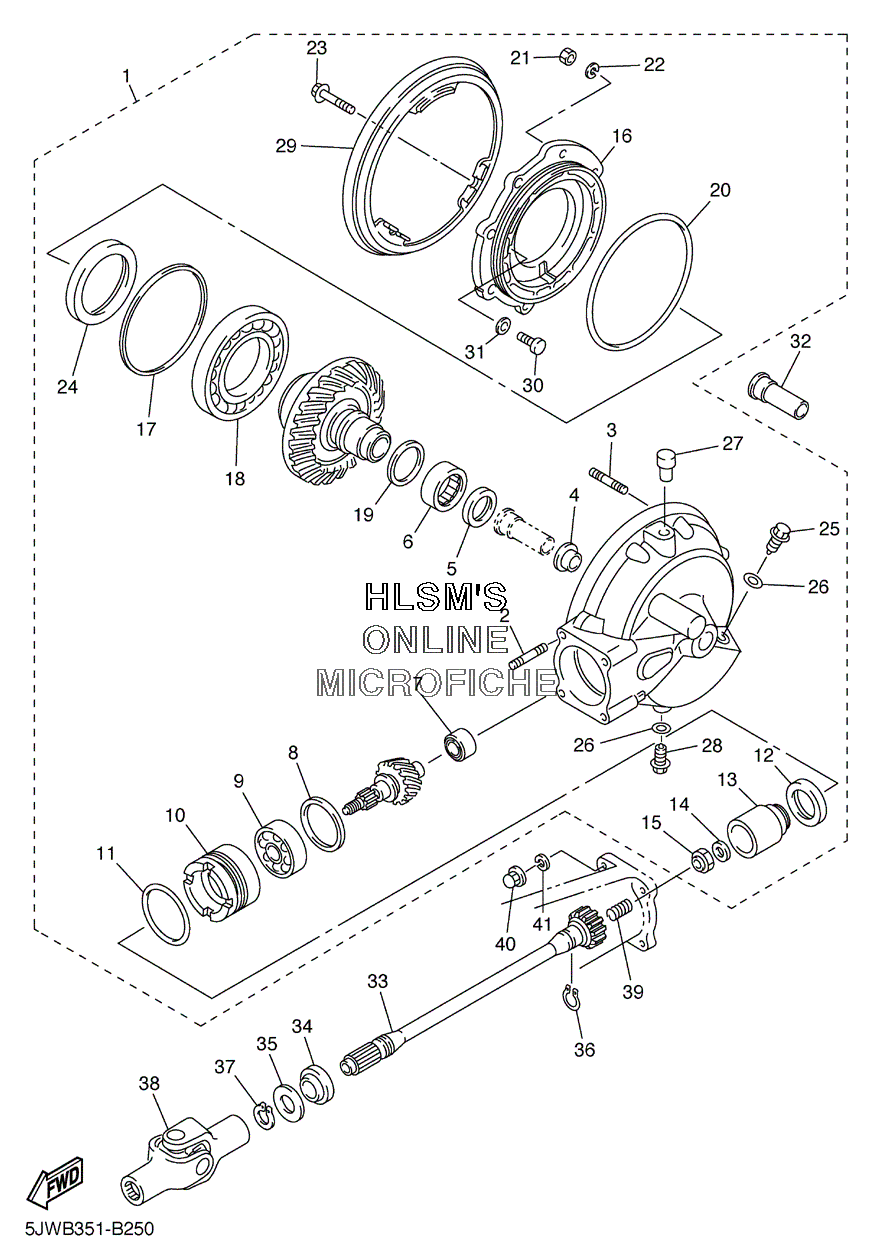

DRIVE SHAFT W/ GEAR CASE для Yamaha FJR 1300 - 2003 года выпуска
-
№АртикулНазвание
-
15JW-W4612-00-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
290116-10010-00 ...BOLT, STUD...BOLT, STUD
-
395617-08620-00 ......BOLT, STUD......BOLT, STUD
-
45JW-46153-00-00 ...COLLAR, GUIDE...COLLAR, GUIDE
-
593101-30084-00 ...OIL SEAL...OIL SEAL
-
693311-43729-00 ...BEARING...BEARING
-
72H7-46102-00-00 ...BEARING ASSY...BEARING ASSY
-
81J7-17537-Y0-30 ...SHIM, THRUST (0.30T) (OPT)...SHIM, THRUST (0.30T) (OPT)
-
81J7-17537-Y0-40 ...SHIM, THRUST (0.40T) (OPT)...SHIM, THRUST (0.40T) (OPT)
-
81J7-17537-Y0-50 ...SHIM, THRUST (0.50T) (OPT)...SHIM, THRUST (0.50T) (OPT)
-
993306-30533-00 ...BEARING (B6305RB1 SPECIAL)...BEARING (B6305RB1 SPECIAL)
-
104H7-46125-00-00 ...RETAINER, BEARING...RETAINER, BEARING
-
1193210-60426-00 ...O-RING...O-RING
-
1293101-38098-00 ...OIL SEAL...OIL SEAL
-
134H7-46123-01-00 ...COUPLING, GEAR...COUPLING, GEAR
-
1490201-166R5-00 ...WASHER, PLATE...WASHER, PLATE
-
1590179-16661-00 ...NUT...NUT
-
161FK-46152-01-00 ...HOUSING, BEARING...HOUSING, BEARING
-
171J7-46117-Y0-25 ...SHIM, RING GEAR (0.25T) (OPT)...SHIM, RING GEAR (0.25T) (OPT)
-
171J7-46117-Y0-30 ...SHIM, RING GEAR (0.30T) (OPT)...SHIM, RING GEAR (0.30T) (OPT)
-
171J7-46117-Y0-40 ...SHIM, RING GEAR (0.40T) (OPT)...SHIM, RING GEAR (0.40T) (OPT)
-
171J7-46117-Y0-50 ...SHIM, RING GEAR (0.50T) (OPT)...SHIM, RING GEAR (0.50T) (OPT)
-
1893316-01403-00 ...BEARING...BEARING
-
1922U-46118-00-12 ...SHIM, THRUST (1.2T) (OPT)...SHIM, THRUST (1.2T) (OPT)
-
1922U-46118-00-14 ...SHIM, THRUST (1.4T) (OPT)...SHIM, THRUST (1.4T) (OPT)
-
1922U-46118-00-16 ...SHIM, THRUST (1.6T) (OPT)...SHIM, THRUST (1.6T) (OPT)
-
1922U-46118-00-18 ...SHIM, THRUST (1.8T) (OPT)...SHIM, THRUST (1.8T) (OPT)
-
1922U-46118-00-20 ...SHIM, THRUST (2.0T) (OPT)...SHIM, THRUST (2.0T) (OPT)
-
2093211-54698-00 ...O-RING...O-RING
-
2195337-08600-00 ...NUT...NUT
-
2292907-08700-00 ...WASHER...WASHER
-
2395817-10050-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2493102-70167-00 ...OIL SEAL...OIL SEAL
-
2590340-14132-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
26214-11198-01-00 ...GASKET...GASKET
-
272H7-17590-00-00 ...BREATHER COMP....BREATHER COMP.
-
283JL-13455-00-00 ......PLUG......PLUG
-
291FK-46154-00-00 ...COVER, HOUSING...COVER, HOUSING
-
301FK-46156-00-00 ...STOPPER, RING GEAR...STOPPER, RING GEAR
-
311FK-46157-00-15 ...SHIM, STOPPER (T=0.15) (OPT)...SHIM, STOPPER (T=0.15) (OPT)
-
311FK-46157-00-20 ...SHIM, STOPPER (T=0.20) (OPT)...SHIM, STOPPER (T=0.20) (OPT)
-
325JW-4615A-00-00 ...COLLAR, GUIDE 1...COLLAR, GUIDE 1
-
335JW-46172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3493108-23007-00 OIL SEALOIL SEAL
-
3590201-231A2-00 WASHER, PLATEWASHER, PLATE
-
3693410-23056-00 CIRCLIPCIRCLIP
-
3793410-22039-00 CIRCLIPCIRCLIP
-
385JW-46180-00-00 CROSS JOINT COMP.CROSS JOINT COMP.
-
3990501-16491-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4090176-10075-00 NUT, CROWNNUT, CROWN
-
4192990-10600-00 WASHER, PLATEWASHER, PLATE
