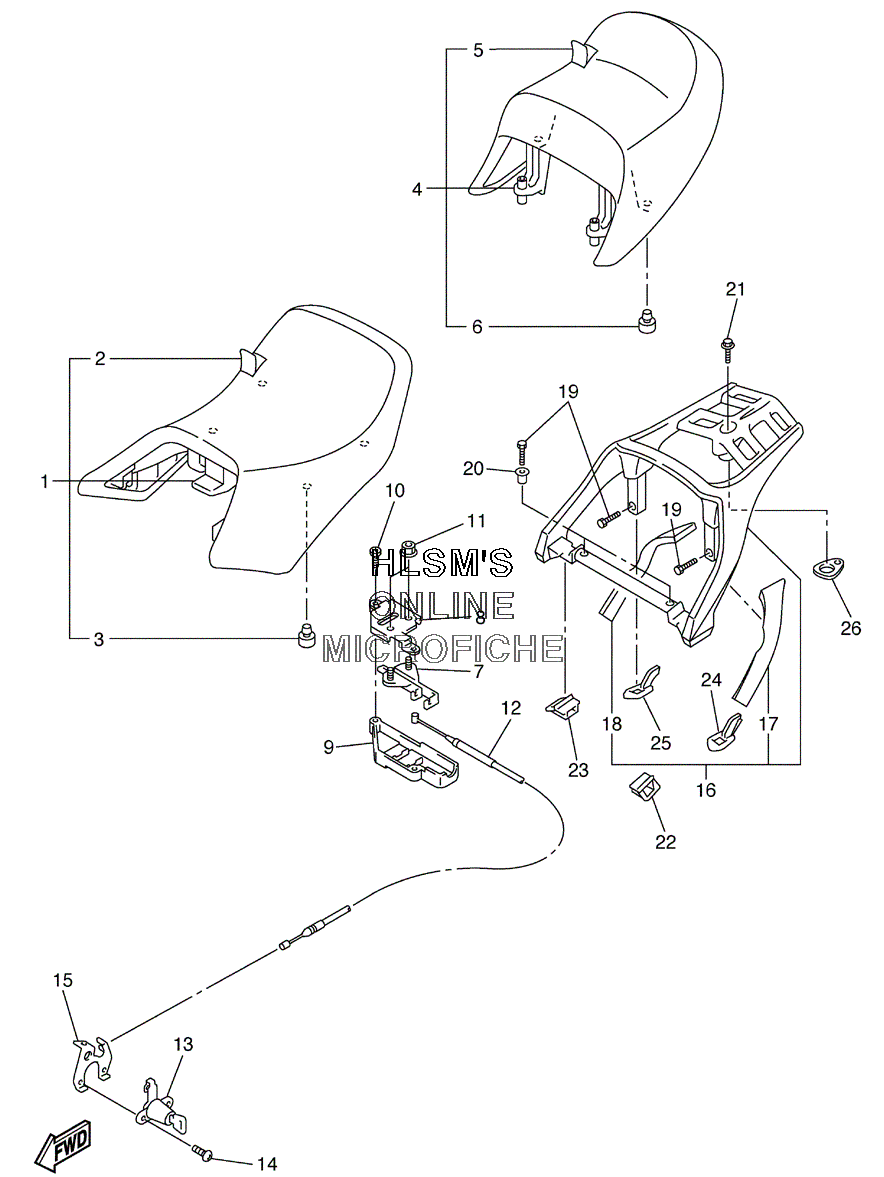

SEAT для Yamaha FJR 1300 - 2003 года выпуска
-
№АртикулНазвание
-
15JW-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25JW-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
35JW-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
45JW-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
55JW-2470F-10-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
65JW-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
74BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
84BP-24792-00-00 PLATEPLATE
-
995707-06500-00 NUT, FLANGENUT, FLANGE
-
105JW-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
113CK-W2470-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1290149-06308-00 SCREWSCREW
-
135JW-2117K-00-00 STAY, LOCKSTAY, LOCK
-
145JW-24773-00-P1 HANDLE, SEAT (SILVER METALLIC (SM1))HANDLE, SEAT (SILVER METALLIC (SM1))
-
155JW-2475X-00-00 ......COVER, 2......COVER, 2
-
165JW-2475X-10-00 ......COVER, 2......COVER, 2
-
1790109-082A1-00 BOLTBOLT
-
1890387-09003-00 COLLARCOLLAR
-
1995814-08045-00 BOLT, FLANGEBOLT, FLANGE
-
205JW-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
215JW-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
225JW-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
235JW-24737-10-00 DAMPER, SEATDAMPER, SEAT
-
245JW-24747-00-00 DAMPER, SEATDAMPER, SEAT
