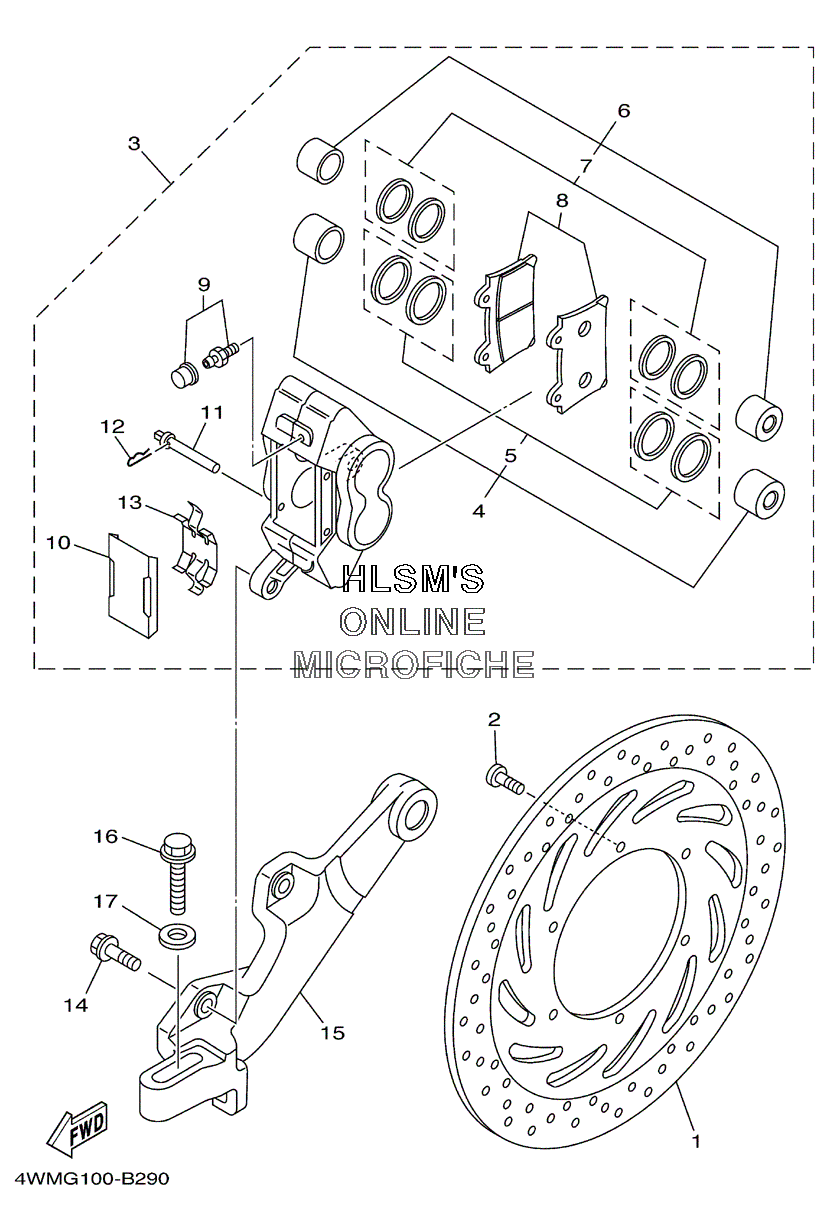

BRAKE - REAR CALIPER для Yamaha XV 1600 A ROAD STAR - 2003 года выпуска
![](/wa-data/public/shop/sheme/yamaha/streetbike/f36a6726-0238-4262-9329-6fa9e98240b6.gif)
-
№АртикулНазвание
-
14WM-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-083G4-00 BOLTBOLT
-
34WM-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
41KT-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
51KT-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
64NK-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
74NK-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
84WM-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
91J3-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
101NL-25836-00-00 ...COVER, DUST...COVER, DUST
-
113HE-25924-00-00 ...PIN, PAD...PIN, PAD
-
123GM-25925-00-00 ...CLIP...CLIP
-
131NL-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
1490105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
154WM-25819-00-00 BRACKET, CALIPERBRACKET, CALIPER
-
1695827-10050-00 BOLT, FLANGEBOLT, FLANGE
-
1790201-10140-00 WASHER, PLATEWASHER, PLATE
