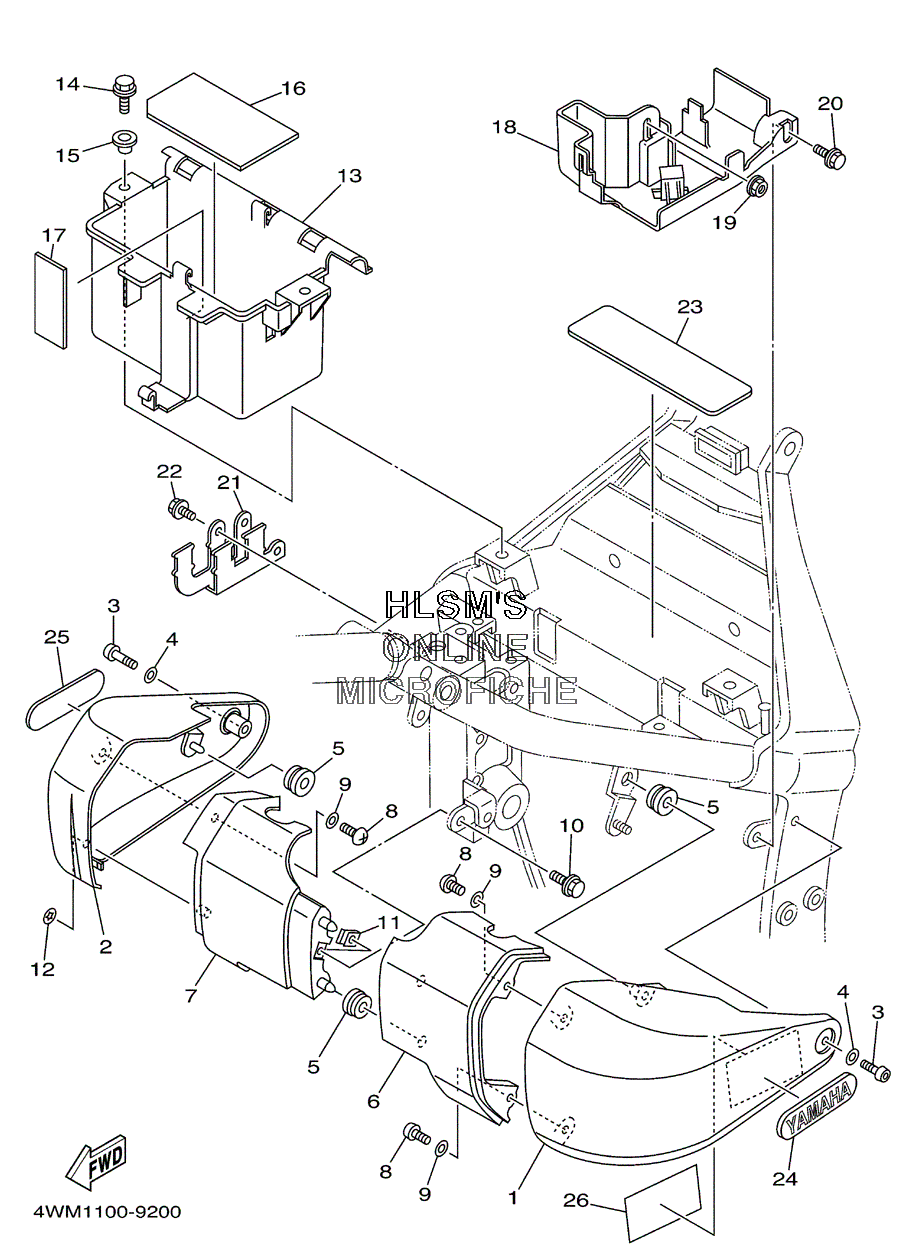

SIDE COVER для Yamaha XV 1600 A ROAD STAR - 2003 года выпуска
-
№АртикулНазвание
-
14WM-21711-00-P4 COVER, SIDE 1 (VERY DARK BLUE METALLIC (VDBMA)COVER, SIDE 1 (VERY DARK BLUE METALLIC (VDBMA)
-
14WM-21711-00-R0 COVER, SIDE 1 (GRACEFUL MAROON (GRM)COVER, SIDE 1 (GRACEFUL MAROON (GRM)
-
14WM-21711-00-P6 COVER, SIDE 1 ( VERY DARK ORANGE METALLIC (VDOM1))COVER, SIDE 1 ( VERY DARK ORANGE METALLIC (VDOM1))
-
24WM-21721-00-P4 COVER, SIDE 2 (VERY DARK BLUE METALLIC (VDBMA)COVER, SIDE 2 (VERY DARK BLUE METALLIC (VDBMA)
-
24WM-21721-00-P6 COVER, SIDE 2 ( VERY DARK ORANGE METALLIC (VDOM1))COVER, SIDE 2 ( VERY DARK ORANGE METALLIC (VDOM1))
-
24WM-21721-00-R0 COVER, SIDE 2 (GRACEFUL MAROON (GRM)COVER, SIDE 2 (GRACEFUL MAROON (GRM)
-
390149-06328-00 SCREWSCREW
-
490202-06172-00 WASHER, PLATEWASHER, PLATE
-
590480-13567-00 GROMMETGROMMET
-
64WM-2117X-00-P4 COVER 9 (VERY DARK BLUE METALLIC (VDBMA)COVER 9 (VERY DARK BLUE METALLIC (VDBMA)
-
64WM-2117X-00-R0 COVER 9 (GRACEFUL MAROON (GRM)COVER 9 (GRACEFUL MAROON (GRM)
-
64WM-2117X-00-P6 COVER 9 ( VERY DARK ORANGE METALLIC (VDOM1))COVER 9 ( VERY DARK ORANGE METALLIC (VDOM1))
-
74WM-2117Y-00-P4 COVER 10 (VERY DARK BLUE METALLIC (VDBMA)COVER 10 (VERY DARK BLUE METALLIC (VDBMA)
-
74WM-2117Y-00-P6 COVER 10 ( VERY DARK ORANGE METALLIC (VDOM1))COVER 10 ( VERY DARK ORANGE METALLIC (VDOM1))
-
74WM-2117Y-00-R0 COVER 10 (GRACEFUL MAROON (GRM)COVER 10 (GRACEFUL MAROON (GRM)
-
898507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
992907-06600-00 WASHER, PLATEWASHER, PLATE
-
1095027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
1290183-05068-00 NUT, SPRINGNUT, SPRING
-
134WM-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
1495807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1590387-07717-00 COLLARCOLLAR
-
1651Y-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
1726H-21746-00-00 DAMPERDAMPER
-
184WM-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
1995707-06500-00 NUT, FLANGENUT, FLANGE
-
2090119-06194-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
214WM-2172K-00-00 BRACKET 1BRACKET 1
-
2295807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
234WM-21267-00-00 SHEET 2SHEET 2
-
243LS-21781-00-00 EMBLEM 1EMBLEM 1
-
253LS-21781-00-00 EMBLEM 1EMBLEM 1
-
264WM-2179V-40-00 PLATE, EPA 1 (EXCEPT CALIF)PLATE, EPA 1 (EXCEPT CALIF)
-
264WM-2179R-40-00 PLATE, EPA 2 (CALIF ONLY)PLATE, EPA 2 (CALIF ONLY)
