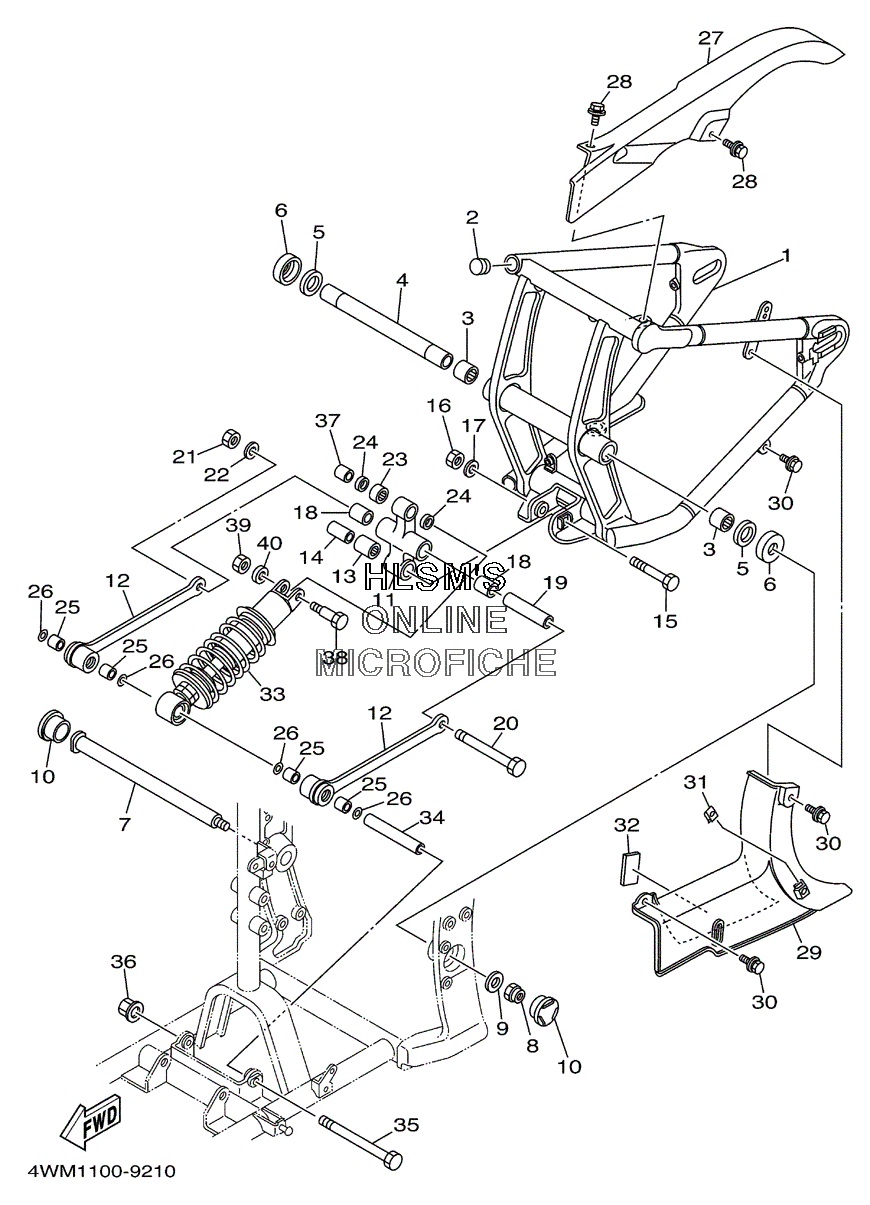

SUSPENSION - REAR ARM для Yamaha XV 1600 A ROAD STAR - 2003 года выпуска
-
№АртикулНазвание
-
14WM-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
290336-28053-00 PLUG, TAPERPLUG, TAPER
-
393317-42550-00 BEARINGBEARING
-
44WM-22184-00-00 BUSHBUSH
-
53XV-22127-00-00 SHIMSHIM
-
63FV-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
73GM-25381-A0-00 AXLE, WHEELAXLE, WHEEL
-
890185-18104-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990201-186M4-00 WASHER, PLATEWASHER, PLATE
-
104KM-2219X-00-00 COVERCOVER
-
114WM-2217A-00-00 ARM, RELAYARM, RELAY
-
124WM-2217M-00-00 ARM 1ARM 1
-
1393317-42060-00 BEARINGBEARING
-
1490387-122J6-00 COLLARCOLLAR
-
1590101-12002-00 BOLTBOLT
-
1695617-12100-00 NUT, UNUT, U
-
1790201-127J6-00 WASHER, PLATEWASHER, PLATE
-
1893317-41761-00 BEARINGBEARING
-
1990387-126T1-00 COLLARCOLLAR
-
2090101-12673-00 BOLTBOLT
-
2195617-12100-00 NUT, UNUT, U
-
2290201-126A7-00 WASHER, PLATEWASHER, PLATE
-
2393317-31771-00 BEARINGBEARING
-
2493109-17071-00 OIL SEALOIL SEAL
-
2590384-18157-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
2693210-18397-00 O-RINGO-RING
-
274WM-22311-00-00 CASE, CHAINCASE, CHAIN
-
2890119-06217-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
294WM-22312-00-00 CASE, CHAIN 2CASE, CHAIN 2
-
3090119-06001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3190183-06053-00 NUT, SPRINGNUT, SPRING
-
3222F-2139X-00-00 DAMPERDAMPER
-
334WM-22210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
3490387-1214E-00 COLLARCOLLAR
-
3590101-12695-00 BOLTBOLT
-
3695607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3790387-127W0-00 COLLARCOLLAR
-
3890101-10659-00 BOLTBOLT
-
3995617-10100-00 NUT, UNUT, U
-
4090201-101J1-00 WASHER, PLATEWASHER, PLATE
