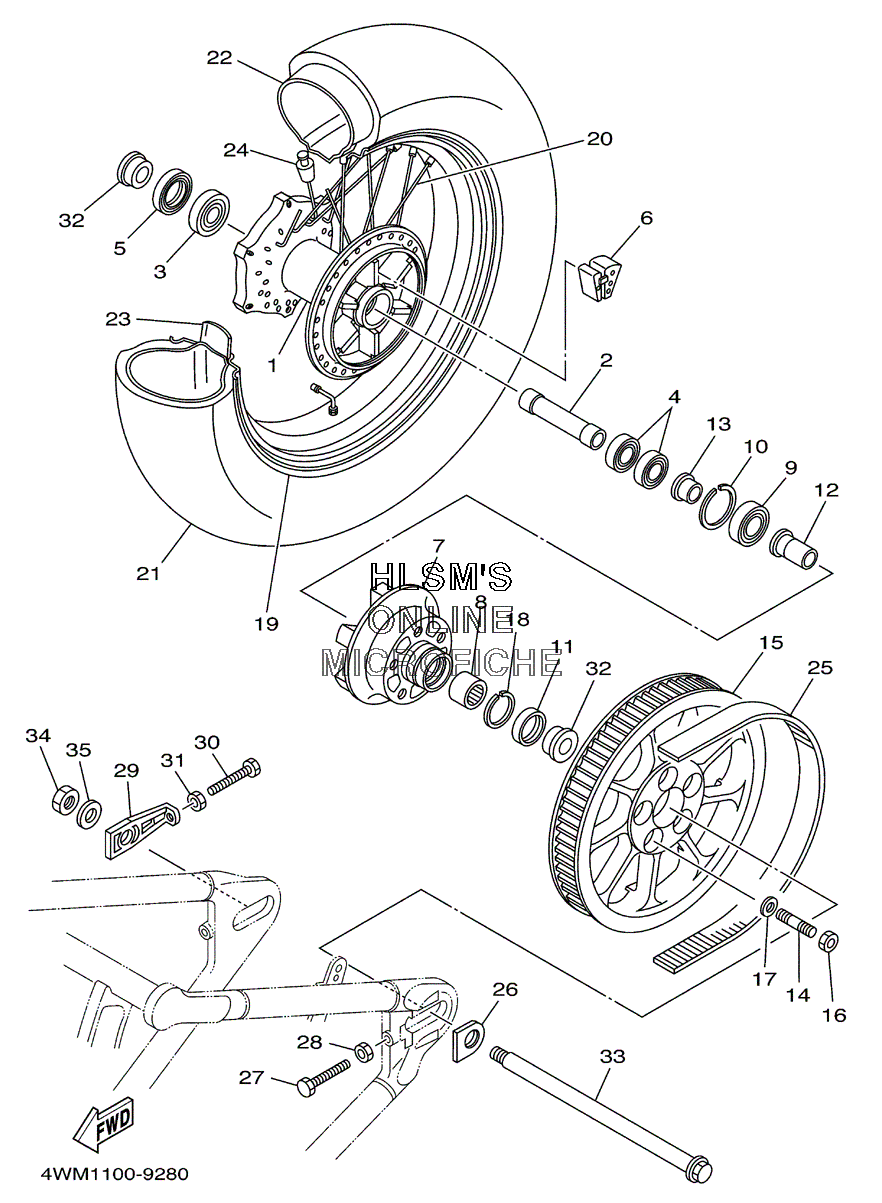

WHEEL - REAR для Yamaha XV 1600 A ROAD STAR - 2003 года выпуска
-
№АртикулНазвание
-
14WM-25311-01-00 HUB, REARHUB, REAR
-
290560-20339-00 SPACERSPACER
-
393306-30437-00 BEARINGBEARING
-
493306-00416-00 BEARING (B6004RS)BEARING (B6004RS)
-
593106-30029-00 OIL SEALOIL SEAL
-
64WM-25364-00-00 DAMPERDAMPER
-
74WM-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
893317-32677-00 BEARINGBEARING
-
993306-20551-00 BEARINGBEARING
-
1099009-52500-00 CIRCLIPCIRCLIP
-
1193106-30004-00 OIL SEALOIL SEAL
-
124WM-25376-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
134WM-25377-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1495617-12630-00 BOLT, STUDBOLT, STUD
-
154WM-25470-00-00 SPROCKET, DRIVEN (70T)SPROCKET, DRIVEN (70T)
-
1695614-12100-00 NUT, UNUT, U
-
1790201-120E8-00 WASHER, PLATEWASHER, PLATE
-
1893450-35015-00 CIRCLIPCIRCLIP
-
1994435-16609-00 RIM (MT3.50-16 M/C)RIM (MT3.50-16 M/C)
-
204WM-25304-01-00 SPOKE SET, REARSPOKE SET, REAR
-
2194115-1614V-00 TIRE (150/80-16 M/C 71H G702) (BRIDGESTONE)TIRE (150/80-16 M/C 71H G702) (BRIDGESTONE)
-
2194115-1614T-00 TIRE (150/80-16 M/C 71H D404) (DUNLOP)TIRE (150/80-16 M/C 71H D404) (DUNLOP)
-
2294215-16311-00 TUBE (150/80-16 M/C PV78N) (BRIDGESTONE)TUBE (150/80-16 M/C PV78N) (BRIDGESTONE)
-
2294215-16310-00 TUBE (150/80-16 M/C PV78N) (DUNLOP)TUBE (150/80-16 M/C PV78N) (DUNLOP)
-
2394315-16178-00 BAND,RIM (3.50-16) (BRIDGESTONE)BAND,RIM (3.50-16) (BRIDGESTONE)
-
2394315-16177-00 BAND,RIM (3.50-16) (DUNLOP)BAND,RIM (3.50-16) (DUNLOP)
-
245V4-25398-00-00 BALANCER, WHEELBALANCER, WHEEL
-
254WM-46241-00-00 V-BELTV-BELT
-
264WM-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
2790101-10001-00 BOLTBOLT
-
2890170-10003-00 NUTNUT
-
294WM-25389-00-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
3090101-10001-00 BOLTBOLT
-
3190170-10003-00 NUTNUT
-
3290387-202X9-00 COLLARCOLLAR
-
334WM-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
3490185-18167-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3590201-185R7-00 WASHER, PLATEWASHER, PLATE
