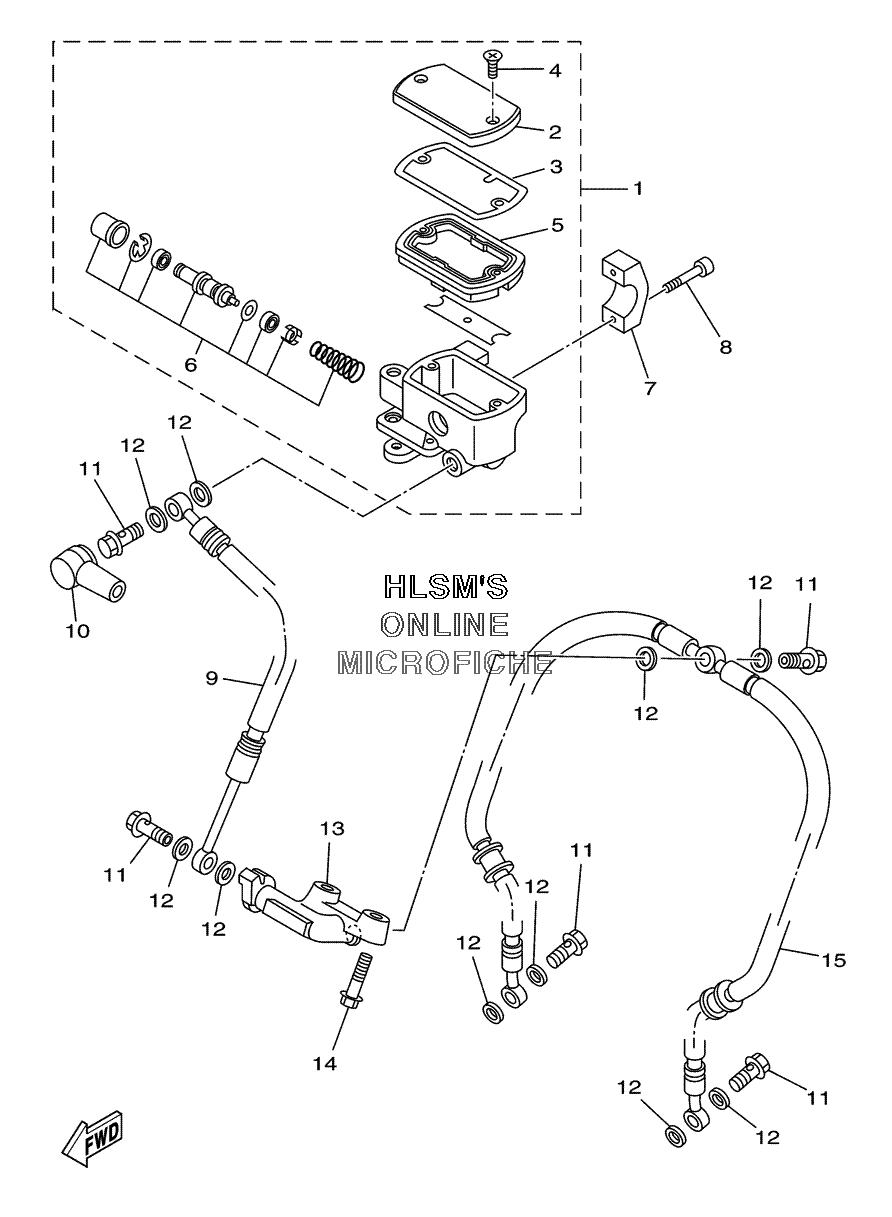

BRAKE - FRONT MASTER CYLINDER для Yamaha V STAR 1100 MDNT CUSTOM - 2005 года выпуска
-
№АртикулНазвание
-
14TR-25870-10-00 MASTER CYLINDER SUB ASSY.MASTER CYLINDER SUB ASSY.
-
24TR-25852-10-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
34BH-25815-00-00 ...SEAL, PISTON...SEAL, PISTON
-
436Y-2589H-00-00 ...SCREW...SCREW
-
54BH-25854-02-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
62KR-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
74TR-25867-10-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
891314-06025-00 BOLTBOLT
-
95PB-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
104L0-25862-01-00 BOOT, MASTER CYLINDERBOOT, MASTER CYLINDER
-
1190401-10159-00 BOLT, UNIONBOLT, UNION
-
1290201-10118-00 WASHER, PLATEWASHER, PLATE
-
135PB-25885-00-00 JOINTJOINT
-
1495807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
155PB-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
