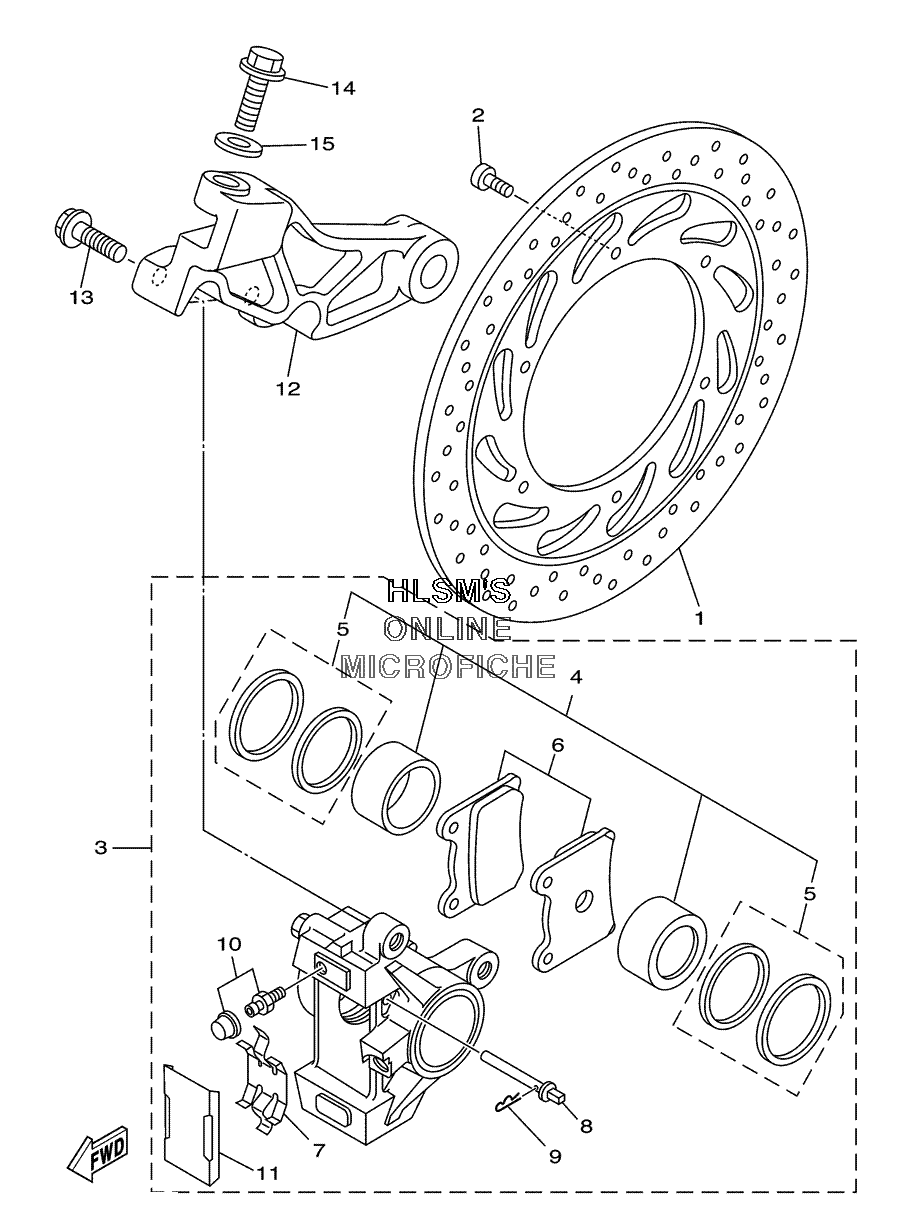

BRAKE - REAR CALIPER для Yamaha V STAR 1100 MDNT CUSTOM - 2005 года выпуска
-
№АртикулНазвание
-
15EL-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-083G4-00 BOLTBOLT
-
35EL-2580W-00-00 CALIPER ASSY., REAR 2CALIPER ASSY., REAR 2
-
431A-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
531A-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
63XF-W0045-50-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
729L-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
83HE-25924-00-00 ...PIN, PAD...PIN, PAD
-
93GM-25925-00-00 ...CLIP...CLIP
-
101J3-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
1151J-25836-00-00 ...COVER, DUST...COVER, DUST
-
125EL-25819-01-00 BRACKET, CALIPERBRACKET, CALIPER
-
1390105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1490105-10010-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1590201-10140-00 WASHER, PLATEWASHER, PLATE
