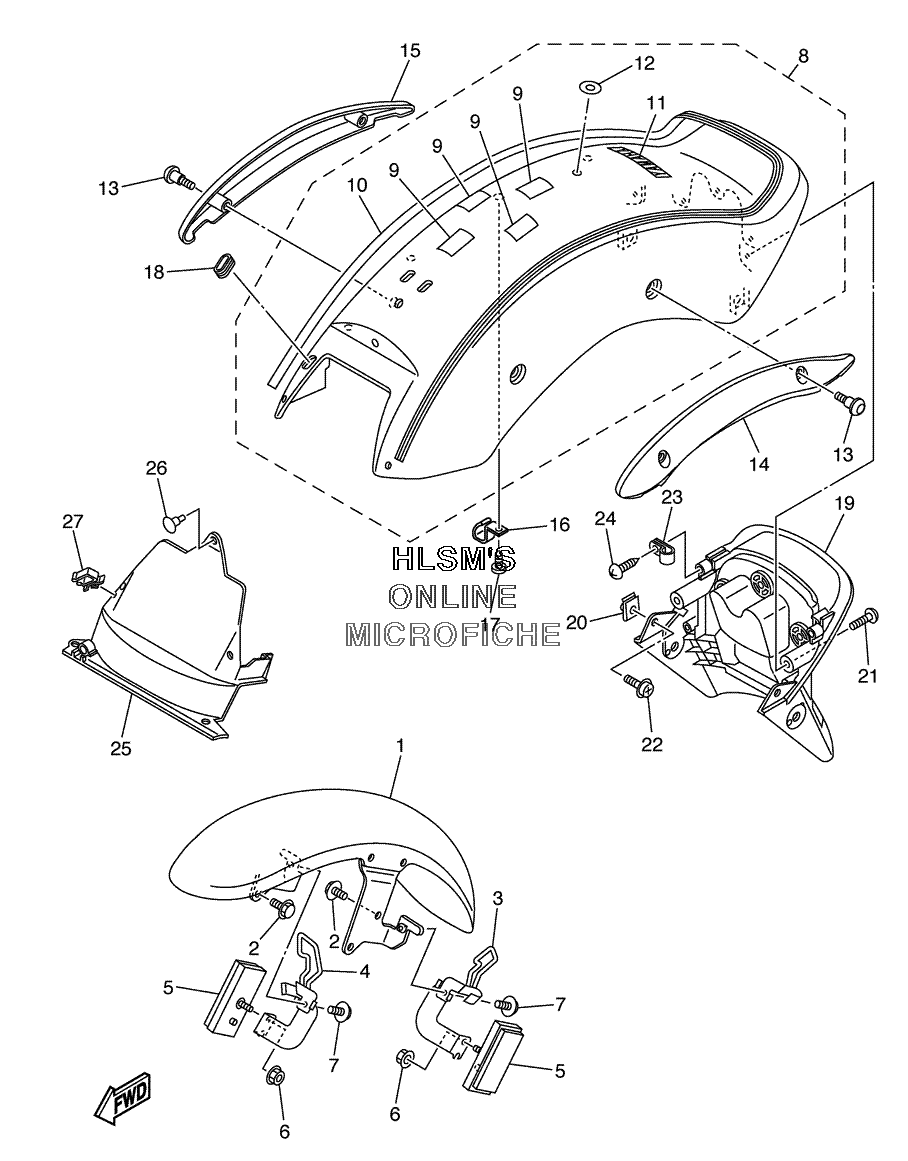

FENDER - FRONT / REAR для Yamaha V STAR 1100 MDNT CUSTOM - 2005 года выпуска
-
№АртикулНазвание
-
15EL-21510-10-P0 FRONT FENDER COMP. (SMX)FRONT FENDER COMP. (SMX)
-
295027-08012-00 BOLT, FLANGEBOLT, FLANGE
-
35EL-21597-10-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
45EL-21598-10-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
511H-85110-01-00 REFLECTOR ASSY.REFLECTOR ASSY.
-
695707-05500-00 NUT, FLANGENUT, FLANGE
-
795807-06014-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
85EL-Y2161-1A-P4 REAR FENDER COMP. (SMX)REAR FENDER COMP. (SMX)
-
93SP-21732-00-00 ...SEAL 1...SEAL 1
-
105PB-21675-50-00 ...GRAPHIC, REAR FENDER...GRAPHIC, REAR FENDER
-
1199247-00080-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
125VN-21735-00-00 ...SEAL 2...SEAL 2
-
1390111-08001-00 BOLTBOLT
-
145EL-2164F-10-00 STAY 1STAY 1
-
155EL-2164G-10-00 STAY 2STAY 2
-
1690461-06001-00 CLAMPCLAMP
-
1797707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1890480-01001-00 GROMMETGROMMET
-
195EL-2162R-00-00 FENDER 2FENDER 2
-
2090183-05024-00 NUT, SPRINGNUT, SPRING
-
2190154-05004-00 SCREW, BINDINGSCREW, BINDING
-
2290159-05083-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2390461-10135-00 CLAMPCLAMP
-
2497707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
255EL-21629-00-00 GUARD, MUDGUARD, MUD
-
2690269-07077-00 RIVETRIVET
-
2790464-16021-00 CLAMPCLAMP
