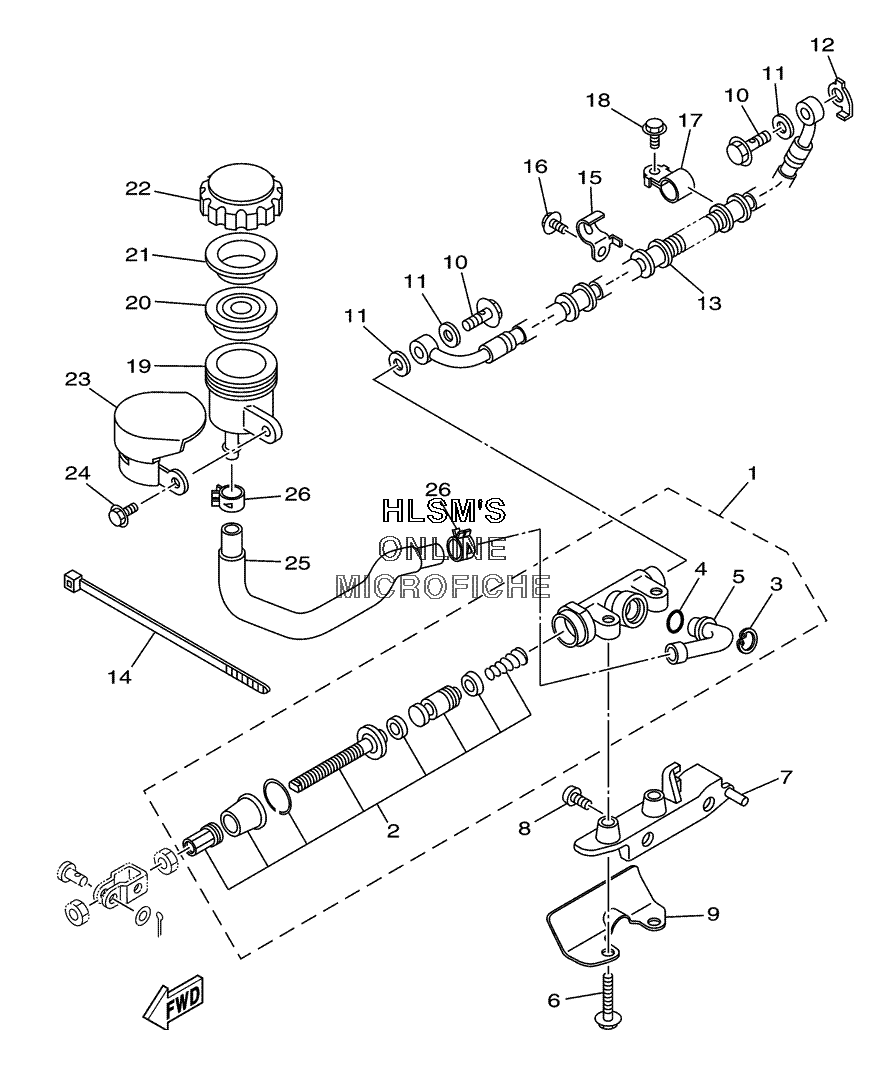

BRAKE - REAR MASTER CYLINDER для Yamaha V STAR 1100 MDNT CUSTOM - 2005 года выпуска
-
№АртикулНазвание
-
15EL-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
25EL-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
32VN-25866-00-00 ...CIRCLIP...CIRCLIP
-
493210-15620-00 ...O-RING...O-RING
-
53LD-2582A-00-00 ...JOINT...JOINT
-
695027-08035-00 BOLT, FLANGEBOLT, FLANGE
-
75EL-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
892014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
95EL-27491-00-00 PROTECTORPROTECTOR
-
1090401-10159-00 BOLT, UNIONBOLT, UNION
-
1190201-10118-00 WASHER, PLATEWASHER, PLATE
-
125EL-25844-00-00 WASHER, LOCKWASHER, LOCK
-
135EL-2581J-01-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
141UA-82591-00-00 BANDBAND
-
153XV-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
1695027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1790461-10127-00 CLAMPCLAMP
-
1895027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1931A-25894-01-00 TANK, RESERVOIRTANK, RESERVOIR
-
20360-25854-01-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
212GU-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
222KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
235EL-25888-00-00 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
2495027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
255EL-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2690467-14057-00 CLIP, SCISSORCLIP, SCISSOR
