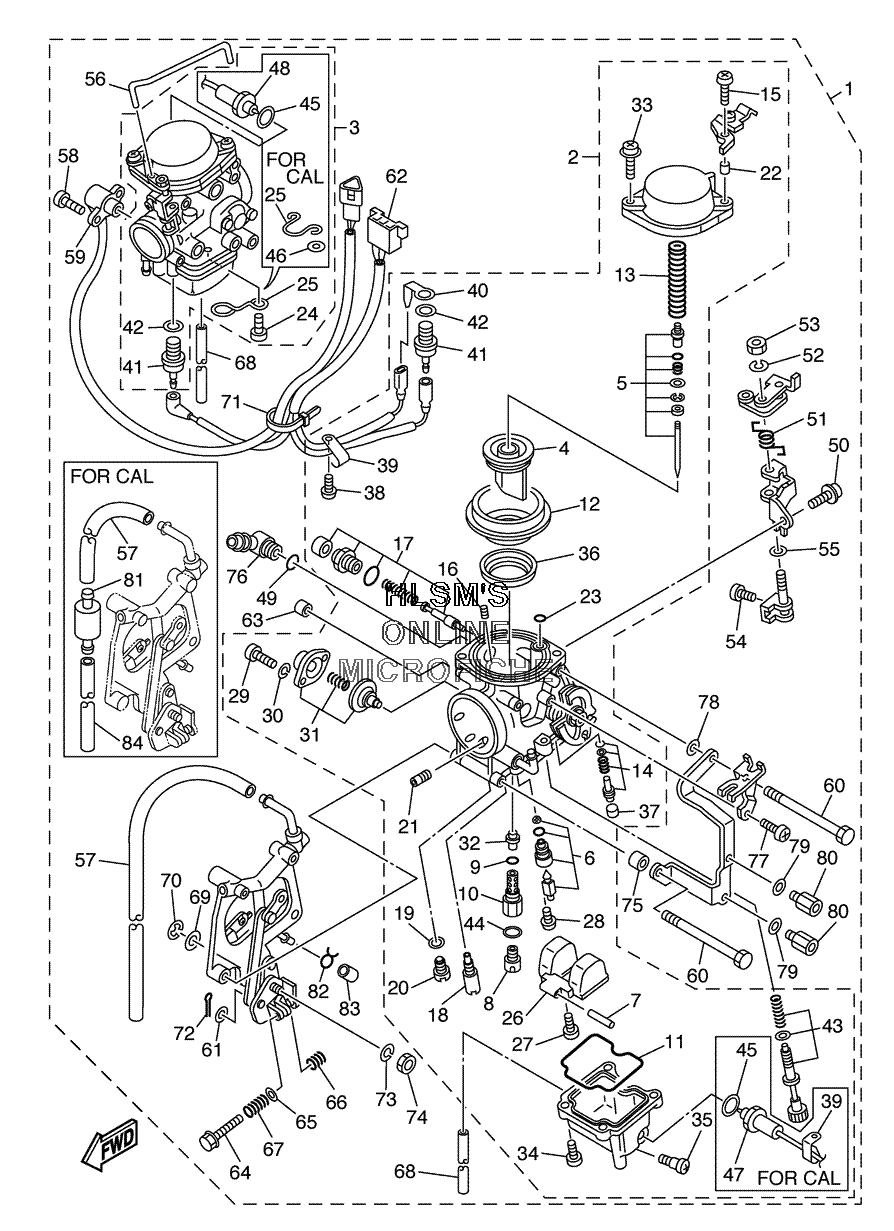

CARBURETOR для Yamaha V STAR 1100 MDNT CUSTOM - 2005 года выпуска
-
№АртикулНазвание
-
15EL-14900-40-00 CARBURETOR ASSY. (EXCEPT CALIF.)CARBURETOR ASSY. (EXCEPT CALIF.)
-
15YS-14900-00-00 CARBURETOR ASSY. (CALIF. ONLY)CARBURETOR ASSY. (CALIF. ONLY)
-
25EL-14901-40-00 ......CARBURETOR ASSY. 1 (REAR #1) (EXCEPT CALIF.)......CARBURETOR ASSY. 1 (REAR #1) (EXCEPT CALIF.)
-
25YS-14901-00-00 ......CARBURETOR ASSY. 1 (REAR #1) (CALIF. ONLY)......CARBURETOR ASSY. 1 (REAR #1) (CALIF. ONLY)
-
35EL-14902-40-00 ......CARBURETOR ASSY. 2 (FRONT #2) (EXCEPT CALIF.)......CARBURETOR ASSY. 2 (FRONT #2) (EXCEPT CALIF.)
-
35YS-14902-00-00 ......CARBURETOR ASSY. 2 (FRONT #2) (CALIF ONLY)......CARBURETOR ASSY. 2 (FRONT #2) (CALIF ONLY)
-
45EL-14112-00-00 ......VALVE, THROTTLE 1......VALVE, THROTTLE 1
-
55EL-1490J-20-00 ............NEEDLE SET (EXCEPT CALIF,)............NEEDLE SET (EXCEPT CALIF,)
-
55EL-1490J-00-00 ............NEEDLE SET (CALIF. ONLY)............NEEDLE SET (CALIF. ONLY)
-
65EL-14107-12-00 ......NEEDLE VALVE SET......NEEDLE VALVE SET
-
7127-14186-00-00 ......PIN, FLOAT......PIN, FLOAT
-
83G2-14231-22-00 ......JET, MAIN (#110) (REAR #1)......JET, MAIN (#110) (REAR #1)
-
83G2-1423A-73-00 ......JET, MAIN (#112.5) (FRONT #2)......JET, MAIN (#112.5) (FRONT #2)
-
83G2-1423A-73-00 ......JET, MAIN (#112.5) (REAR #1)......JET, MAIN (#112.5) (REAR #1)
-
83G2-14231-23-00 ......JET, MAIN (#115) (FRONT #2)......JET, MAIN (#115) (FRONT #2)
-
9583-14561-00-00 ......O-RING......O-RING
-
105EL-14261-00-00 ............HOLDER (EXCEPT CALIF.)............HOLDER (EXCEPT CALIF.)
-
105KS-14261-00-00 ............HOLDER (CALIF. ONLY)............HOLDER (CALIF. ONLY)
-
115DM-14561-00-00 ......O-RING......O-RING
-
125EL-24411-00-00 ......DIAPHRAGM......DIAPHRAGM
-
134KM-14933-00-00 ......SPRING, DIAPHRAGM......SPRING, DIAPHRAGM
-
144SV-14105-00-00 ............PILOT SCREW SET (EXCEPT CALIF.)............PILOT SCREW SET (EXCEPT CALIF.)
-
144XY-14105-00-00 ............PILOT SCREW SET (CALIF. ONLY)............PILOT SCREW SET (CALIF. ONLY)
-
1598502-05016-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
161HX-14231-29-00 ......JET, MAIN (#145)......JET, MAIN (#145)
-
175EL-1410A-00-00 ......STARTER SET......STARTER SET
-
184KM-14142-17-00 ......JET, PILOT (#17.5)......JET, PILOT (#17.5)
-
195EL-14918-00-00 ......RING......RING
-
203G2-1423A-59-00 ......JET, MAIN (#42.5)......JET, MAIN (#42.5)
-
211HX-1423E-25-00 ......JET, MAIN (#63.8)......JET, MAIN (#63.8)
-
224KM-14194-00-00 ......RING......RING
-
23354-14147-00-00 ......O-RING......O-RING
-
2498507-04012-00 ......SCREW, PAN HEAD (FRONT #2)......SCREW, PAN HEAD (FRONT #2)
-
255EL-14919-00-00 ............CLIP (FRONT #2) (EXCEPT CALIF.)............CLIP (FRONT #2) (EXCEPT CALIF.)
-
2533M-14139-00-00 ............CLIP, PIPE (FRONT #2) (CALIF. ONLY)............CLIP, PIPE (FRONT #2) (CALIF. ONLY)
-
265DM-14985-00-00 ......FLOAT......FLOAT
-
2798507-04008-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
281FN-14565-00-00 ......SCREW......SCREW
-
2998507-04014-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
3092907-04100-00 ......WASHER, SPRING......WASHER, SPRING
-
315EL-1490H-00-00 ......DIAPHRAGM SET 5......DIAPHRAGM SET 5
-
325DM-14141-40-00 ......NOZZLE, MAIN......NOZZLE, MAIN
-
334KM-14216-00-00 ............SCREW (REAR #1) (EXCEPT CALIF.)............SCREW (REAR #1) (EXCEPT CALIF.)
-
334KM-14216-00-00 ............SCREW (FRONT #2) (CALIF. ONLY)............SCREW (FRONT #2) (CALIF. ONLY)
-
3498507-04010-00 .........SCREW, PAN HEAD (FRONT #2) (EXCEPT CALIF.).........SCREW, PAN HEAD (FRONT #2) (EXCEPT CALIF.)
-
3498507-04010-00 .........SCREW, PAN HEAD (REAR #1) (CALIF. ONLY).........SCREW, PAN HEAD (REAR #1) (CALIF. ONLY)
-
3512R-14191-00-00 ......PLUG, DRAIN......PLUG, DRAIN
-
365EL-14561-00-00 ......O-RING......O-RING
-
373F9-14118-00-00 ......CAP......CAP
-
3898507-04006-00 ......SCREW, PAN HEAD (REAR #1)......SCREW, PAN HEAD (REAR #1)
-
3990461-06087-00 ............CLAMP (REAR #1) (EXCEPT CALIF.)............CLAMP (REAR #1) (EXCEPT CALIF.)
-
3990461-06087-00 ............CLAMP (REAR #1) (CALIF. ONLY)............CLAMP (REAR #1) (CALIF. ONLY)
-
404DH-82103-00-00 ......TERMINAL 1 (REAR #1)......TERMINAL 1 (REAR #1)
-
415FU-83790-20-00 ......HEATER ASSY. (30W)......HEATER ASSY. (30W)
-
4290201-08016-00 ......WASHER, PLATE......WASHER, PLATE
-
435EL-14103-00-00 ......THROTTLE SCREW SET (REAR #1)......THROTTLE SCREW SET (REAR #1)
-
4422U-14561-00-00 ......O-RING......O-RING
-
45256-14956-01-00 ......WASHER......WASHER
-
4692902-04600-00 ......WASHER, PLATE (FRONT #2)......WASHER, PLATE (FRONT #2)
-
475KS-1410H-00-00 ......FUEL CUT SOLENOID VALVE (REAR #1)......FUEL CUT SOLENOID VALVE (REAR #1)
-
485KS-1410H-10-00 ......FUEL CUT SOLENOID VALVE (FRONT #2)......FUEL CUT SOLENOID VALVE (FRONT #2)
-
493LN-1416A-00-00 ...O-RING...O-RING
-
504SV-24453-00-00 ...SCREW...SCREW
-
515EL-14935-00-00 ...SPRING...SPRING
-
5292902-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
5395302-05700-00 ...NUT...NUT
-
5411H-14991-00-00 ...SCREW...SCREW
-
5531H-14194-00-00 ...RING...RING
-
565EL-14577-00-00 ...ROD...ROD
-
574YW-14987-00-00 ......HOSE (EXCEPT CALIF.)......HOSE (EXCEPT CALIF.)
-
575EL-14987-10-00 ......HOSE (CALIF. ONLY)......HOSE (CALIF. ONLY)
-
584WM-14565-00-00 ...SCREW...SCREW
-
595EL-85885-00-00 ...THROTTLE SENSOR ASSY....THROTTLE SENSOR ASSY.
-
605EL-14592-00-00 ...SCREW...SCREW
-
614NK-14285-00-00 ...WASHER...WASHER
-
625KS-81517-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
635EL-14196-00-00 ...PIPE...PIPE
-
645EL-14991-00-00 ...SCREW...SCREW
-
6522F-14117-00-00 ...WASHER, PLUG SCREW...WASHER, PLUG SCREW
-
665EL-14212-00-00 ...SPRING, PILOT ADJUSTING...SPRING, PILOT ADJUSTING
-
673F7-14133-00-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
685EL-14197-10-00 ...PIPE...PIPE
-
691A8-14953-00-00 ...WASHER...WASHER
-
70812-14137-00-00 ...CLIP...CLIP
-
7135H-14139-00-00 ...CLIP, PIPE (EXCEPT CALIF.)...CLIP, PIPE (EXCEPT CALIF.)
-
7135H-14139-00-00 ...CLIP, PIPE (CALIF. ONLY)...CLIP, PIPE (CALIF. ONLY)
-
7291492-10008-00 ...PIN, COTTER...PIN, COTTER
-
7392906-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
7495382-06700-00 ...NUT...NUT
-
755EL-14149-00-00 ...PIPE...PIPE
-
765EL-14251-00-00 ...NIPPLE...NIPPLE
-
7798507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
7892902-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
791FK-14179-00-00 ...WASHER, STARTER LEVER...WASHER, STARTER LEVER
-
805EL-14592-10-00 ...SCREW...SCREW
-
814X7-2149Y-00-00 ......FILTER ASSY. (CALIF. ONLY)......FILTER ASSY. (CALIF. ONLY)
-
828A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
83895-14169-00-00 ...CAP...CAP
-
845EL-14987-20-00 ......HOSE (CALIF. ONLY)......HOSE (CALIF. ONLY)
