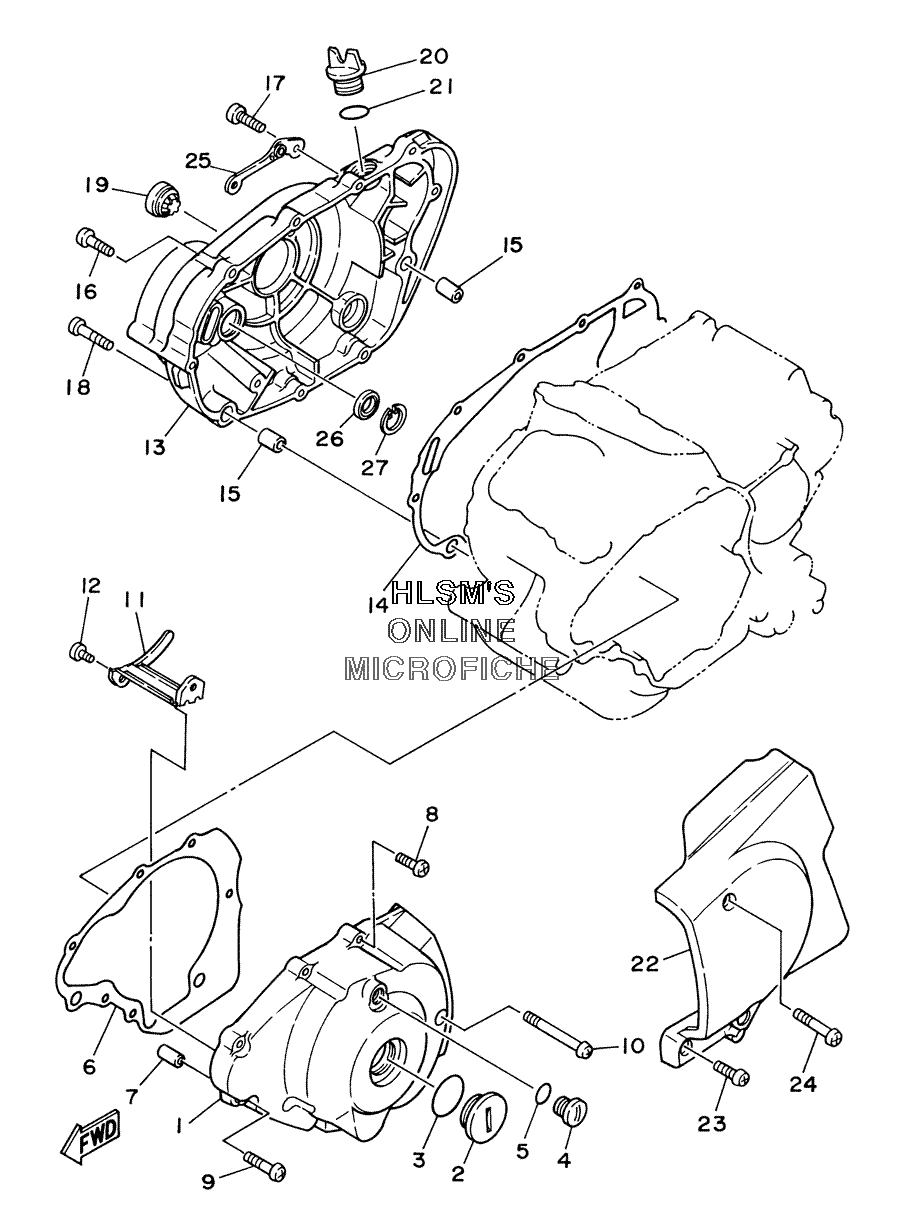

CRANKCASE COVER для Yamaha VIRAGO 250 - 2005 года выпуска
-
№АртикулНазвание
-
12UJ-15411-01-00 COVER, CRANKCASE LCOVER, CRANKCASE L
-
290340-32116-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
393210-32172-00 O-RINGO-RING
-
490340-14068-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
593210-14369-00 O-RINGO-RING
-
64RF-15451-00-00 GASKET, CRANKCASE COVERGASKET, CRANKCASE COVER
-
799530-12016-00 PIN, DOWELPIN, DOWEL
-
898504-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
998504-06035-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1098504-06070-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1190465-06322-00 CLAMPCLAMP
-
1298507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
132UJ-15421-00-00 COVER, CRANKCASE RCOVER, CRANKCASE R
-
144RF-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1599530-12016-00 PIN, DOWELPIN, DOWEL
-
1698504-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1790153-06042-00 SCREW, HEXAGONSCREW, HEXAGON
-
1898504-06035-00 SCREW, PAN HEADSCREW, PAN HEAD
-
193Y1-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
203Y1-15363-00-00 PLUG, OILPLUG, OIL
-
2193210-19123-00 O-RINGO-RING
-
222UJ-15431-01-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
2398504-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2498504-06050-00 SCREW, PAN HEADSCREW, PAN HEAD
-
252UJ-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
2693101-14089-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
2799009-25500-00 CIRCLIP, R-TYPECIRCLIP, R-TYPE
