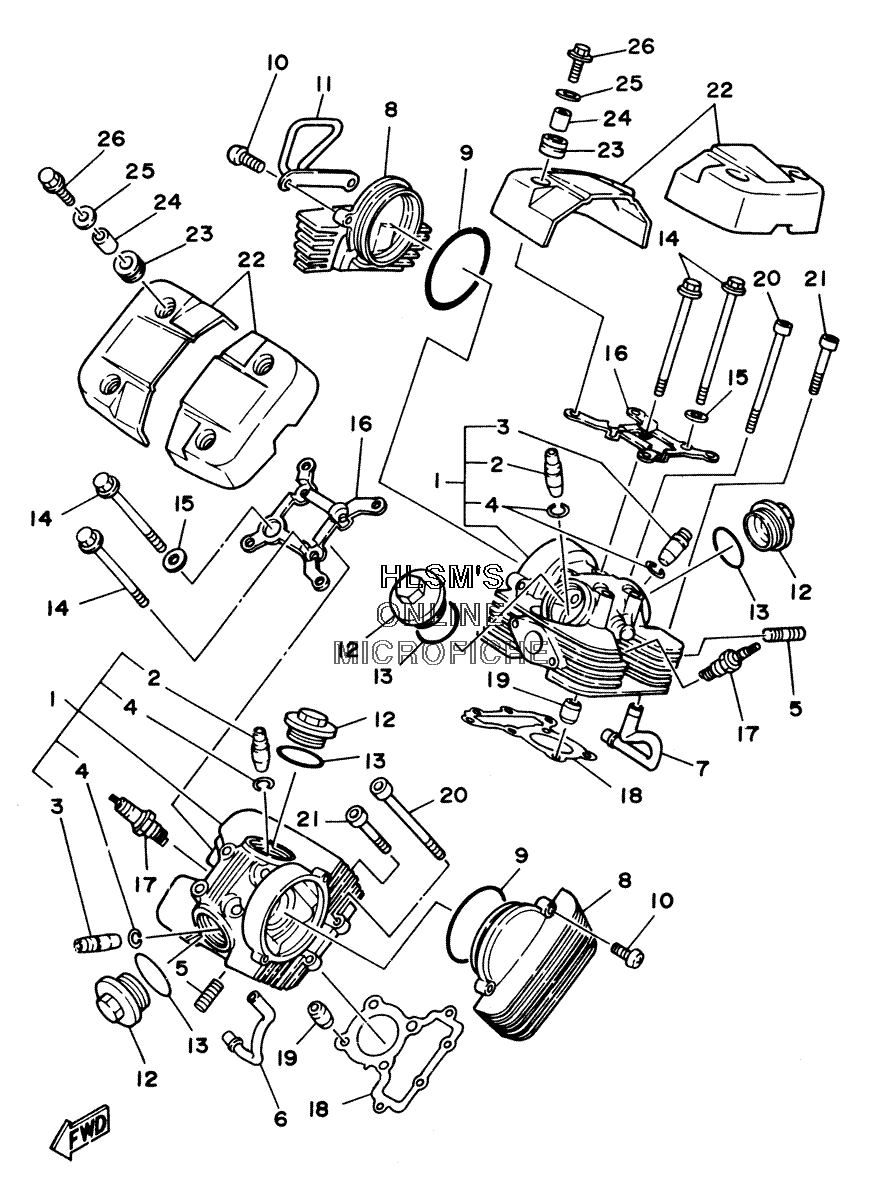

CYLINDER HEAD для Yamaha VIRAGO 250 - 2005 года выпуска
-
№АртикулНазвание
-
12UJ-11102-00-00 CYLINDER HEAD ASSY. (EXCEPT CALIF.)CYLINDER HEAD ASSY. (EXCEPT CALIF.)
-
13BG-11102-00-00 CYLINDER HEAD ASSY. (CALIF. ONLY)CYLINDER HEAD ASSY. (CALIF. ONLY)
-
22UJ-11133-10-00 ...GUIDE, INTK VLV 1 O/S...GUIDE, INTK VLV 1 O/S
-
322F-11134-10-00 ...GUIDE, EXST VLV 1 O/S...GUIDE, EXST VLV 1 O/S
-
493440-10109-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
590116-06228-00 BOLT, STUDBOLT, STUD
-
63BG-14871-00-00 PIPE 1PIPE 1
-
73BG-14872-00-00 PIPE 2PIPE 2
-
82UJ-11185-01-00 COVER, CYLINDER HEAD SIDE 1COVER, CYLINDER HEAD SIDE 1
-
993210-78544-00 O-RINGO-RING
-
1098507-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
112UJ-11152-00-00 BRACKET, CYLINDER HEAD COVERBRACKET, CYLINDER HEAD COVER
-
1222F-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
1393210-44704-00 O-RINGO-RING
-
1490105-08324-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1590201-08609-00 WASHER, PLATEWASHER, PLATE
-
162UJ-11142-01-00 BRACKET, CYLINDER HEAD COVER 2BRACKET, CYLINDER HEAD COVER 2
-
1794701-00256-00 PLUG, SPARK (NGK C6HSA) (OPT)PLUG, SPARK (NGK C6HSA) (OPT)
-
1794701-00257-00 PLUG, SPARK (ND U20FS-U) (OPT)PLUG, SPARK (ND U20FS-U) (OPT)
-
182UJ-11181-01-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1999530-10114-00 PIN, DOWELPIN, DOWEL
-
2091317-06110-00 BOLTBOLT
-
2191317-06040-00 BOLTBOLT
-
223DM-11186-01-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
2390480-13018-00 GROMMETGROMMET
-
2490387-06043-00 COLLARCOLLAR
-
2590201-06071-00 WASHER, PLATEWASHER, PLATE
-
2695024-06020-00 BOLT, FLANGEBOLT, FLANGE
