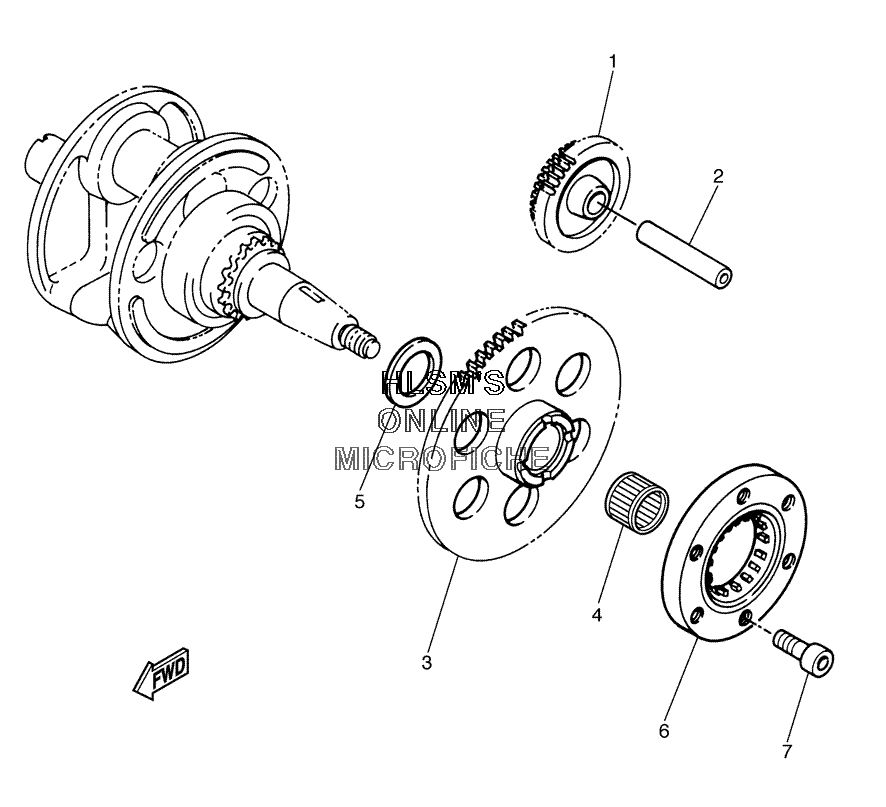

STARTER CLUTCH для Yamaha VIRAGO 250 - 2005 года выпуска
-
№АртикулНазвание
-
12UJ-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
25H0-15521-00-00 SHAFT 1SHAFT 1
-
35KR-15517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
493310-22559-00 BEARINGBEARING
-
590201-25291-00 WASHER, PLATEWASHER, PLATE
-
651Y-15590-01-00 STARTER ONE-WAY ASSY.STARTER ONE-WAY ASSY.
-
791317-08018-00 BOLTBOLT
