VALVE для Yamaha VIRAGO 250 - 2005 года выпуска
-

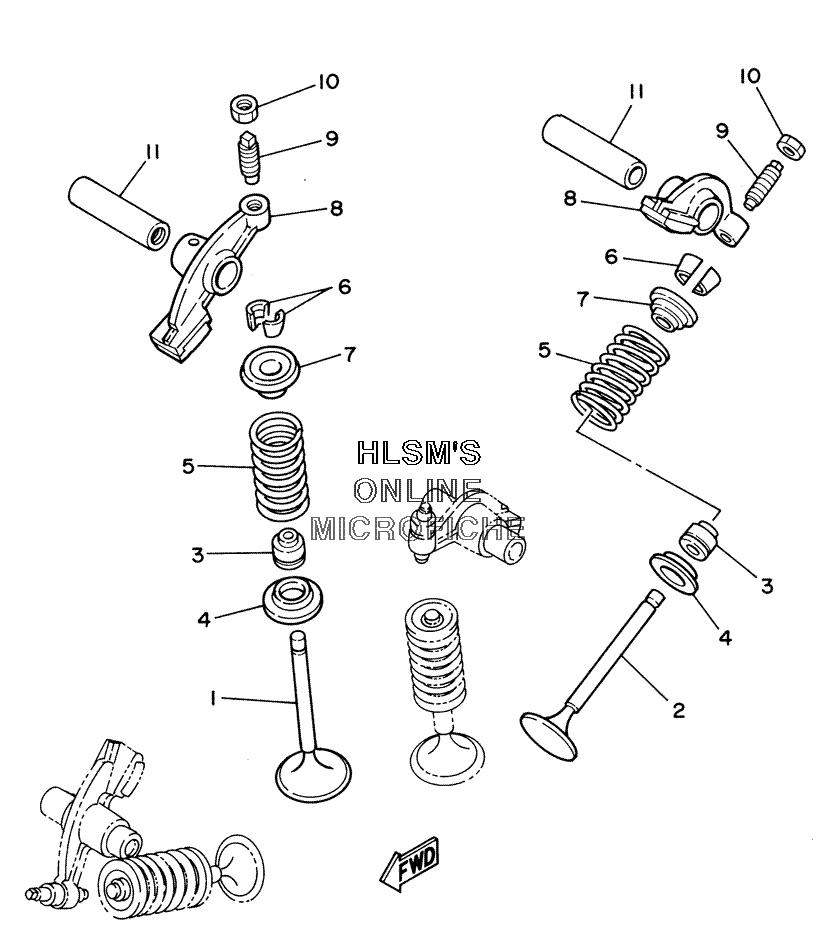

№АртикулНазвание
-
15KR-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
25KR-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
322F-12119-01-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
422F-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
55KR-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
622F-12118-01-00 COTTER, VALVECOTTER, VALVE
-
722F-12117-02-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
850M-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
922F-12159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1090170-05302-00 NUTNUT
-
1122F-12156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
