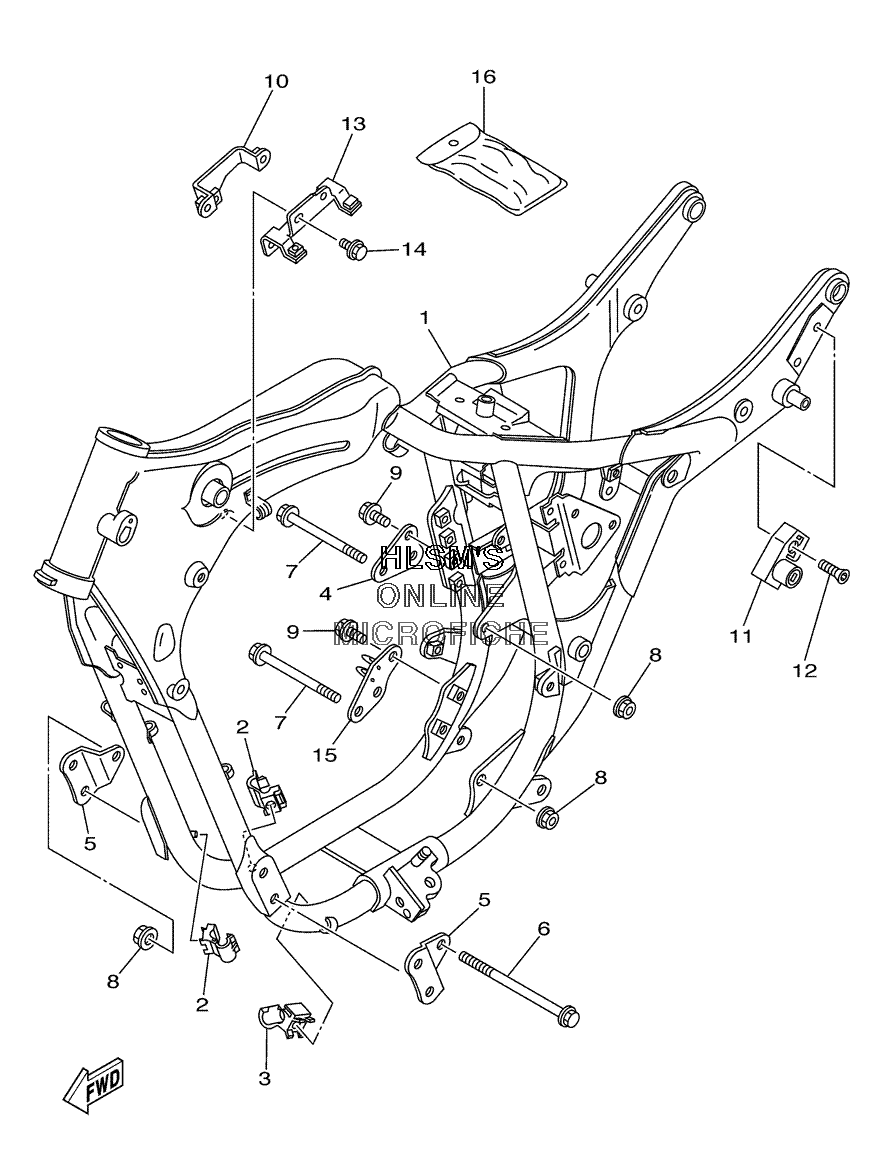

FRAME для Yamaha VIRAGO 250 - 2005 года выпуска
-
№АртикулНазвание
-
12UJ-21110-20-33 FRAME COMP. (BLACK)FRAME COMP. (BLACK)
-
290464-05188-00 CLAMPCLAMP
-
390464-10190-00 CLAMPCLAMP
-
42UJ-21318-01-00 STAY, ENGINE 5STAY, ENGINE 5
-
52UJ-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
695814-08150-00 BOLT, FLANGEBOLT, FLANGE
-
795814-08110-00 BOLT, FLANGEBOLT, FLANGE
-
890179-08656-00 NUTNUT
-
995817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
102UJ-21243-00-00 PLATE, BRIDGEPLATE, BRIDGE
-
1126H-21308-00-00 HELMET HANGER ASSY.HELMET HANGER ASSY.
-
1290149-06154-00 SCREWSCREW
-
132UJ-2135Y-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
1495807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
152UJ-21319-00-00 STAY, ENGINE 6STAY, ENGINE 6
-
162UJ-28100-00-00 TOOL KITTOOL KIT
