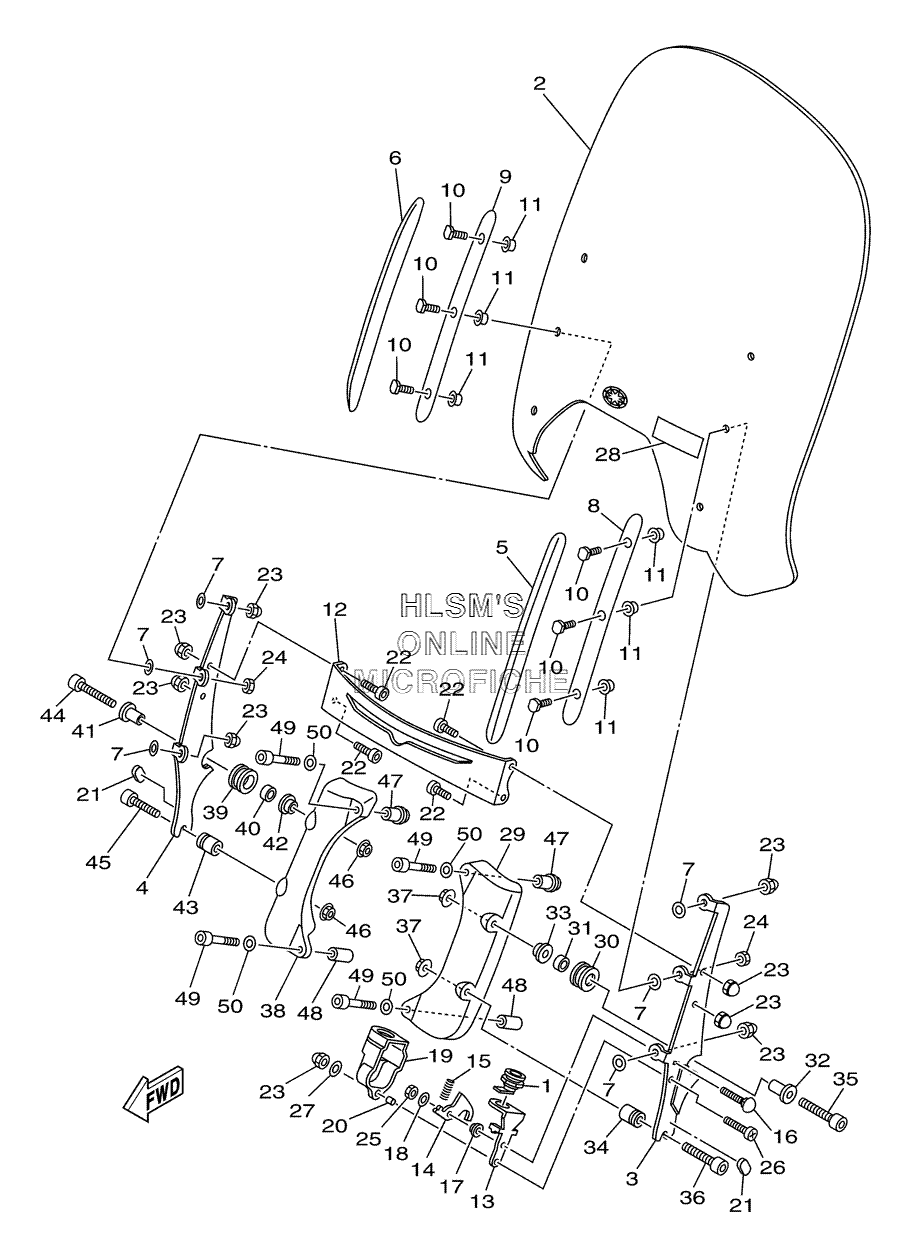

COWLING для Yamaha STRATOLINER MIDNIGHT - 2006 года выпуска
-
№АртикулНазвание
-
12C5-28409-00-00 LOCK ASSY. 2LOCK ASSY. 2
-
22C5-F837U-00-00 SCREENSCREEN
-
32C5-F836A-00-00 BRACKET 1BRACKET 1
-
42C5-F836E-00-00 BRACKET 2BRACKET 2
-
52C5-F8336-00-00 PLATEPLATE
-
62C5-F8337-00-00 HOLDERHOLDER
-
72C5-F8371-00-00 DAMPERDAMPER
-
82C5-F8372-00-00 DAMPERDAMPER
-
92C5-F837J-00-00 DAMPER 5DAMPER 5
-
102C5-F8331-00-00 BOLT, LEG SHIELDBOLT, LEG SHIELD
-
112C5-F8373-00-00 COLLARCOLLAR
-
122C5-F8361-00-00 PLATE, FRONTPLATE, FRONT
-
132C5-F8356-00-00 STAY 1STAY 1
-
142C5-F8379-00-00 HOOKHOOK
-
152C5-F8388-00-00 SPRINGSPRING
-
162C5-F8333-00-00 BOLTBOLT
-
172C5-F8321-00-00 STAY 1STAY 1
-
182C5-F8319-00-00 WASHERWASHER
-
192C5-F8365-00-00 COVERCOVER
-
202C5-F8322-00-00 STAY 2STAY 2
-
212C5-F834E-00-00 DAMPER 1DAMPER 1
-
2292014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2395380-06800-00 NUTNUT
-
2495314-06600-00 NUTNUT
-
2595680-06100-00 NUT, UNUT, U
-
2698980-06016-00 SCREW, BINDSCREW, BIND
-
2792990-06200-00 WASHER, PLAINWASHER, PLAIN
-
284NL-F835Y-00-00 LABEL, CAUTIONLABEL, CAUTION
-
292C5-F836F-00-00 BRACKET 3BRACKET 3
-
302C5-F83D1-00-00 STOPPER 1STOPPER 1
-
312C5-F836T-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
322C5-F8329-00-00 SPACERSPACER
-
332C5-F8332-00-00 STAY, LEG SHIELDSTAY, LEG SHIELD
-
342C5-F83D2-00-00 STOPPER 2STOPPER 2
-
3592014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3692014-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3795604-08200-00 NUT, U FLANGENUT, U FLANGE
-
382C5-F836G-00-00 BRACKET 4BRACKET 4
-
392C5-F83D1-00-00 STOPPER 1STOPPER 1
-
402C5-F836T-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
412C5-F8329-00-00 SPACERSPACER
-
422C5-F8332-00-00 STAY, LEG SHIELDSTAY, LEG SHIELD
-
432C5-F83D2-00-00 STOPPER 2STOPPER 2
-
4492014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4592014-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4695604-08200-00 NUT, U FLANGENUT, U FLANGE
-
472C5-F8357-00-00 STAY 2STAY 2
-
482C5-F8358-00-00 STAY 3STAY 3
-
4991314-08045-00 BOLTBOLT
-
5092990-08200-00 WASHER, PLAINWASHER, PLAIN
