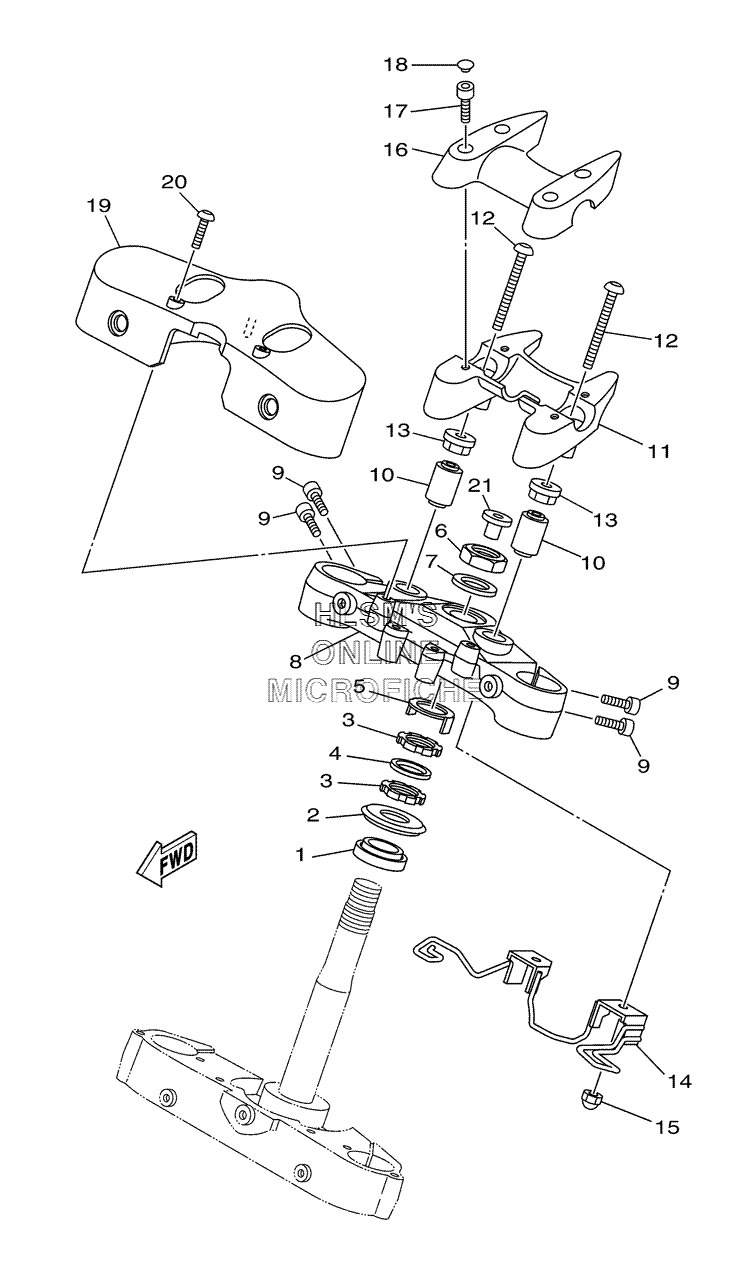

STEERING для Yamaha STRATOLINER MIDNIGHT - 2006 года выпуска
-
№АртикулНазвание
-
193332-00091-00 BEARINGBEARING
-
24XV-23415-01-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
390179-30691-00 NUTNUT
-
490202-30235-00 WASHER, PLATEWASHER, PLATE
-
54XV-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
690170-28419-00 NUTNUT
-
790201-281U8-00 WASHER, PLATEWASHER, PLATE
-
81D7-23435-00-00 CROWN, HANDLECROWN, HANDLE
-
990110-06178-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
103VD-23434-00-00 HOLDER, DAMPERHOLDER, DAMPER
-
111D7-23442-20-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1290111-10024-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
131D7-2344E-00-00 HOLDER, HANDLE UPPER 1HOLDER, HANDLE UPPER 1
-
141D7-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
1590176-10003-00 NUT, CROWNNUT, CROWN
-
161D7-23441-20-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1791314-08030-00 BOLTBOLT
-
1890338-08163-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
191D7-23437-10-00 COVER, CROWNCOVER, CROWN
-
2090111-08025-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2190480-14009-00 GROMMETGROMMET
