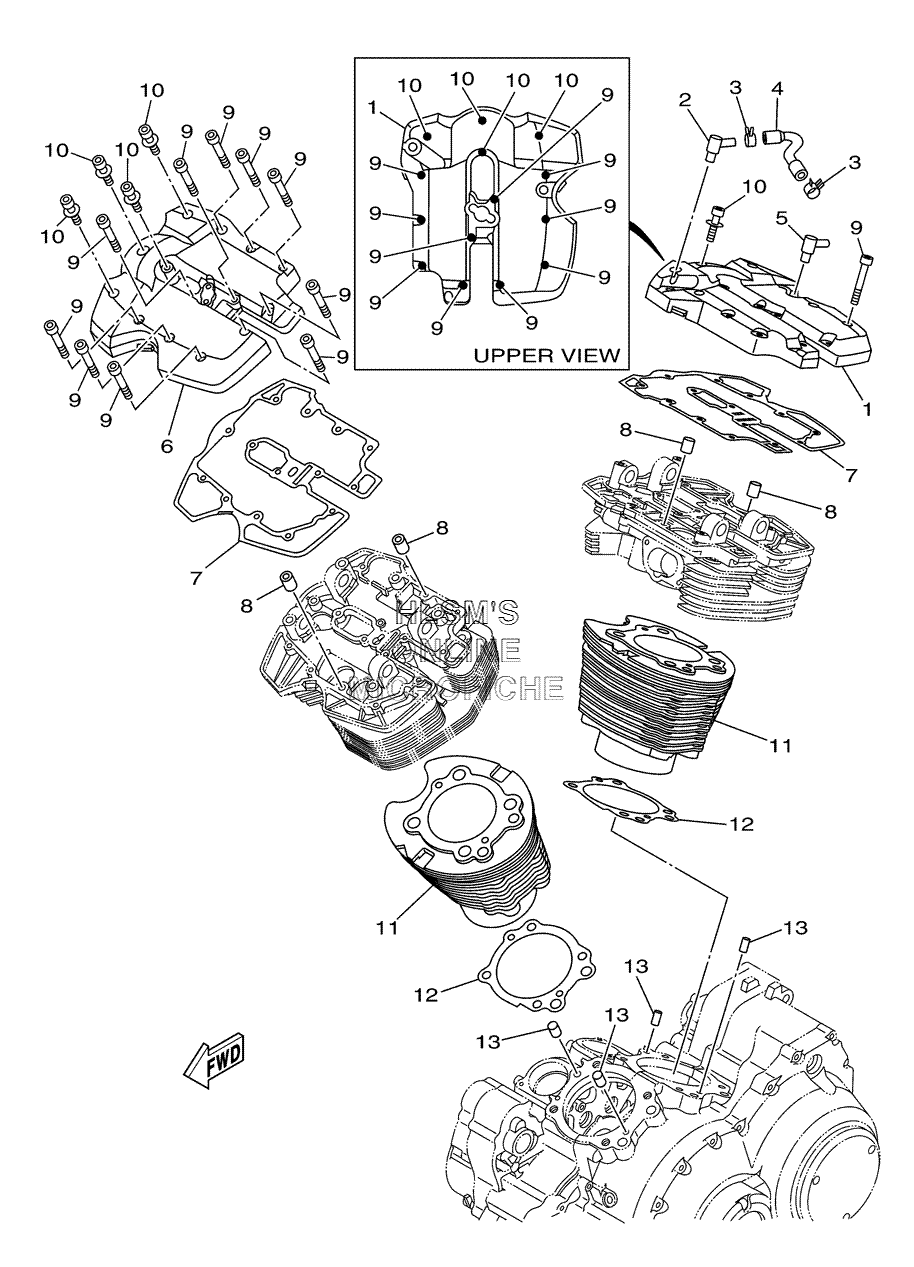

CYLINDER для Yamaha STRATOLINER MIDNIGHT - 2006 года выпуска
-
№АртикулНазвание
-
11D7-11191-10-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
25PX-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
390467-15001-00 CLIPCLIP
-
41D7-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
54GL-15371-01-00 BREATHERBREATHER
-
61D7-11192-10-00 COVER, CYLINDER HEAD 2COVER, CYLINDER HEAD 2
-
71D7-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
891808-16023-00 PIN, DOWELPIN, DOWEL
-
990110-06207-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090110-06220-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
111D7-11311-00-00 CYLINDER 1CYLINDER 1
-
121D7-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
1390387-062T5-00 COLLARCOLLAR
