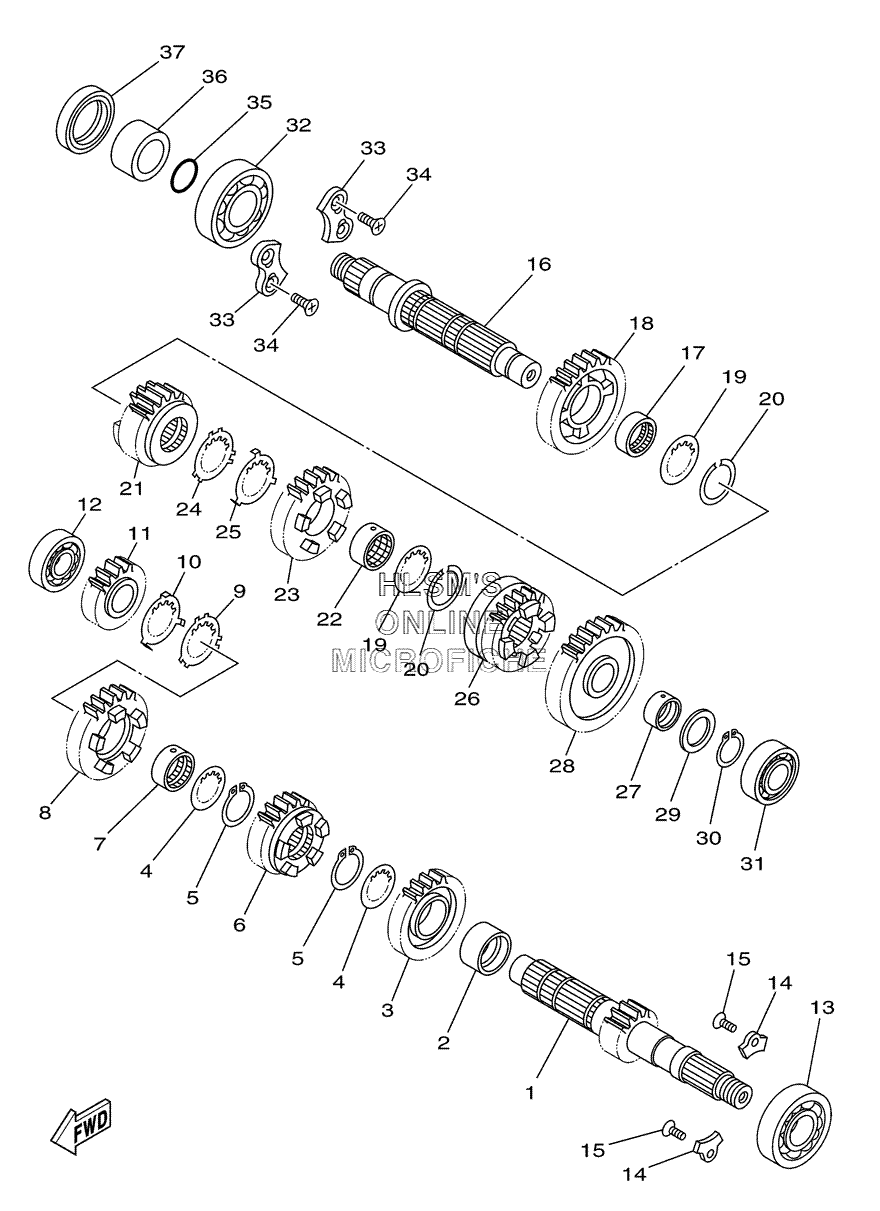

TRANSMISSION для Yamaha STRATOLINER MIDNIGHT - 2006 года выпуска
-
№АртикулНазвание
-
11D7-17411-00-00 AXLE, MAIN (16T)AXLE, MAIN (16T)
-
290387-32004-00 COLLARCOLLAR
-
31D7-17141-00-00 GEAR, 4TH PINION (28T)GEAR, 4TH PINION (28T)
-
490209-28331-00 WASHERWASHER
-
593440-31172-00 CIRCLIPCIRCLIP
-
61D7-17131-01-00 GEAR, 3RD PINION (25T)GEAR, 3RD PINION (25T)
-
790387-28005-00 COLLARCOLLAR
-
81D7-17151-00-00 GEAR, 5TH PINION (30T)GEAR, 5TH PINION (30T)
-
990209-29329-00 WASHERWASHER
-
1090209-28330-00 WASHERWASHER
-
111D7-17121-00-00 GEAR, 2ND PINION (21T)GEAR, 2ND PINION (21T)
-
1293306-20593-00 BEARINGBEARING
-
1393306-37806-00 BEARINGBEARING
-
143AK-15383-01-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1590151-06024-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
161D7-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
1790387-3311C-00 COLLARCOLLAR
-
181D7-17221-00-00 GEAR, 2ND WHEEL (33T)GEAR, 2ND WHEEL (33T)
-
1990209-30344-00 WASHERWASHER
-
2093440-32063-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
211D7-17251-00-00 GEAR, 5TH WHEEL (24T)GEAR, 5TH WHEEL (24T)
-
2290387-3310V-00 COLLARCOLLAR
-
231D7-17231-00-00 GEAR, 3RD WHEEL (29T)GEAR, 3RD WHEEL (29T)
-
2490209-30345-00 WASHERWASHER
-
2590209-30343-00 WASHERWASHER
-
261D7-17241-01-00 GEAR, 4TH WHEEL (26T)GEAR, 4TH WHEEL (26T)
-
2790387-25008-00 COLLARCOLLAR
-
281D7-17211-01-00 GEAR, 1ST WHEEL (38T)GEAR, 1ST WHEEL (38T)
-
2990201-256K6-00 WASHER, PLATE (0.9T)WASHER, PLATE (0.9T)
-
3093410-25017-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
3193306-20593-00 BEARINGBEARING
-
3293306-30641-00 BEARINGBEARING
-
3331A-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
3490151-08002-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
3593210-28001-00 O-RINGO-RING
-
3690387-32006-00 COLLARCOLLAR
-
3793103-44011-00 OIL SEALOIL SEAL
