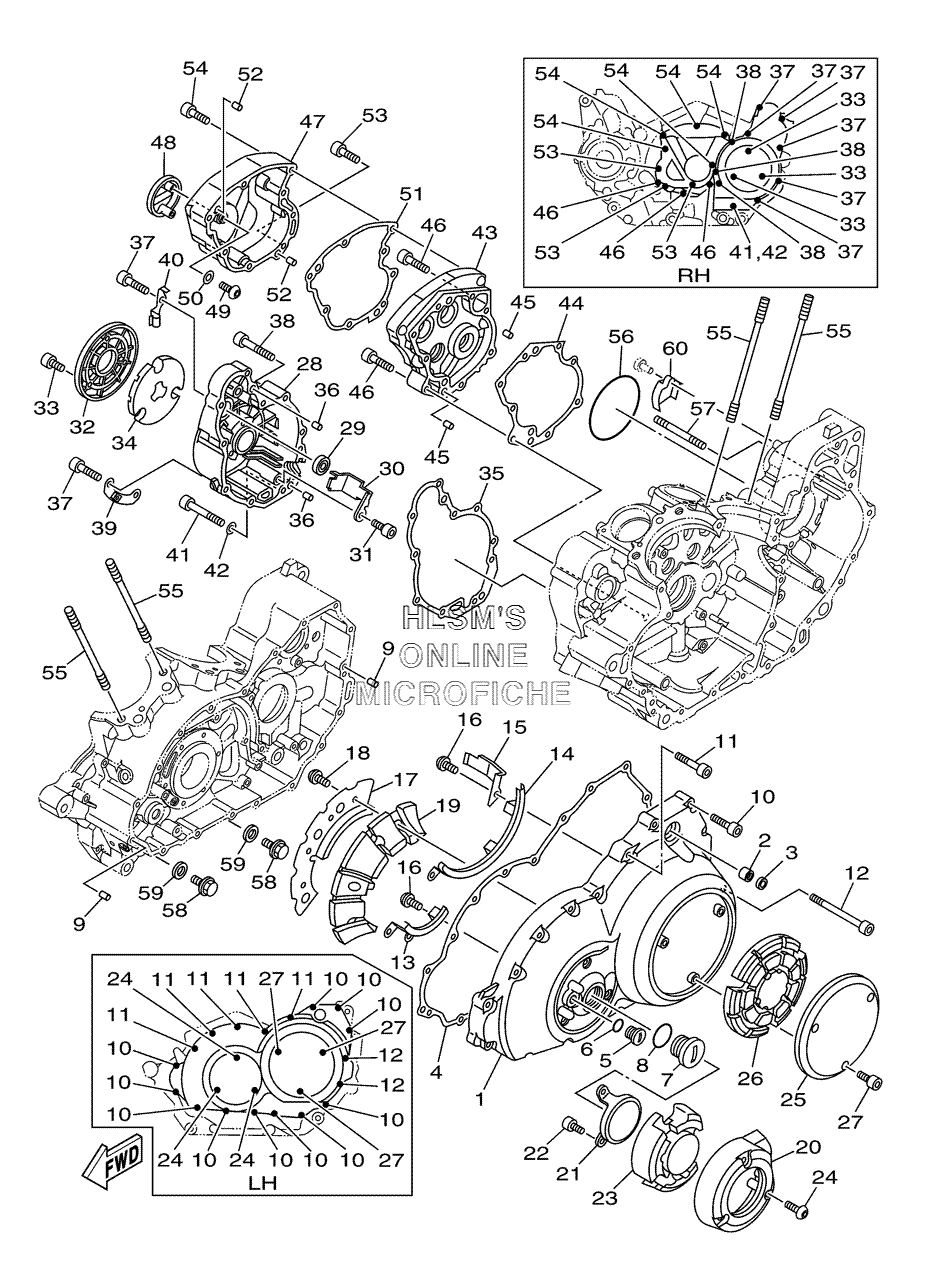

CRANKCASE COVER для Yamaha STRATOLINER MIDNIGHT - 2006 года выпуска
-
№АртикулНазвание
-
11D7-15411-10-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
293317-11287-00 BEARINGBEARING
-
393102-12224-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
41D7-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
590340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
693210-14369-00 O-RINGO-RING
-
790340-32080-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
893210-32172-00 O-RINGO-RING
-
999530-08012-00 PIN, DOWELPIN, DOWEL
-
1091314-06035-00 BOLTBOLT
-
1191314-06045-00 BOLTBOLT
-
1291314-06100-00 BOLTBOLT
-
131D7-15142-00-00 GUIDE 1GUIDE 1
-
141D7-15143-00-00 GUIDEGUIDE
-
151D7-15484-00-00 CLAMP 2CLAMP 2
-
1690149-06069-00 SCREWSCREW
-
171D7-15645-01-00 SHIM, KICK SHAFTSHIM, KICK SHAFT
-
1890149-06069-00 SCREWSCREW
-
191D7-1542B-01-00 DAMPER 2DAMPER 2
-
201D7-15423-10-00 COVER 2COVER 2
-
211D7-15425-10-00 COVER, GENERATOR 2COVER, GENERATOR 2
-
2291312-05010-00 BOLTBOLT
-
231D7-15316-00-00 DAMPER, ENGINE MOUNT 1DAMPER, ENGINE MOUNT 1
-
2492014-06040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
251D7-15415-10-00 COVER, GENERATORCOVER, GENERATOR
-
261D7-1542A-00-00 DAMPER 1DAMPER 1
-
2790110-06254-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
281D7-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
2993306-00006-00 BEARINGBEARING
-
304WM-15377-00-00 GUIDE, INLETGUIDE, INLET
-
3190149-06071-00 SCREWSCREW
-
321D7-15492-10-00 COVERCOVER
-
3390110-05013-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
341D7-15326-00-00 DAMPER, ENGINE MOUNT 2DAMPER, ENGINE MOUNT 2
-
351D7-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
3699530-08012-00 PIN, DOWELPIN, DOWEL
-
3791314-06035-00 BOLTBOLT
-
3891314-06055-00 BOLTBOLT
-
391D7-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
401D7-2612E-00-00 BRACKETBRACKET
-
4191314-06065-00 BOLTBOLT
-
4290430-06014-00 GASKETGASKET
-
431D7-15430-00-00 CRANKCASE COVER ASSY 3CRANKCASE COVER ASSY 3
-
441D7-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
4599530-08012-00 PIN, DOWELPIN, DOWEL
-
4690110-06197-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
471D7-15429-10-00 COVER, SHIFTERCOVER, SHIFTER
-
481D7-15427-10-00 COVER, CAP 2COVER, CAP 2
-
4990149-06069-00 SCREWSCREW
-
5090430-06014-00 GASKETGASKET
-
511D7-12286-00-00 GASKET, DECOMPRESSIONGASKET, DECOMPRESSION
-
5299530-08012-00 PIN, DOWELPIN, DOWEL
-
5391314-06025-00 BOLTBOLT
-
5491314-06040-00 BOLTBOLT
-
5590116-12240-00 BOLT, STUDBOLT, STUD
-
5693210-85M32-00 O-RINGO-RING
-
5790116-10028-00 BOLT, STUDBOLT, STUD
-
5890340-14005-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
59214-11198-01-00 GASKETGASKET
-
601D7-15413-00-00 COVERCOVER
