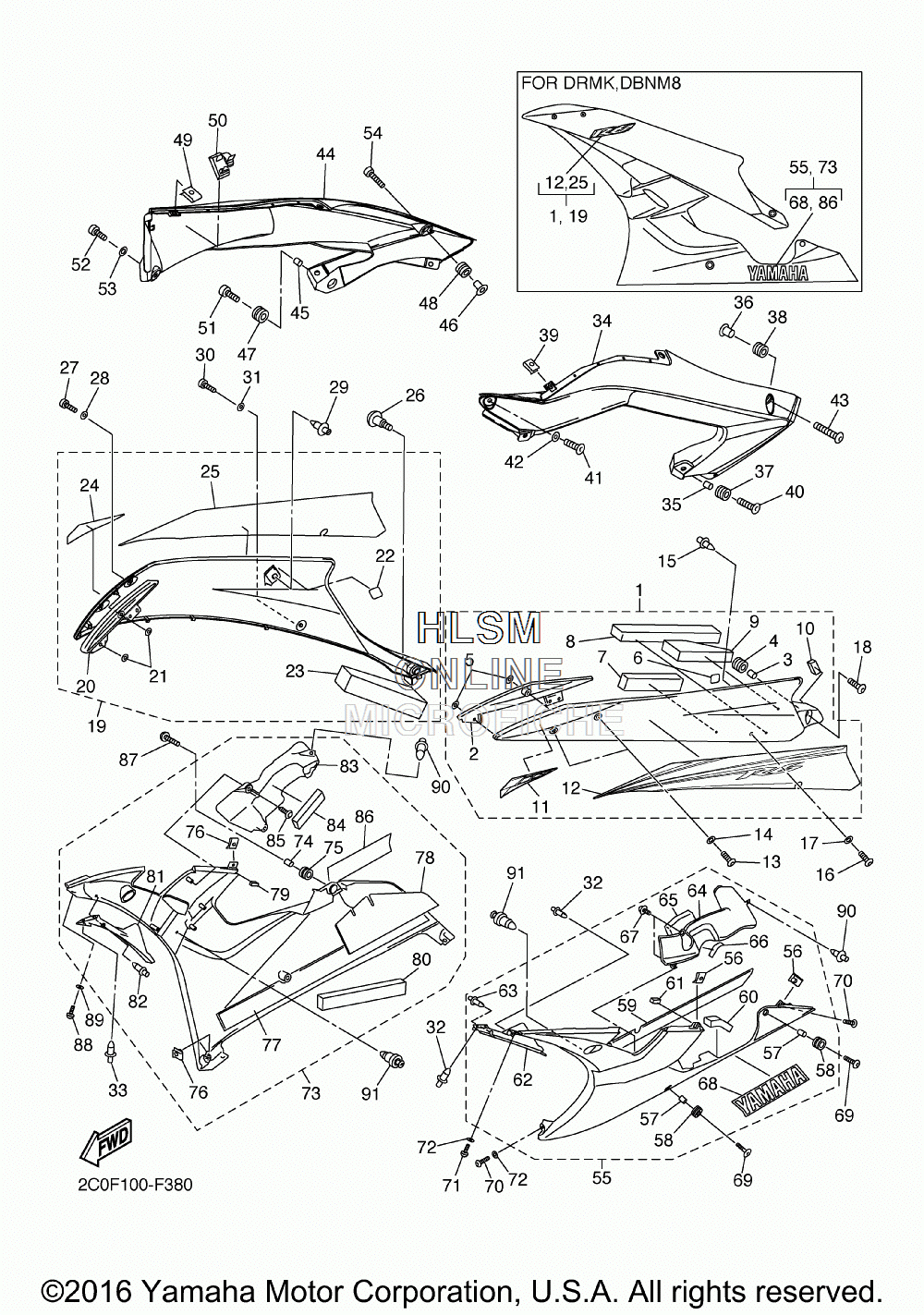

COWLING 2 для Yamaha R6 (2C0F/2C0G) [YZFR6W/C] - 2007 года выпуска
-
№АртикулНазвание
-
12C0-Y283U-60-P0 PANEL ASSEMBLY 1 (OPT) (FOR DPBMC)PANEL ASSEMBLY 1 (OPT) (FOR DPBMC)
-
12C0-Y283U-70-P2 PANEL ASSEMBLY 1 (OPT) (FOR DRMK, DBNM8)PANEL ASSEMBLY 1 (OPT) (FOR DRMK, DBNM8)
-
22C0-28219-00-00 ...COVER 1...COVER 1
-
390387-06057-00 ...COLLAR...COLLAR
-
490480-14003-00 ...GROMMET...GROMMET
-
590183-05M02-00 ...NUT, SPRING...NUT, SPRING
-
61UF-15379-00-00 ...SEAL...SEAL
-
72C0-2836T-00-00 ...DAMPER, LOCATING 1...DAMPER, LOCATING 1
-
82C0-2837J-00-00 ...DAMPER 5...DAMPER 5
-
92C0-2847S-00-00 ...DAMPER 11...DAMPER 11
-
103XV-21717-00-00 ...DAMPER...DAMPER
-
112C0-283B3-00-00 ...GRAPHIC 19 (FOR DPBMC)...GRAPHIC 19 (FOR DPBMC)
-
122C0-28391-40-00 ...GRAPHIC 1 (OPT) (FOR DPBMC)...GRAPHIC 1 (OPT) (FOR DPBMC)
-
122C0-28328-20-00 ...EMBLEM (OPT) (FOR DRMK, DBNM8)...EMBLEM (OPT) (FOR DRMK, DBNM8)
-
1390111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1490202-05180-00 WASHER, PLATEWASHER, PLATE
-
1590269-07007-00 RIVETRIVET
-
1690111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1790202-05180-00 WASHER, PLATEWASHER, PLATE
-
1890111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
192C0-Y283V-60-P0 PANEL ASSEMBLY 2 (OPT) (FOR DPBMC)PANEL ASSEMBLY 2 (OPT) (FOR DPBMC)
-
192C0-Y283V-70-P2 PANEL ASSEMBLY 2 (OPT) (FOR DRMK, DBNM8)PANEL ASSEMBLY 2 (OPT) (FOR DRMK, DBNM8)
-
202C0-28229-00-00 ...COVER 2...COVER 2
-
2190183-05M02-00 ...NUT, SPRING...NUT, SPRING
-
221UF-15379-00-00 ...SEAL...SEAL
-
232C0-2837K-00-00 ...DAMPER 6...DAMPER 6
-
242C0-283B4-00-00 ...GRAPHIC 20 (FOR DPBMC)...GRAPHIC 20 (FOR DPBMC)
-
252C0-28328-20-00 ...EMBLEM (OPT) (FOR DRMK, DBNM8)...EMBLEM (OPT) (FOR DRMK, DBNM8)
-
252C0-28392-40-00 ...GRAPHIC 2 (OPT) (FOR DPBMC)...GRAPHIC 2 (OPT) (FOR DPBMC)
-
2690109-06078-00 BOLTBOLT
-
2790111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2890202-05180-00 WASHER, PLATEWASHER, PLATE
-
2990269-07007-00 RIVETRIVET
-
3090111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3190202-05180-00 WASHER, PLATEWASHER, PLATE
-
3290269-06008-00 RIVETRIVET
-
3390269-06008-00 RIVETRIVET
-
342C0-2117V-00-P0 COVER 7 (OPT) (FOR DPBMC)COVER 7 (OPT) (FOR DPBMC)
-
342C0-2117V-00-P4 COVER 7 (OPT) (FOR DRMK)COVER 7 (OPT) (FOR DRMK)
-
342C0-2117V-00-P5 COVER 7 (OPT) (FOR DBNM8)COVER 7 (OPT) (FOR DBNM8)
-
3590387-06057-00 COLLARCOLLAR
-
3690387-067K8-00 COLLARCOLLAR
-
3790480-14003-00 GROMMETGROMMET
-
3890480-12613-00 GROMMETGROMMET
-
3990183-05076-00 NUT, SPRINGNUT, SPRING
-
4090111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4190111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4290202-05180-00 WASHER, PLATEWASHER, PLATE
-
4390111-06063-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
442C0-2117W-00-P0 COVER 8 (OPT) (FOR DPBMC)COVER 8 (OPT) (FOR DPBMC)
-
442C0-2117W-00-P4 COVER 8 (OPT) (FOR DRMK)COVER 8 (OPT) (FOR DRMK)
-
442C0-2117W-00-P5 COVER 8 (OPT) (FOR DBNM8)COVER 8 (OPT) (FOR DBNM8)
-
4590387-06057-00 COLLARCOLLAR
-
4690387-067K8-00 COLLARCOLLAR
-
4790480-14003-00 GROMMETGROMMET
-
4890480-12613-00 GROMMETGROMMET
-
4990183-05076-00 NUT, SPRINGNUT, SPRING
-
5090464-13007-00 CLAMPCLAMP
-
5190111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5290111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5390202-05180-00 WASHER, PLATEWASHER, PLATE
-
5490111-06063-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
552C0-Y2808-00-P4 COVER ASSY, UNDER (DBNM8 FOR DPBMC)COVER ASSY, UNDER (DBNM8 FOR DPBMC)
-
552C0-Y2808-20-P5 COVER ASSY, UNDER (FOR DRMK)COVER ASSY, UNDER (FOR DRMK)
-
552C0-Y2808-20-P4 COVER ASSY, UNDER (FOR DBNM8)COVER ASSY, UNDER (FOR DBNM8)
-
5690183-05076-00 ...NUT, SPRING...NUT, SPRING
-
5790387-06057-00 ...COLLAR...COLLAR
-
5890480-14003-00 ...GROMMET...GROMMET
-
592C0-2838G-00-00 ...SEAT 1...SEAT 1
-
602C0-2836U-00-00 ...DAMPER, LOCATING 2...DAMPER, LOCATING 2
-
612C0-2847N-00-00 ...DAMPER 8...DAMPER 8
-
622C0-2836L-00-00 ...PANEL, INNER 2...PANEL, INNER 2
-
6390269-06008-00 ...RIVET...RIVET
-
642C0-2838U-00-00 ...DUCT 4...DUCT 4
-
652C0-2834F-00-00 ...DAMPER...DAMPER
-
661LJ-2414J-00-00 ...DAMPER, PLATE 2...DAMPER, PLATE 2
-
6790164-05014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
6899241-00240-00 ...EMBLEM, YAMAHA (OPT) (FOR DPBMC)...EMBLEM, YAMAHA (OPT) (FOR DPBMC)
-
6899246-00240-00 ...EMBLEM, YAMAHA (OPT) (FOR DRMK, DBNM8)...EMBLEM, YAMAHA (OPT) (FOR DRMK, DBNM8)
-
6990111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7090111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7190111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7290202-05180-00 WASHER, PLATEWASHER, PLATE
-
732C0-Y2809-00-P4 COVER ASSY 2, UNDER (DBNM8 FOR DPBMC)COVER ASSY 2, UNDER (DBNM8 FOR DPBMC)
-
732C0-Y2809-20-P5 COVER ASSY 2, UNDER (FOR DRMK)COVER ASSY 2, UNDER (FOR DRMK)
-
732C0-Y2809-20-P4 COVER ASSY 2, UNDER (FOR DBNM8)COVER ASSY 2, UNDER (FOR DBNM8)
-
7490387-06057-00 ...COLLAR...COLLAR
-
7590480-14003-00 ...GROMMET...GROMMET
-
7690183-05076-00 ...NUT, SPRING...NUT, SPRING
-
772C0-2848K-00-00 ...SEAT 2...SEAT 2
-
782C0-2848H-00-00 ...SEAT...SEAT
-
792C0-2847P-00-00 ...DAMPER 9...DAMPER 9
-
802C0-2847R-00-00 ...DAMPER 10...DAMPER 10
-
812C0-2836M-00-00 ...PANEL, INNER 3...PANEL, INNER 3
-
8290269-06008-00 ...RIVET...RIVET
-
832C0-2838J-00-00 ...DUCT 5...DUCT 5
-
842C0-2834E-00-00 ...DAMPER 1...DAMPER 1
-
8590164-05014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
8699241-00240-00 ...EMBLEM, YAMAHA (OPT) (FOR DPBMC)...EMBLEM, YAMAHA (OPT) (FOR DPBMC)
-
8699246-00240-00 ...EMBLEM, YAMAHA (OPT) (FOR DRMK, DBNM8)...EMBLEM, YAMAHA (OPT) (FOR DRMK, DBNM8)
-
8790111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
8890111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
8990202-05180-00 WASHER, PLATEWASHER, PLATE
-
9090269-06008-00 RIVETRIVET
-
9190269-06081-00 RIVETRIVET
