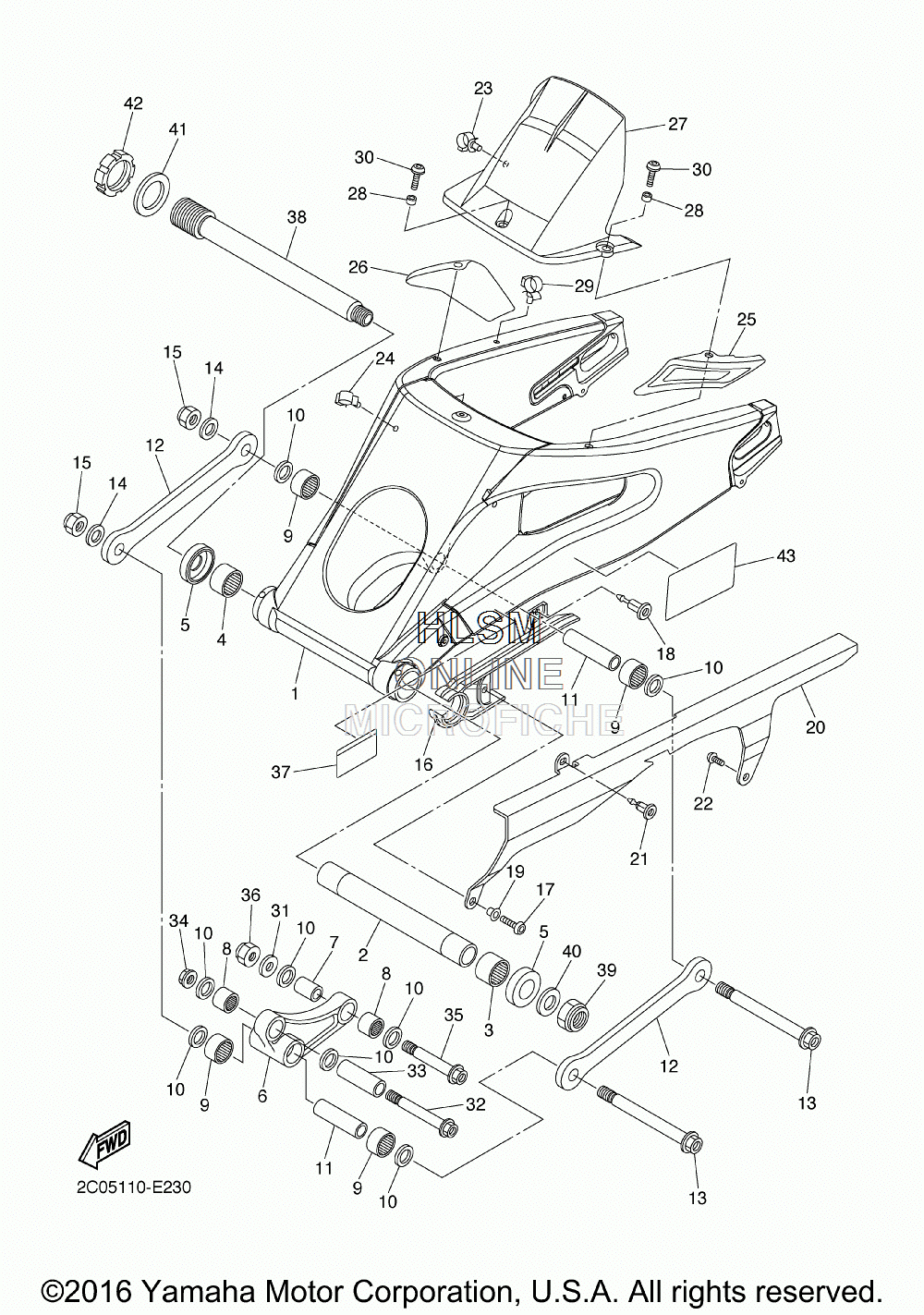

SUSPENSION - REAR ARM для Yamaha R6 (2C0F/2C0G) [YZFR6W/C] - 2007 года выпуска
-
№АртикулНазвание
-
12C0-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
22C0-22184-00-00 BUSHBUSH
-
393317-330A0-00 BEARINGBEARING
-
493317-330A1-00 BEARINGBEARING
-
52C0-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
62C0-2217A-00-00 ARM, RELAYARM, RELAY
-
790387-127W0-00 COLLARCOLLAR
-
893315-31759-00 BEARINGBEARING
-
993315-31758-00 BEARINGBEARING
-
1093109-17071-00 OIL SEALOIL SEAL
-
1190387-126Y1-00 COLLARCOLLAR
-
122C0-2217M-00-00 ARM 1ARM 1
-
1390109-12010-00 BOLTBOLT
-
1492907-12600-00 WASHER, PLATEWASHER, PLATE
-
1590185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
162C0-22151-00-00 SEAL, GUARDSEAL, GUARD
-
1792017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1890269-07008-00 RIVETRIVET
-
1990387-062X0-00 COLLARCOLLAR
-
202C0-22311-00-00 CASE, CHAINCASE, CHAIN
-
2190269-07007-00 RIVETRIVET
-
2290110-06102-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2390464-16012-00 CLAMPCLAMP
-
2490464-16011-00 CLAMPCLAMP
-
252C0-228A0-00-00 COVER ASSY 1COVER ASSY 1
-
262C0-228B0-00-00 COVER ASSY 2COVER ASSY 2
-
272C0-21650-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
2890387-06022-00 COLLARCOLLAR
-
2990464-16012-00 CLAMPCLAMP
-
3090111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3192907-12600-00 WASHER, PLATEWASHER, PLATE
-
3290109-10017-00 BOLTBOLT
-
3390387-1012B-00 COLLARCOLLAR
-
3495607-10200-00 NUT, U FLANGENUT, U FLANGE
-
3590109-12011-00 BOLTBOLT
-
3690185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
375JW-21668-00-00 LABEL, TIRELABEL, TIRE
-
382C0-22141-10-00 SHAFT, PIVOTSHAFT, PIVOT
-
3990185-22002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4090201-22014-00 WASHER, PLATEWASHER, PLATE
-
4190201-33014-00 WASHER, PLATEWASHER, PLATE
-
422C0-22252-00-00 NUTNUT
-
432C0-2179W-10-00 PLATE, EPA (NON CALIFORNIA)PLATE, EPA (NON CALIFORNIA)
-
432C0-2179R-10-00 PLATE, EPA 2 (CALIFORNIA)PLATE, EPA 2 (CALIFORNIA)
