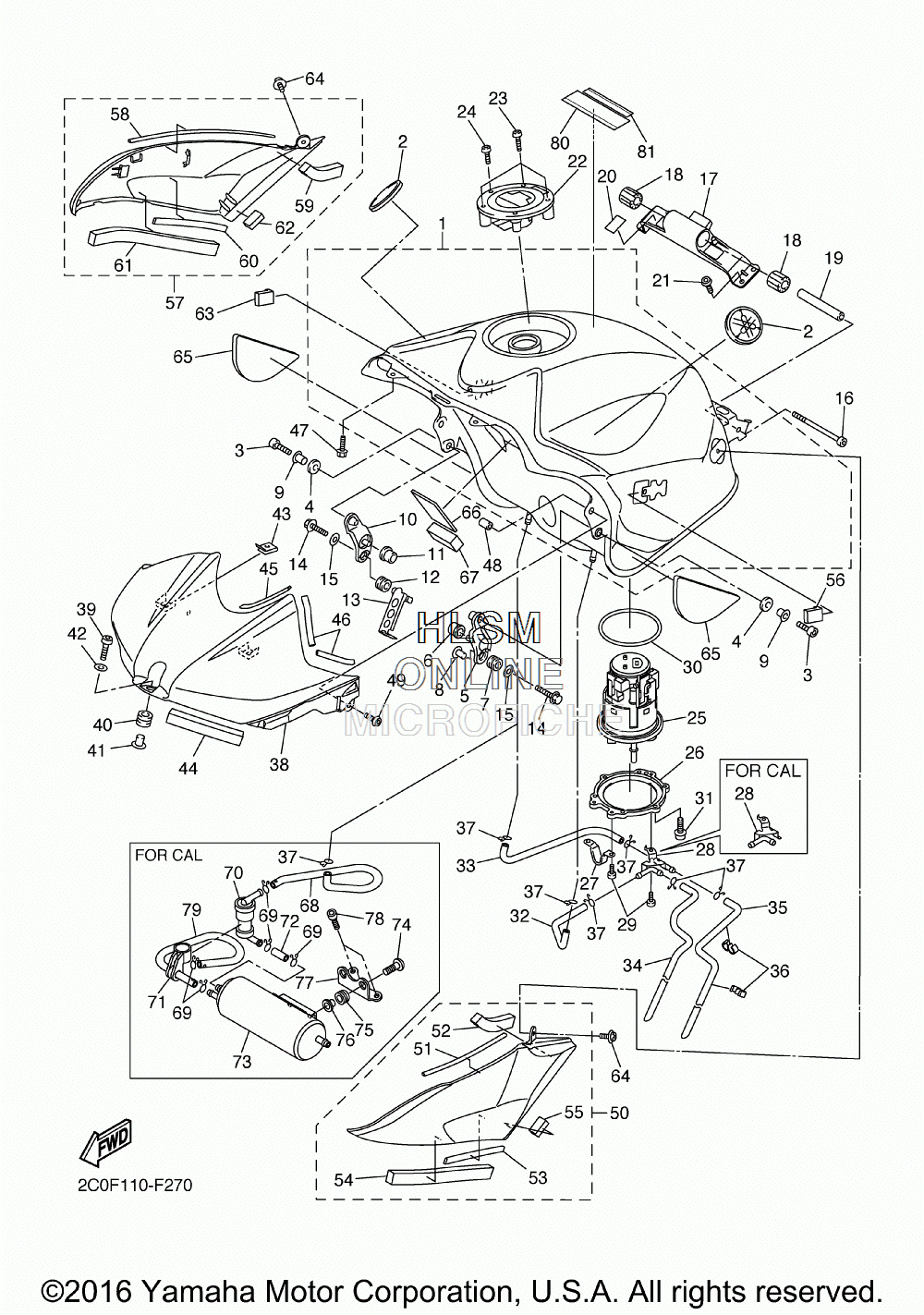

FUEL TANK для Yamaha R6 (2C0F/2C0G) [YZFR6W/C] - 2007 года выпуска
-
№АртикулНазвание
-
12C0-YK241-00-P0 FUEL TANK COMP. (OPT) (DPBMC)FUEL TANK COMP. (OPT) (DPBMC)
-
12C0-YK241-00-P4 FUEL TANK COMP. (OPT) (DRMK)FUEL TANK COMP. (OPT) (DRMK)
-
12C0-YK241-00-P5 FUEL TANK COMP. (OPT) (DBNM8)FUEL TANK COMP. (OPT) (DBNM8)
-
25SL-2413B-00-00 EMBLEMEMBLEM
-
391317-06016-00 BOLTBOLT
-
45VY-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
55VY-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
65VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
790480-10542-00 GROMMETGROMMET
-
890387-066Y6-00 COLLARCOLLAR
-
990387-06143-00 COLLARCOLLAR
-
105VY-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
115VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1290480-10542-00 GROMMETGROMMET
-
132C0-21339-00-00 GUIDE, WIREGUIDE, WIRE
-
1495027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-06063-00 WASHER, PLATEWASHER, PLATE
-
1691317-06090-00 BOLTBOLT
-
172C0-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
185SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1990387-06055-00 COLLARCOLLAR
-
202C0-21566-00-00 TAPE, 1TAPE, 1
-
2190111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
225JJ-24602-00-00 CAP ASSYCAP ASSY
-
2390110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2491317-05010-00 BOLTBOLT
-
252C0-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
262C0-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
275PW-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
282C0-24135-00-00 CLAMP 1 (EXCEPT CALIF) (2C0F)CLAMP 1 (EXCEPT CALIF) (2C0F)
-
282C0-24135-10-00 CLAMP 1 (CALIF ONLY) (2C0G)CLAMP 1 (CALIF ONLY) (2C0G)
-
2990154-05012-00 SCREW, BINDINGSCREW, BINDING
-
305JW-24486-00-00 O-RINGO-RING
-
3190110-05014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
322C0-24315-00-00 PIPE 5PIPE 5
-
332C0-24316-00-00 PIPE 6PIPE 6
-
342C0-24317-00-00 PIPE 7PIPE 7
-
342C0-24317-10-00 PIPE 7PIPE 7
-
352C0-24313-00-00 PIPE 3PIPE 3
-
3690464-09M31-00 CLAMPCLAMP
-
3790467-09006-00 CLIPCLIP
-
382C0-2171A-00-P0 COVER, TOP (OPT) (DPBMC)COVER, TOP (OPT) (DPBMC)
-
382C0-2171A-00-P2 COVER, TOP (OPT) (MBL2)COVER, TOP (OPT) (MBL2)
-
382C0-2171A-00-P4 COVER, TOP (OPT) (DRMK)COVER, TOP (OPT) (DRMK)
-
3991314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4090480-12314-00 GROMMETGROMMET
-
4190387-065J6-00 COLLARCOLLAR
-
4290201-06M30-00 WASHER, PLATEWASHER, PLATE
-
4390183-05074-00 NUT, SPRINGNUT, SPRING
-
442C0-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
452C0-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
462C0-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
4790105-05002-00 BOLT, FLANGEBOLT, FLANGE
-
4890179-05523-00 NUTNUT
-
4998907-05014-00 SCREW, BINDSCREW, BIND
-
502C0-24106-00-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
512C0-2414H-00-00 ...DAMPER, PLATE 1...DAMPER, PLATE 1
-
522C0-2414P-00-00 ...DAMPER, PLATE 5...DAMPER, PLATE 5
-
535PW-2414J-00-00 ...DAMPER, PLATE 2...DAMPER, PLATE 2
-
542C0-24184-00-00 ...DAMPER, LOCATING 4...DAMPER, LOCATING 4
-
552C0-2414R-00-00 ...DAMPER, PLATE 6...DAMPER, PLATE 6
-
565PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
572C0-24108-00-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
582C0-2414H-00-00 ...DAMPER, PLATE 1...DAMPER, PLATE 1
-
592C0-2414P-00-00 ...DAMPER, PLATE 5...DAMPER, PLATE 5
-
605PW-2414J-00-00 ...DAMPER, PLATE 2...DAMPER, PLATE 2
-
612C0-24184-00-00 ...DAMPER, LOCATING 4...DAMPER, LOCATING 4
-
622C0-2414R-00-00 ...DAMPER, PLATE 6...DAMPER, PLATE 6
-
635PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
6490159-05015-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
652C0-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
665EJ-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
675JX-21732-00-00 SEAL 1SEAL 1
-
682C0-24314-00-00 PIPE 4PIPE 4
-
6990467-09006-00 CLIPCLIP
-
702C0-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
712C0-24398-00-00 BAND 1BAND 1
-
7290445-11732-00 HOSE (L30)HOSE (L30)
-
735EL-24170-00-00 CANISTER ASSYCANISTER ASSY
-
7490110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7590480-13018-00 GROMMETGROMMET
-
7690387-062L2-00 COLLARCOLLAR
-
772C0-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
7891317-06020-00 BOLTBOLT
-
792C0-1443J-00-00 PIPEPIPE
-
805GK-2118K-00-00 LABEL, CAUTION (ENGLISH)LABEL, CAUTION (ENGLISH)
-
815PW-2415E-11-00 LABEL, CAUTION (ENGLISH)LABEL, CAUTION (ENGLISH)
