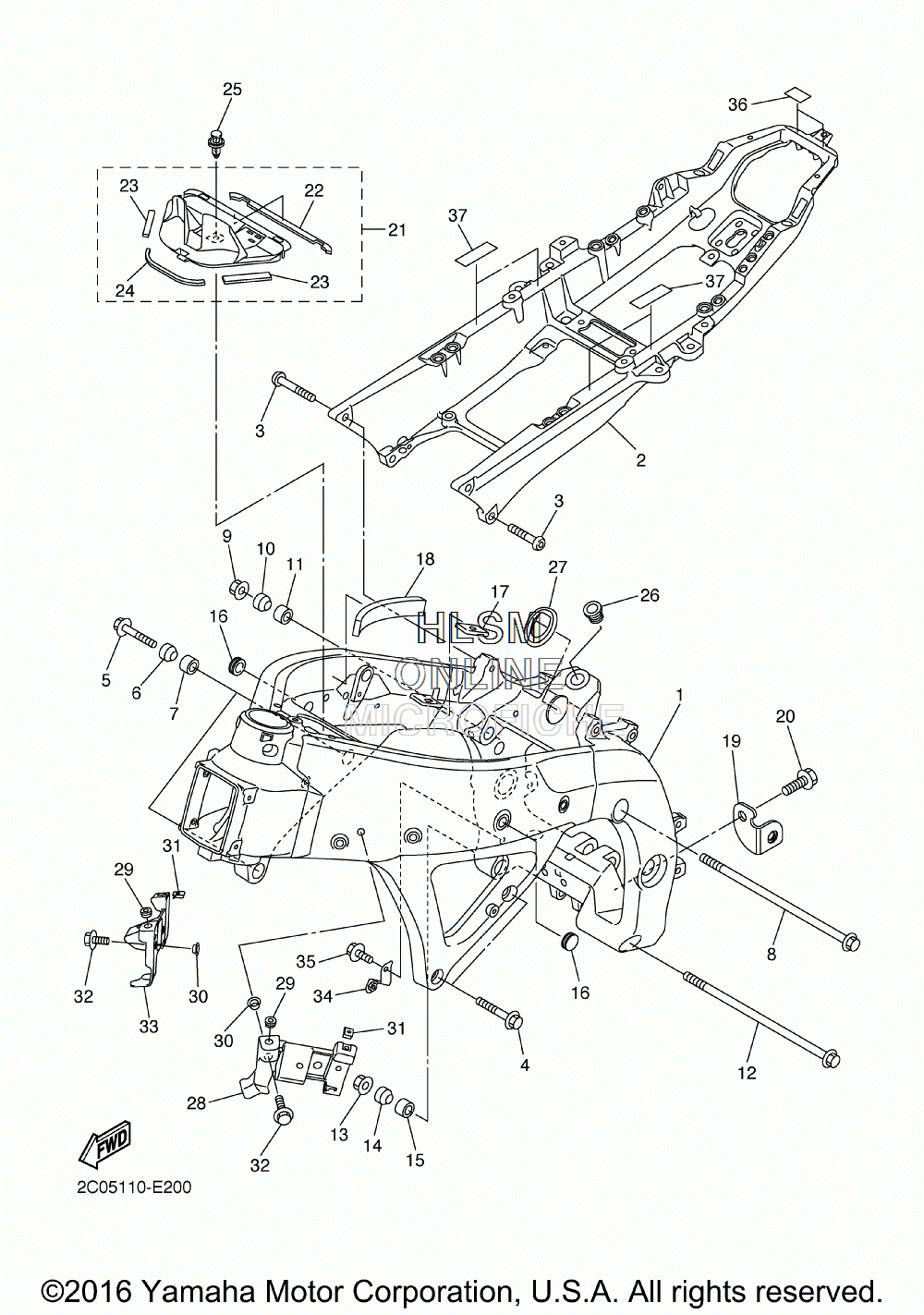

FRAME для Yamaha R6 (2C0F/2C0G) [YZFR6W/C] - 2007 года выпуска
-
№АртикулНазвание
-
12C0-21110-00-00 FRAME COMP.FRAME COMP.
-
22C0-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
390149-10017-00 SCREWSCREW
-
495024-10040-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
595024-10045-00 BOLT, FLANGEBOLT, FLANGE
-
62C0-21414-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
75VY-21424-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
890105-12228-00 BOLT, FLANGEBOLT, FLANGE
-
990179-12248-00 NUTNUT
-
102C0-21414-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
115VY-21424-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
1290105-12228-00 BOLT, FLANGEBOLT, FLANGE
-
1390179-12248-00 NUTNUT
-
142C0-21414-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
155VY-21424-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
1690338-15004-00 PLUGPLUG
-
172C0-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
182C0-21486-00-00 DAMPER 2DAMPER 2
-
192C0-21435-00-00 BRACKET, MUFFLER 1BRACKET, MUFFLER 1
-
2090105-083A2-00 BOLT, FLANGEBOLT, FLANGE
-
212C0-2110M-00-00 COVER ASSY 1COVER ASSY 1
-
222C0-2174X-00-00 ...DAMPER...DAMPER
-
232C0-2174Y-00-00 ...DAMPER...DAMPER
-
242C0-21746-00-00 ...DAMPER...DAMPER
-
2590269-07010-00 RIVETRIVET
-
262C0-22241-00-00 BOLT 1BOLT 1
-
272C0-21279-00-00 PLUG, BLINDPLUG, BLIND
-
282C0-2833A-00-00 BRACET 7BRACET 7
-
2990480-10003-00 GROMMETGROMMET
-
3090387-06048-00 COLLARCOLLAR
-
3190183-05076-00 NUT, SPRINGNUT, SPRING
-
3295807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
332C0-2833E-00-00 BRACET 8BRACET 8
-
342C0-2836G-00-00 BRACKET 4BRACKET 4
-
3590105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
362C0-21566-00-00 TAPE, 1TAPE, 1
-
372C0-21567-00-00 TAPE, 2TAPE, 2
