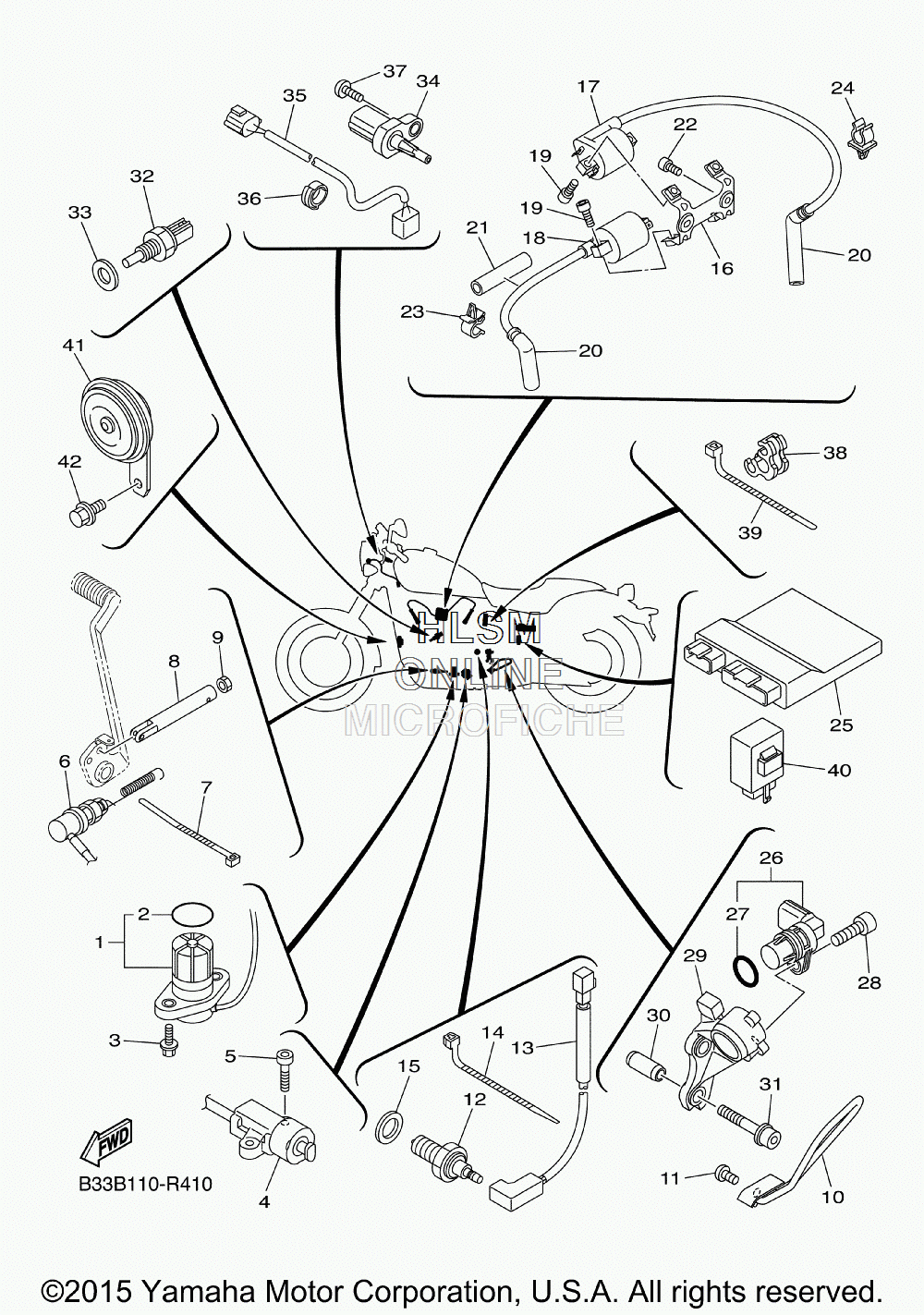

ELECTRICAL для Yamaha BOLT C SPEC [XVS95CRG] - 2016 года выпуска
-
№АртикулНазвание
-
15S7-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
25VY-8A8E0-00-00 ...O-RING...O-RING
-
395022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
45XT-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
591317-05016-00 BOLTBOLT
-
6B33-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
71UA-82591-00-00 BANDBAND
-
8B33-27222-00-00 JOINTJOINT
-
995307-08600-00 NUTNUT
-
10B33-27267-00-00 GUIDE, WIREGUIDE, WIRE
-
1190157-08117-00 SCREW, PAN HEADSCREW, PAN HEAD
-
123GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
135S7-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
1490464-13077-00 CLAMPCLAMP
-
1590430-10148-00 GASKETGASKET
-
163D8-21359-01-00 BRACKET, COILBRACKET, COIL
-
171TP-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
181S4-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1990110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
205S7-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
2190445-14020-00 HOSE (L65)HOSE (L65)
-
2291312-06008-00 BOLTBOLT
-
2390464-09129-00 CLAMPCLAMP
-
2490464-09008-00 CLAMPCLAMP
-
251TP-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
261TP-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
274D9-81168-00-00 ...O-RING...O-RING
-
2890110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
291TP-81948-00-00 BRACKETBRACKET
-
3099530-08012-00 PIN, DOWELPIN, DOWEL
-
3190110-06300-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
324P9-83591-00-00 THERMO UNITTHERMO UNIT
-
3390201-10128-00 WASHER, PLATEWASHER, PLATE
-
345YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
35B33-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
3690464-26001-00 CLAMPCLAMP
-
3798502-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
381TP-81443-00-00 CLAMP, LEAD 1CLAMP, LEAD 1
-
3990464-20258-00 CLAMPCLAMP
-
405C4-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
412S3-83371-00-00 HORNHORN
-
4290105-082A5-00 BOLT WASHER BASEDBOLT WASHER BASED
