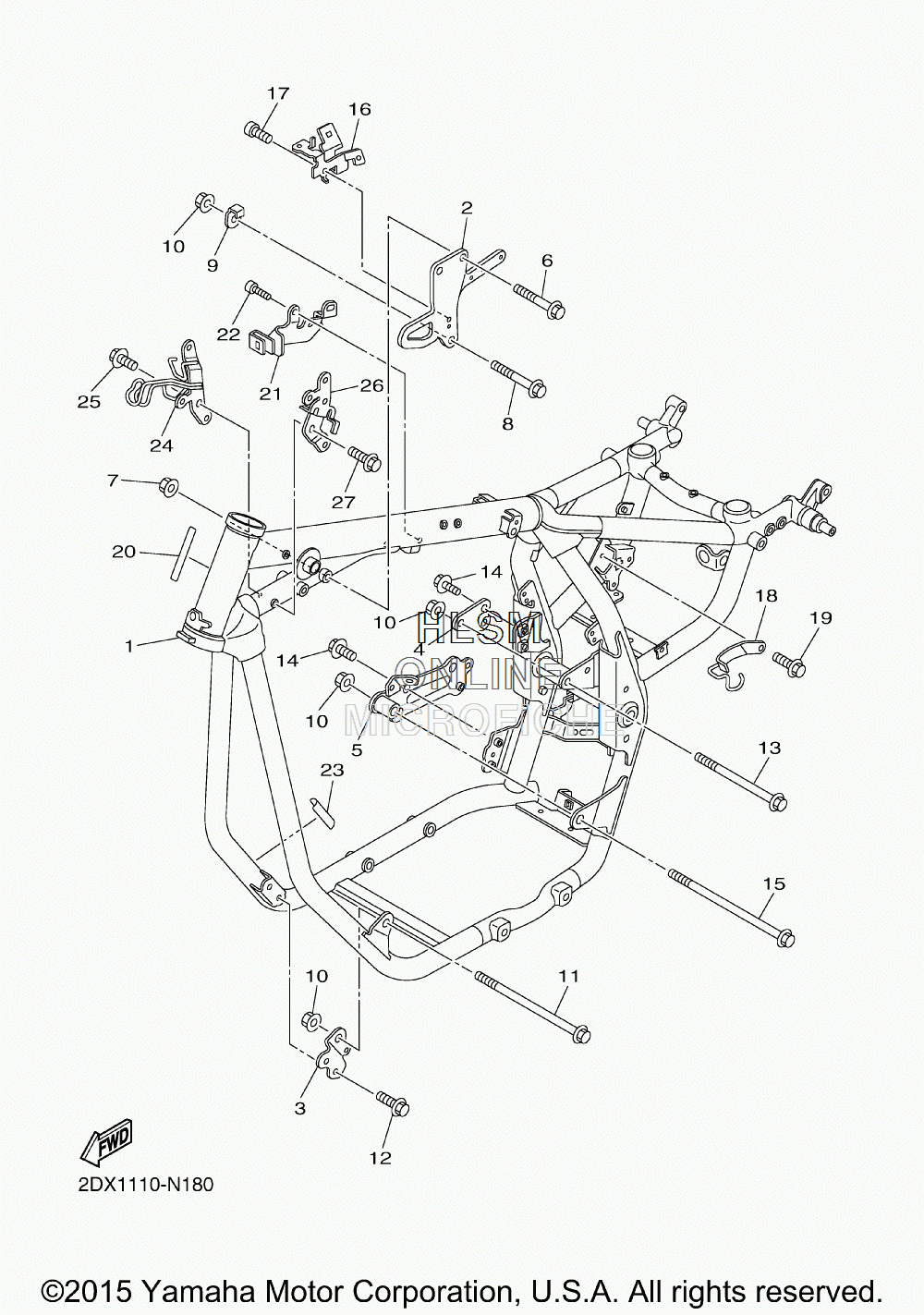

FRAME для Yamaha BOLT C SPEC [XVS95CRG] - 2016 года выпуска
-
№АртикулНазвание
-
11TP-21110-00-00 FRAME COMP.FRAME COMP.
-
21TP-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
31TP-2122C-00-00 STAY 3STAY 3
-
41TP-21314-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
51TP-2116F-00-00 STAY, REARSTAY, REAR
-
690105-10434-00 BOLT, FLANGEBOLT, FLANGE
-
790185-10008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890105-12090-00 BOLT, FLANGEBOLT, FLANGE
-
91TP-21183-00-00 PLATEPLATE
-
1090185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190105-12088-00 BOLT, FLANGEBOLT, FLANGE
-
1290105-10415-00 BOLT, FLANGEBOLT, FLANGE
-
1390105-12091-00 BOLT, FLANGEBOLT, FLANGE
-
1490105-10428-00 BOLT, FLANGEBOLT, FLANGE
-
1590105-12086-00 BOLT, FLANGEBOLT, FLANGE
-
161TP-2115C-00-00 BRACKETBRACKET
-
1791317-06008-00 BOLTBOLT
-
181TP-21288-00-00 GUIDE, CABLEGUIDE, CABLE
-
1995027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
203D8-2117G-00-00 PROTECTORPROTECTOR
-
211TP-21149-01-00 BRACKET, BATTERY BOXBRACKET, BATTERY BOX
-
2290111-06085-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
235PX-21268-00-00 SEALSEAL
-
241TP-26475-00-00 HOLDERHOLDER
-
2595027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
261TP-26481-00-00 HOLDER, 2HOLDER, 2
-
2795027-06016-00 BOLT, FLANGEBOLT, FLANGE
