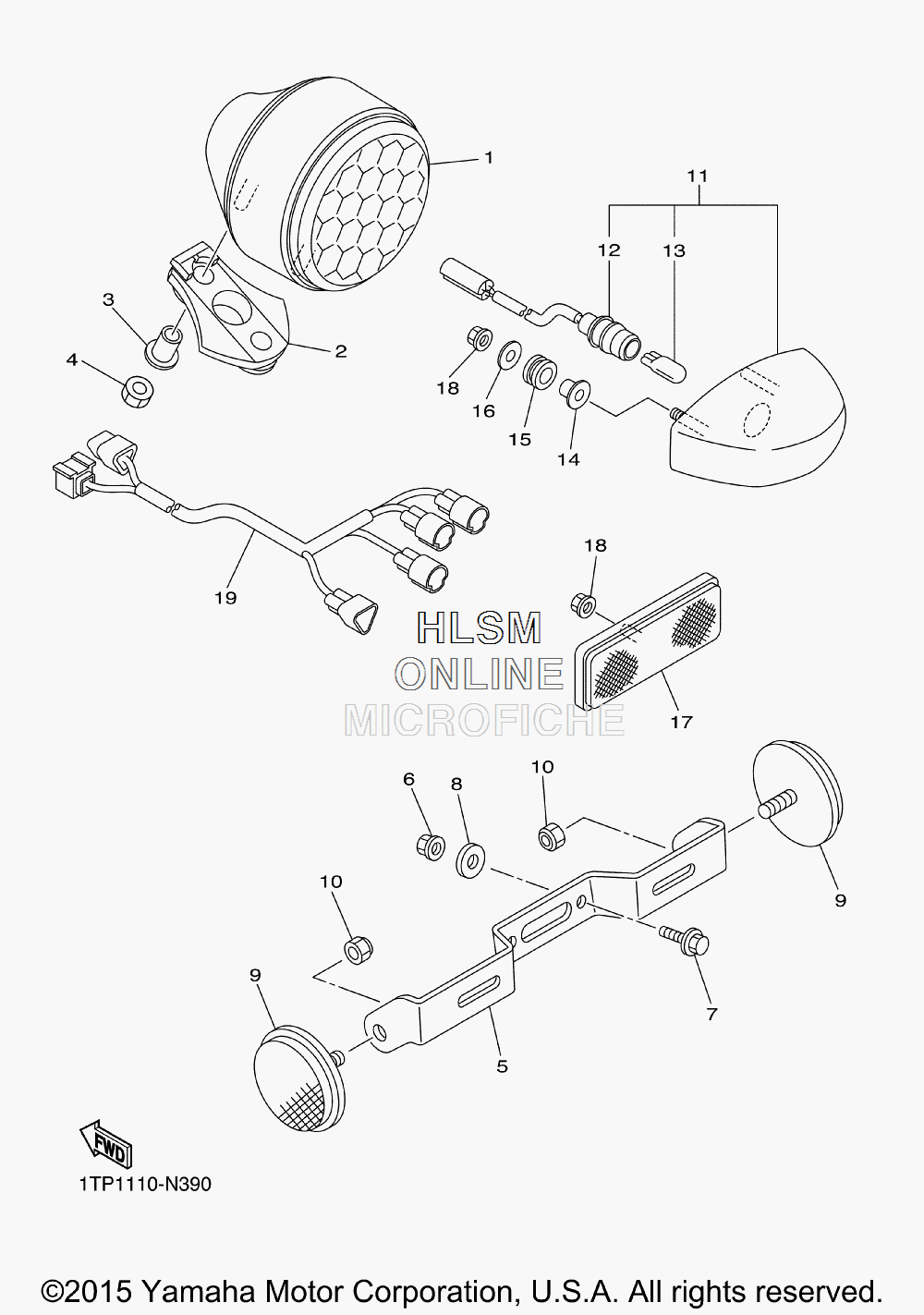

TAILLIGHT для Yamaha BOLT C SPEC [XVS95CRG] - 2016 года выпуска
-
№АртикулНазвание
-
11TP-84700-00-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
21TP-84736-00-00 DAMPER, TAIL 1DAMPER, TAIL 1
-
390387-06161-00 COLLARCOLLAR
-
495302-06600-00 NUT, HEXAGONNUT, HEXAGON
-
55S7-84751-01-00 BRACKET, LICENSEBRACKET, LICENSE
-
695602-06100-00 NUT, UNUT, U
-
795022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
890201-06380-00 WASHER PLAINWASHER PLAIN
-
9449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
1095602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
111TP-84740-00-00 LICENCE LIGHT ASSYLICENCE LIGHT ASSY
-
121TP-84547-00-00 ......CORD, LICENSE LIGHT......CORD, LICENSE LIGHT
-
131TP-84347-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
1490387-05003-00 COLLARCOLLAR
-
1590480-11008-00 GROMMETGROMMET
-
1690201-054K4-00 WASHER, PLATEWASHER, PLATE
-
173Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1895702-05500-00 NUT, FLANGENUT, FLANGE
-
191TP-84717-01-00 CORD, TAILLIGHTCORD, TAILLIGHT
