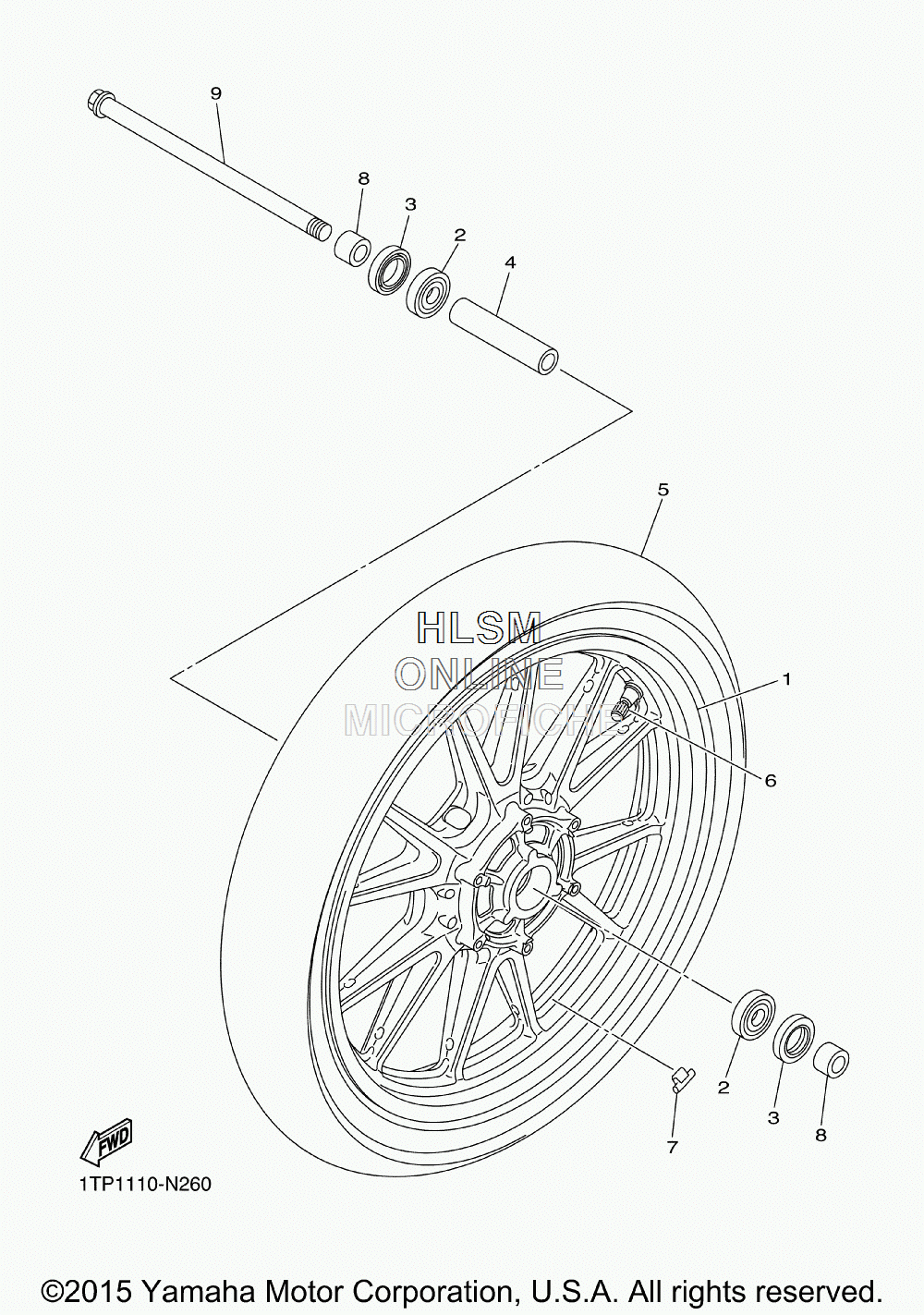

WHEEL - FRONT для Yamaha BOLT C SPEC [XVS95CRG] - 2016 года выпуска
-
№АртикулНазвание
-
11TP-25168-10-4X CAST WHEEL, FRONT (LGB)CAST WHEEL, FRONT (LGB)
-
293306-30317-00 BEARINGBEARING
-
393102-28022-00 OIL SEAL SD-TYPEOIL SEAL SD-TYPE
-
490387-172A5-00 COLLARCOLLAR
-
693900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
75MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
75MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
75MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
890387-173R6-00 COLLARCOLLAR
-
93MA-25181-10-00 AXLE, WHEELAXLE, WHEEL
