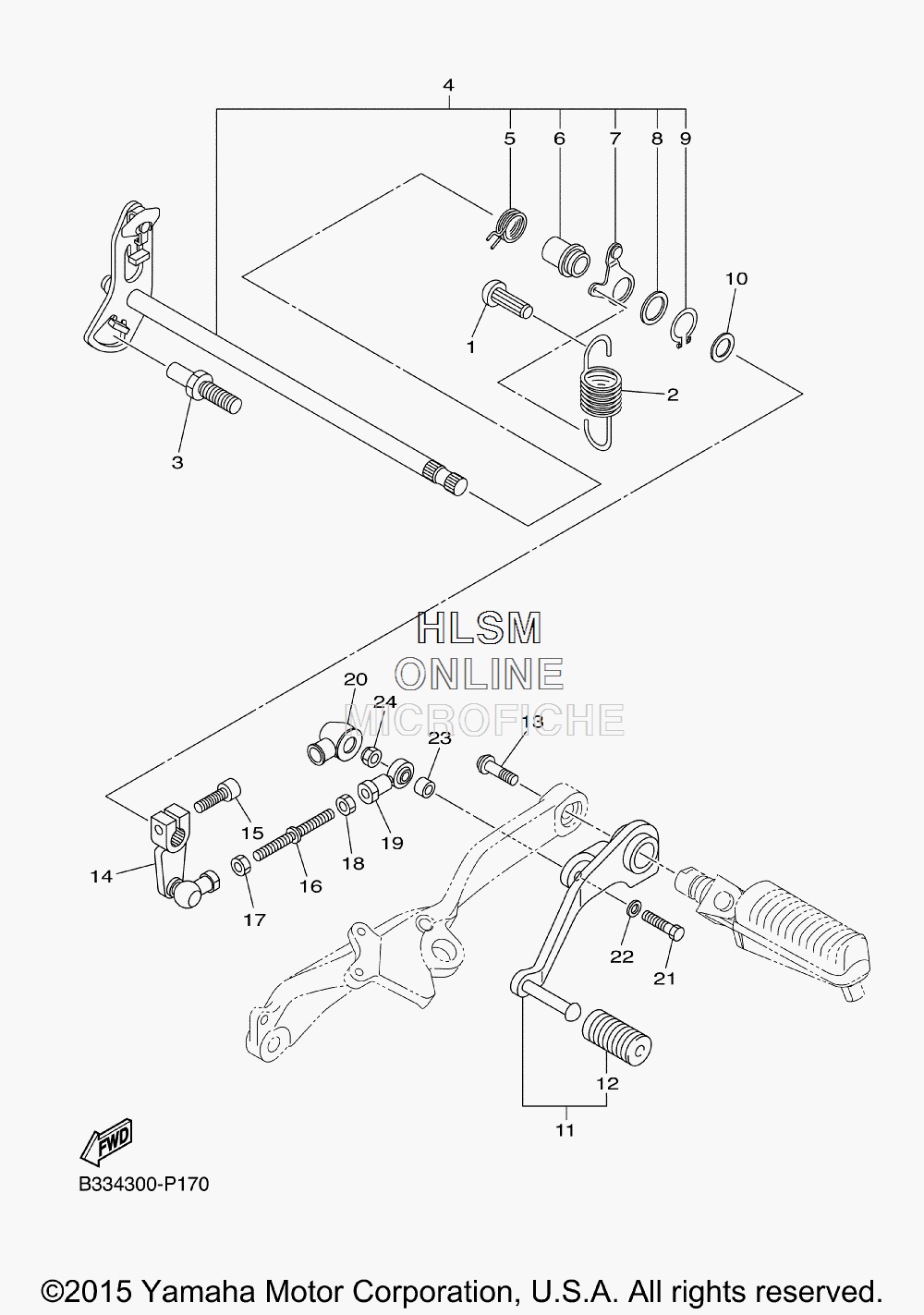

SHIFT SHAFT для Yamaha BOLT C SPEC [XVS95CRG] - 2016 года выпуска
-
№АртикулНазвание
-
1132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
290506-18015-00 SPRING, TENSIONSPRING, TENSION
-
31D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
43D8-18101-01-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
590508-32040-00 ...SPRING, TORSION...SPRING, TORSION
-
63D8-18175-00-00 ...SPACER...SPACER
-
73D8-18140-00-00 ...STOPPER LEVER ASSY...STOPPER LEVER ASSY
-
890201-177G4-00 ...WASHER, PLATE...WASHER, PLATE
-
999009-17400-00 ...CIRCLIP...CIRCLIP
-
1090201-127E1-00 WASHER, PLATEWASHER, PLATE
-
11B33-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
125EB-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
1390111-10039-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
14B33-18112-00-00 ARM, SHIFTARM, SHIFT
-
1591312-06020-00 BOLTBOLT
-
1626H-18115-00-00 ROD, SHIFTROD, SHIFT
-
1790170-06024-00 NUTNUT
-
1895304-06600-00 NUTNUT
-
195VX-18116-00-00 JOINT, ROD 1JOINT, ROD 1
-
205VX-18154-00-00 COVER, DUSTCOVER, DUST
-
2197027-06030-00 BOLT, HEXAGONBOLT, HEXAGON
-
2292907-06600-00 WASHER, PLATEWASHER, PLATE
-
2390387-064T3-00 COLLARCOLLAR
-
2495602-06100-00 NUT, UNUT, U
