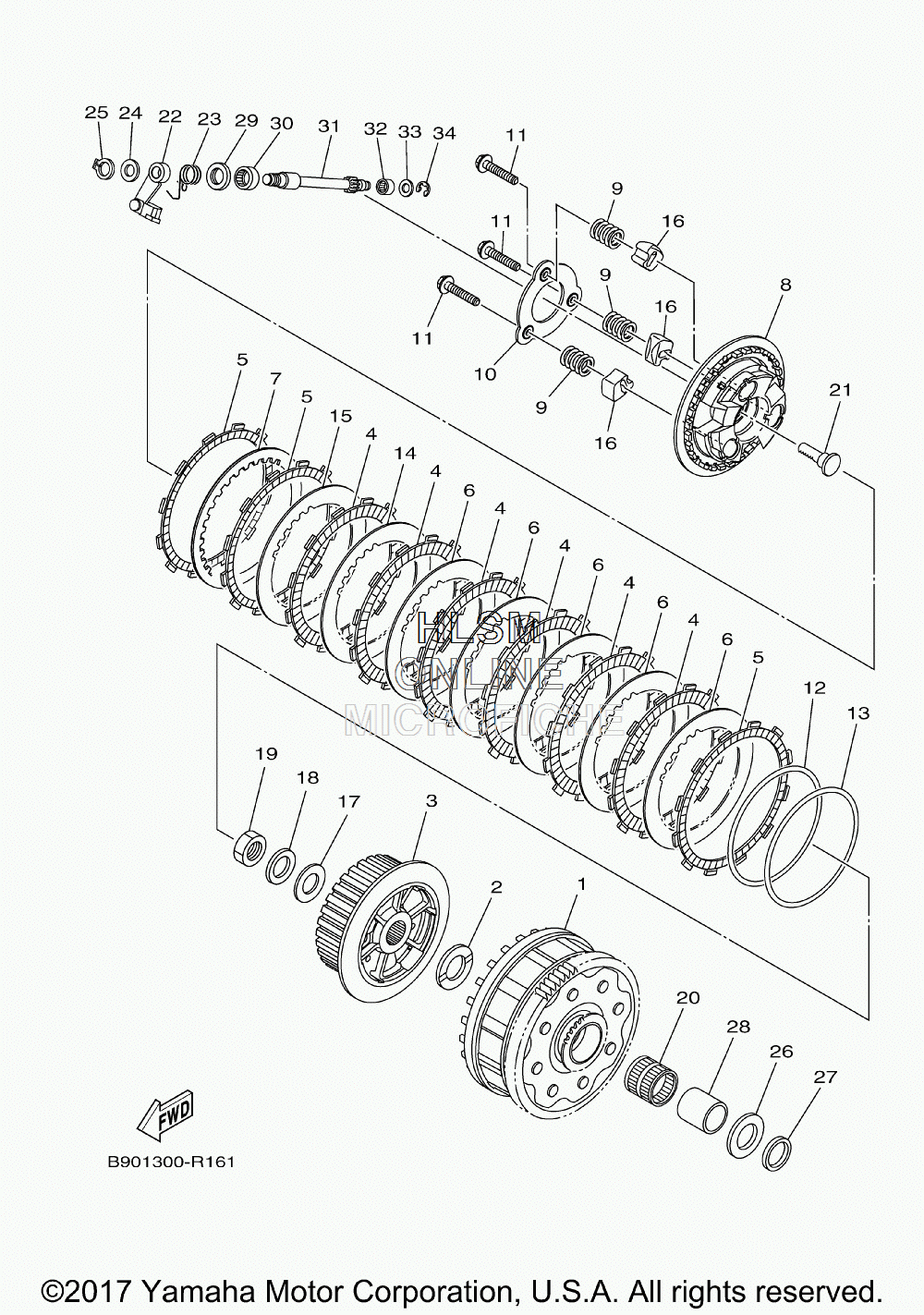

CLUTCH для Yamaha FZ09 - 2017 года выпуска
-
№АртикулНазвание
-
11RC-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
25VY-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
3B90-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
45TA-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
5B90-16331-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
65VY-16325-00-00 PLATE, CLUTCH 2 (T2.0)PLATE, CLUTCH 2 (T2.0)
-
71TD-16324-00-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
8B90-16350-00-00 PRESSURE PLATE ASSYPRESSURE PLATE ASSY
-
9B90-16173-00-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
10B90-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
112CR-16337-00-00 SCREW, SPRINGSCREW, SPRING
-
121TD-16383-00-00 SPRING,C USHIONSPRING,C USHION
-
131TD-16384-00-00 PLATE, SEATPLATE, SEAT
-
144B1-16324-00-00 PLATE, CLUTCH 1 (T1.6)PLATE, CLUTCH 1 (T1.6)
-
145VY-16325-00-00 PLATE, CLUTCH 2 (T2.0)PLATE, CLUTCH 2 (T2.0)
-
144B1-16325-00-00 PLATE, CLUTCH 2 (T2.3)PLATE, CLUTCH 2 (T2.3)
-
154B1-16324-00-00 PLATE, CLUTCH 1 (T1.6)PLATE, CLUTCH 1 (T1.6)
-
155VY-16325-00-00 PLATE, CLUTCH 2 (T2.0)PLATE, CLUTCH 2 (T2.0)
-
154B1-16325-00-00 PLATE, CLUTCH 2 (T2.3)PLATE, CLUTCH 2 (T2.3)
-
161TD-16178-00-00 ABSORBER 3ABSORBER 3
-
1790201-20030-00 WASHER, PLATEWASHER, PLATE
-
1890208-20001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
1990179-20011-00 NUTNUT
-
2093310-33277-00 BEARINGBEARING
-
214XV-16356-01-00 ROD, PUSH 1ROD, PUSH 1
-
221RC-16340-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
2390508-18051-00 SPRING, TORSIONSPRING, TORSION
-
2490201-10029-00 WASHER, PLATEWASHER, PLATE
-
2599009-10400-00 CIRCLIPCIRCLIP
-
265VY-16164-00-00 PLATE, THRUST 2PLATE, THRUST 2
-
272C0-16164-00-00 PLATE, THRUST 2PLATE, THRUST 2
-
281RC-16181-00-00 SPACER 1SPACER 1
-
2993102-15212-00 OIL SEALOIL SEAL
-
3093315-21570-00 BEARINGBEARING
-
315VY-16382-10-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
3293317-11096-00 BEARINGBEARING
-
3392907-08600-00 WASHER, PLATEWASHER, PLATE
-
3499001-07600-00 CIRCLIPCIRCLIP
