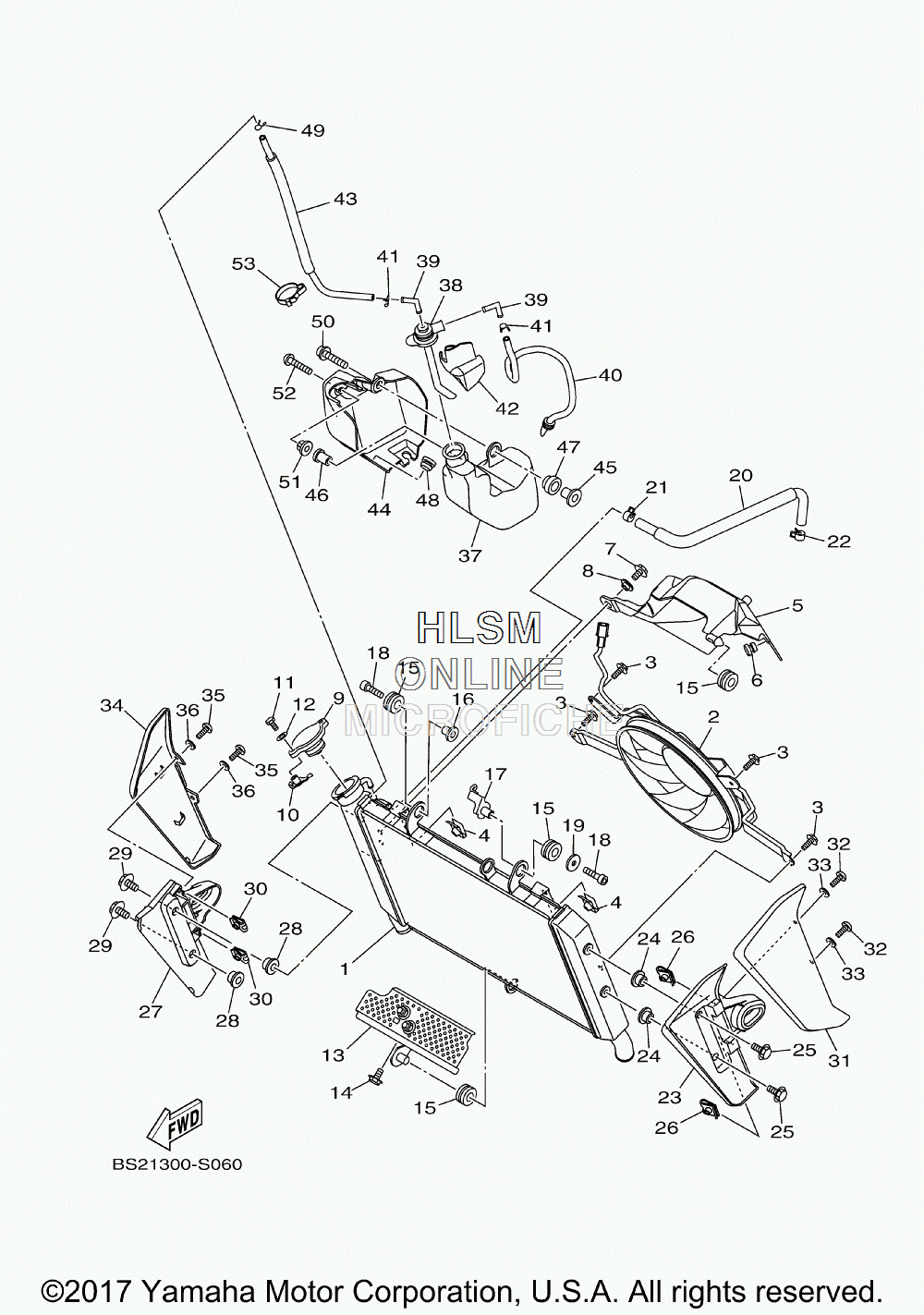

RADIATOR для Yamaha FZ09 - 2017 года выпуска
-
№АртикулНазвание
-
12PP-12461-00-00 RADIATOR COMPRADIATOR COMP
-
21RC-12405-01-00 BLOWER ASSYBLOWER ASSY
-
33D8-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
41AA-12535-00-00 PLATEPLATE
-
51RC-12467-00-00 COVER, RADIATORCOVER, RADIATOR
-
690338-07157-00 PLUGPLUG
-
790105-06080-00 BOLT, FLANGEBOLT, FLANGE
-
890387-07717-00 COLLARCOLLAR
-
94FL-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
105FC-12437-00-00 STOPPERSTOPPER
-
1197007-05012-00 BOLTBOLT
-
1292907-05600-00 WASHER, PLATEWASHER, PLATE
-
13BS2-12637-00-00 STAY 1STAY 1
-
1495D32-06012-00 BOLT, FLANGE DEEP RECESSBOLT, FLANGE DEEP RECESS
-
1590480-15363-00 GROMMETGROMMET
-
1690387-06158-00 COLLARCOLLAR
-
171RC-26132-00-00 GUIDE, CABLE 2GUIDE, CABLE 2
-
1891312-06030-00 BOLTBOLT
-
1990201-06033-00 WASHER, PLATEWASHER, PLATE
-
201RC-1243A-00-00 HOSE 1HOSE 1
-
2190467-10039-00 CLIPCLIP
-
2290467-10039-00 CLIPCLIP
-
23BS2-2175T-00-00 BRACKET 1BRACKET 1
-
2490387-06170-00 COLLARCOLLAR
-
2590119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2690183-05076-00 NUT, SPRINGNUT, SPRING
-
27BS2-2175U-00-00 BRACKET 2BRACKET 2
-
2890387-06170-00 COLLARCOLLAR
-
2990119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090183-05076-00 NUT, SPRINGNUT, SPRING
-
31BS2-2171E-00-P1 COVER, SIDE 5 (MBL2 - MAT BLACK)COVER, SIDE 5 (MBL2 - MAT BLACK)
-
3290111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3390202-05180-00 WASHER, PLATEWASHER, PLATE
-
34BS2-2171X-00-P1 COVER, SIDE 6 (MBL2 - MAT BLACK)COVER, SIDE 6 (MBL2 - MAT BLACK)
-
3590111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3690202-05180-00 WASHER, PLATEWASHER, PLATE
-
371RC-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
381RC-21875-00-00 CAPCAP
-
391RC-21828-00-00 ELBOWELBOW
-
401RC-21826-00-00 PIPE, BREATHERPIPE, BREATHER
-
4190467-08075-00 CLIPCLIP
-
421RC-22825-00-00 PROTECTOR 1PROTECTOR 1
-
431RC-21816-00-00 PIPE 1PIPE 1
-
441RC-2172W-00-00 COVERCOVER
-
4590387-06285-00 COLLARCOLLAR
-
4690179-05523-00 NUTNUT
-
471RC-21749-00-00 COLLARCOLLAR
-
4890480-13203-00 GROMMETGROMMET
-
4990467-08075-00 CLIPCLIP
-
5090110-06233-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
511RC-21748-00-00 COLLARCOLLAR
-
5292012-05030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5390464-07M40-00 CLAMPCLAMP
