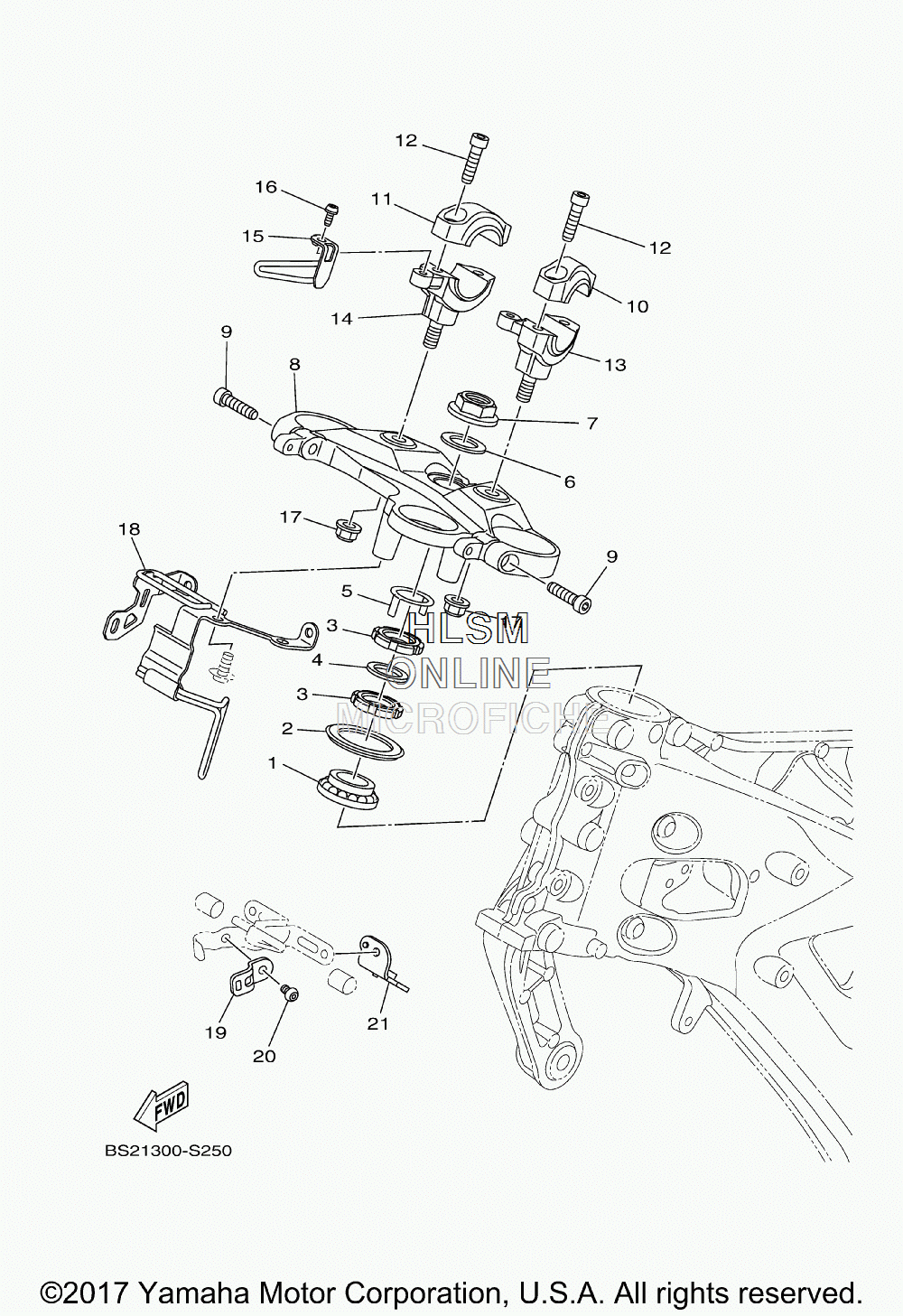

STEERING для Yamaha FZ09 - 2017 года выпуска
-
№АртикулНазвание
-
193399-99931-00 BEARINGBEARING
-
25VX-23415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
390179-25004-00 NUTNUT
-
490202-26142-00 WASHER, PLATEWASHER, PLATE
-
526H-23418-01-00 WASHER, SPECIALWASHER, SPECIAL
-
690201-22018-00 WASHER, PLATEWASHER, PLATE
-
71RC-23393-00-00 NUT, SPECIALNUT, SPECIAL
-
81RC-23435-30-00 CROWN, HANDLECROWN, HANDLE
-
991314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
101RC-23441-11-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
111RC-2344A-11-00 HOLDER, HANDLE UPPER 1HOLDER, HANDLE UPPER 1
-
1291314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
131RC-24847-11-00 HOLDER 1HOLDER 1
-
141RC-24848-11-00 HOLDER 2HOLDER 2
-
15BS2-23591-00-00 BRACKET 1BRACKET 1
-
1690149-06298-00 SCREWSCREW
-
1795602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
18BS2-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
195SL-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2092017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
211RC-23377-00-00 BRACKET, HORNBRACKET, HORN
