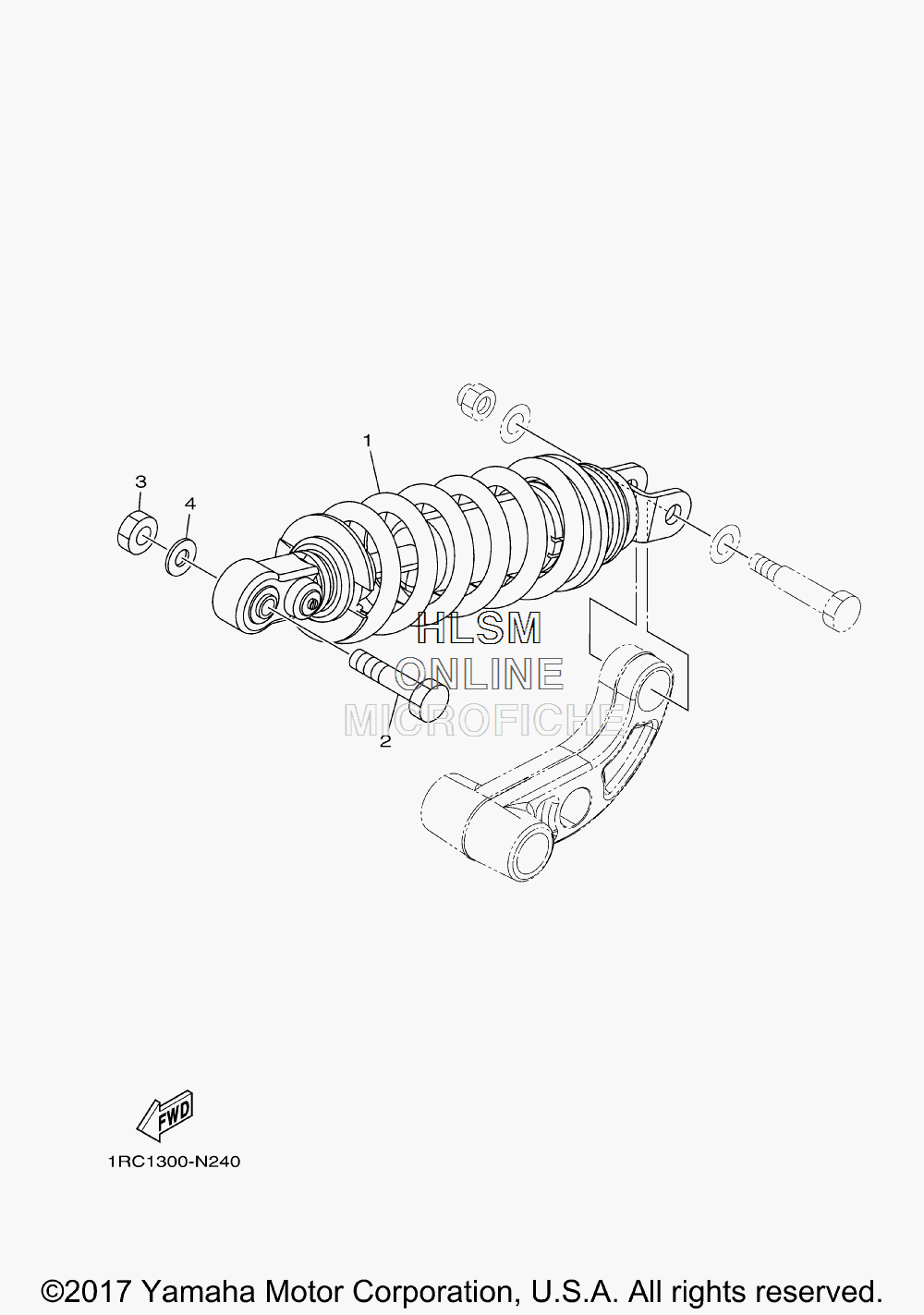

SUSPENSION - REAR SHOCK ABSORBER для Yamaha FZ09 - 2017 года выпуска
-
№АртикулНазвание
-
11RC-22210-11-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290101-10042-00 BOLTBOLT
-
395602-10100-00 NUT, UNUT, U
-
490201-101J1-00 WASHER, PLATEWASHER, PLATE
