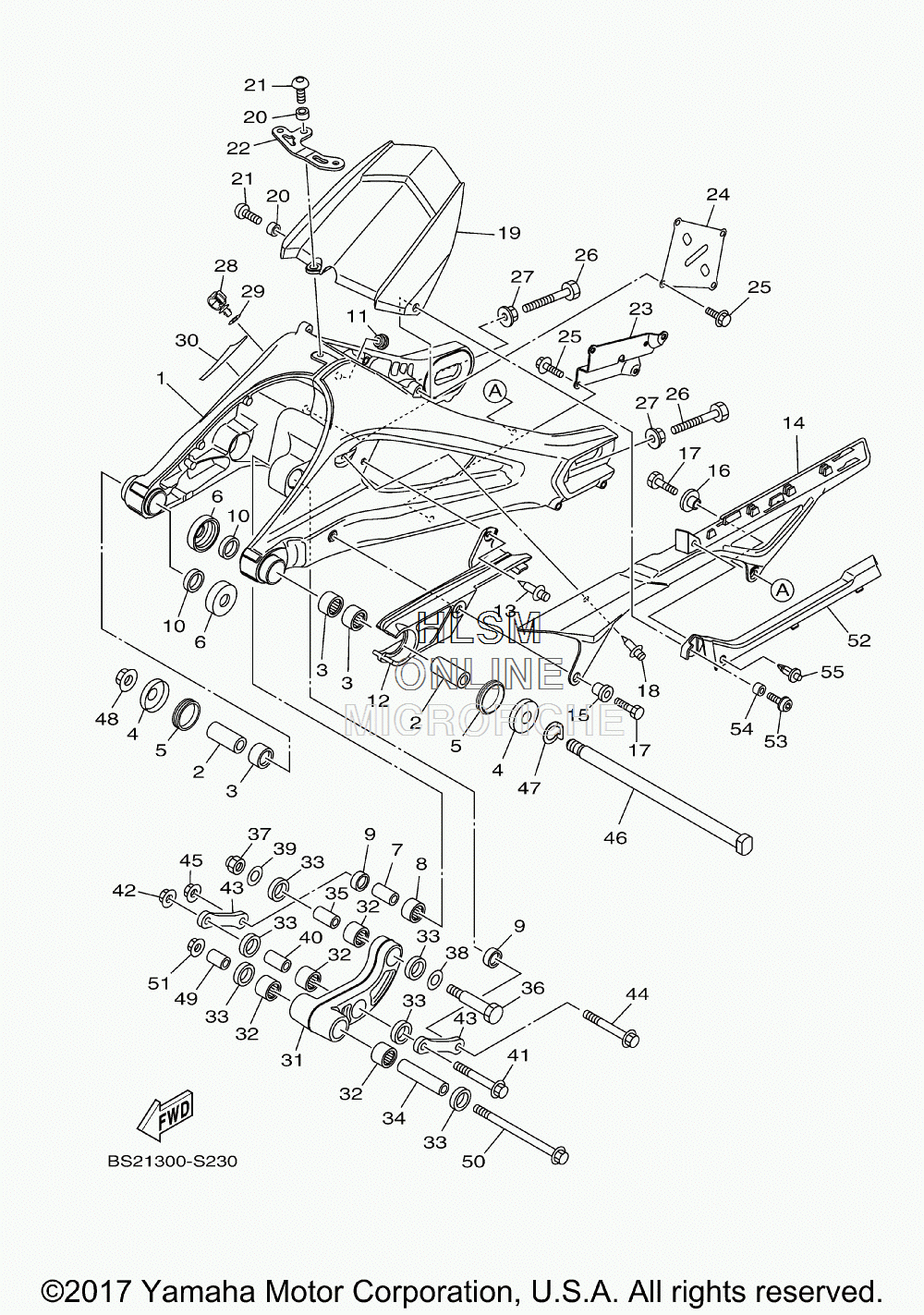

SUSPENSION - REAR ARM для Yamaha FZ09 - 2017 года выпуска
-
№АртикулНазвание
-
1B90-22110-01-00 REAR ARM COMP.REAR ARM COMP.
-
290380-16134-00 BUSH, SOLIDBUSH, SOLID
-
393317-22262-00 BEARINGBEARING
-
430X-2219X-00-00 COVERCOVER
-
593108-35004-00 OIL SEAL (35-41-8)OIL SEAL (35-41-8)
-
620S-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
790387-102R4-00 COLLARCOLLAR
-
893315-31758-00 BEARINGBEARING
-
993109-17071-00 OIL SEALOIL SEAL
-
1093106-22002-00 OIL SEALOIL SEAL
-
1190480-12012-00 GROMMETGROMMET
-
121RC-22151-00-00 SEAL, GUARDSEAL, GUARD
-
1390269-07007-00 RIVETRIVET
-
14BS2-22311-00-00 CASE, CHAINCASE, CHAIN
-
1590387-062X0-00 COLLARCOLLAR
-
1690387-06066-00 COLLARCOLLAR
-
1797002-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
1890269-07007-00 RIVETRIVET
-
191RC-21650-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
2090387-06022-00 COLLARCOLLAR
-
2190111-06161-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
22BS2-27425-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
231RC-2221A-00-00 BRACKET 1BRACKET 1
-
241RC-2221B-00-00 BRACKET 2BRACKET 2
-
2590105-06126-00 BOLT, FLANGEBOLT, FLANGE
-
2690101-08013-00 BOLTBOLT
-
2795702-08500-00 NUT, FLANGENUT, FLANGE
-
2890464-18002-00 CLAMPCLAMP
-
2990202-07164-00 WASHER, PLATEWASHER, PLATE
-
301RC-22358-00-00 SEAL 1SEAL 1
-
311RC-2217A-00-00 ARM, RELAYARM, RELAY
-
3293315-31758-00 BEARINGBEARING
-
3393109-17071-00 OIL SEALOIL SEAL
-
343GB-23448-00-00 SPACERSPACER
-
3590387-127W0-00 COLLARCOLLAR
-
3690109-10027-00 BOLTBOLT
-
3795612-10100-00 NUT, UNUT, U
-
3890201-13015-00 WASHER, PLATEWASHER, PLATE
-
3990201-10035-00 WASHER, PLATEWASHER, PLATE
-
4090387-102R4-00 COLLARCOLLAR
-
4190105-10210-00 BOLT, FLANGEBOLT, FLANGE
-
4295602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
431RC-2217M-00-00 ARM 1ARM 1
-
4490105-10210-00 BOLT, FLANGEBOLT, FLANGE
-
4595602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
4646X-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
471RC-22159-00-00 WASHER, SPRING LOWERWASHER, SPRING LOWER
-
4895602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4990387-10106-00 COLLARCOLLAR
-
5090105-10174-00 BOLT, FLANGEBOLT, FLANGE
-
5195602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
52BS2-2219X-00-00 COVERCOVER
-
5390149-06104-00 SCREWSCREW
-
5490387-06207-00 COLLARCOLLAR
-
5590269-07007-00 RIVETRIVET
