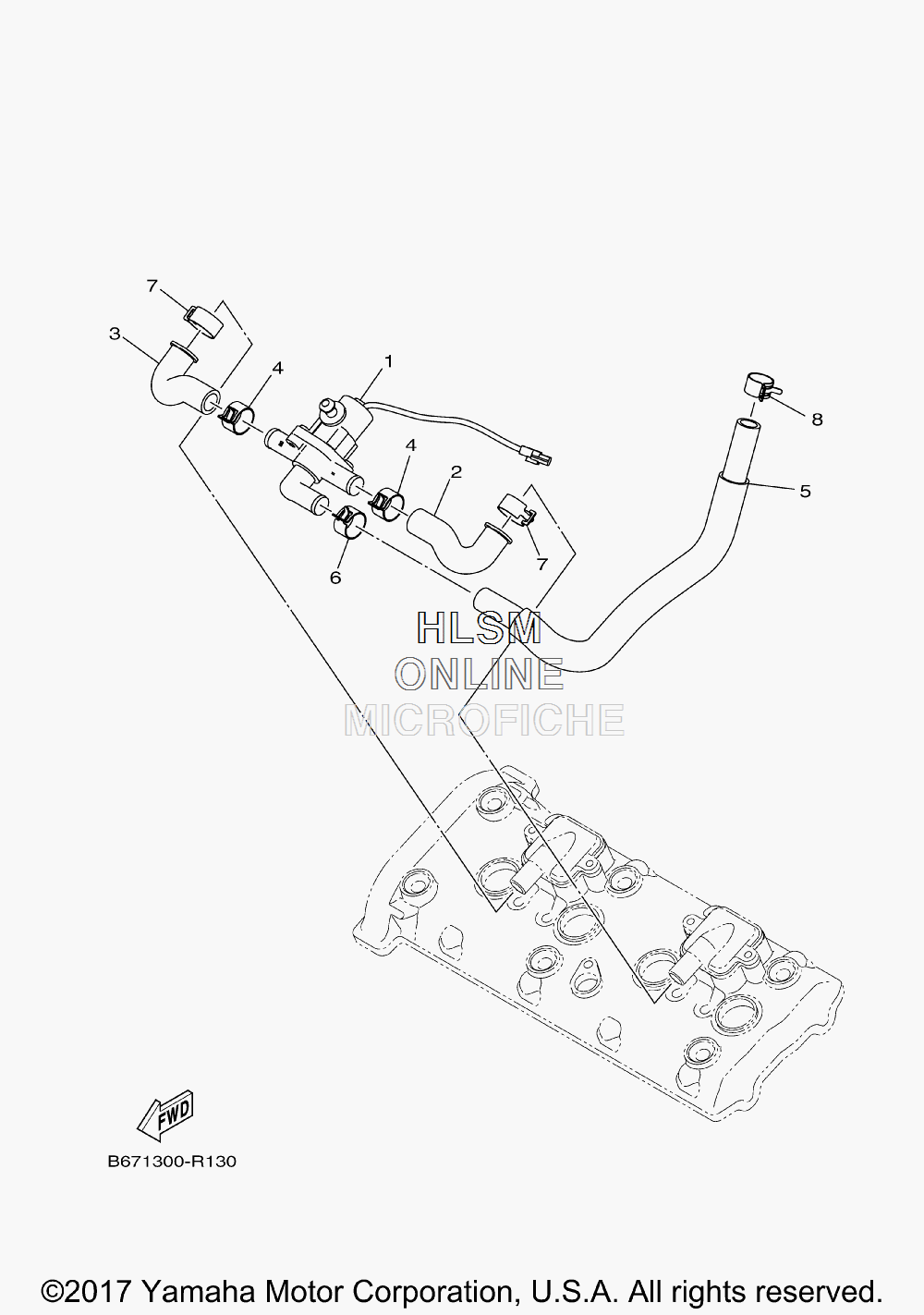

AIR INDUCTION SYSTEM для Yamaha FZ10 - 2017 года выпуска
-
№АртикулНазвание
-
14C8-14840-00-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
24C8-14881-01-00 HOSE, BEND 1HOSE, BEND 1
-
34C8-14882-01-00 HOSE, BEND 2HOSE, BEND 2
-
490467-18172-00 CLIPCLIP
-
5B67-14883-00-00 HOSE, BEND 3HOSE, BEND 3
-
690467-18172-00 CLIPCLIP
-
790467-180A0-00 CLIPCLIP
-
890467-17003-00 CLIPCLIP
